REAR COMBINATION LAMP
VX800 1992 (N) USA (E03)

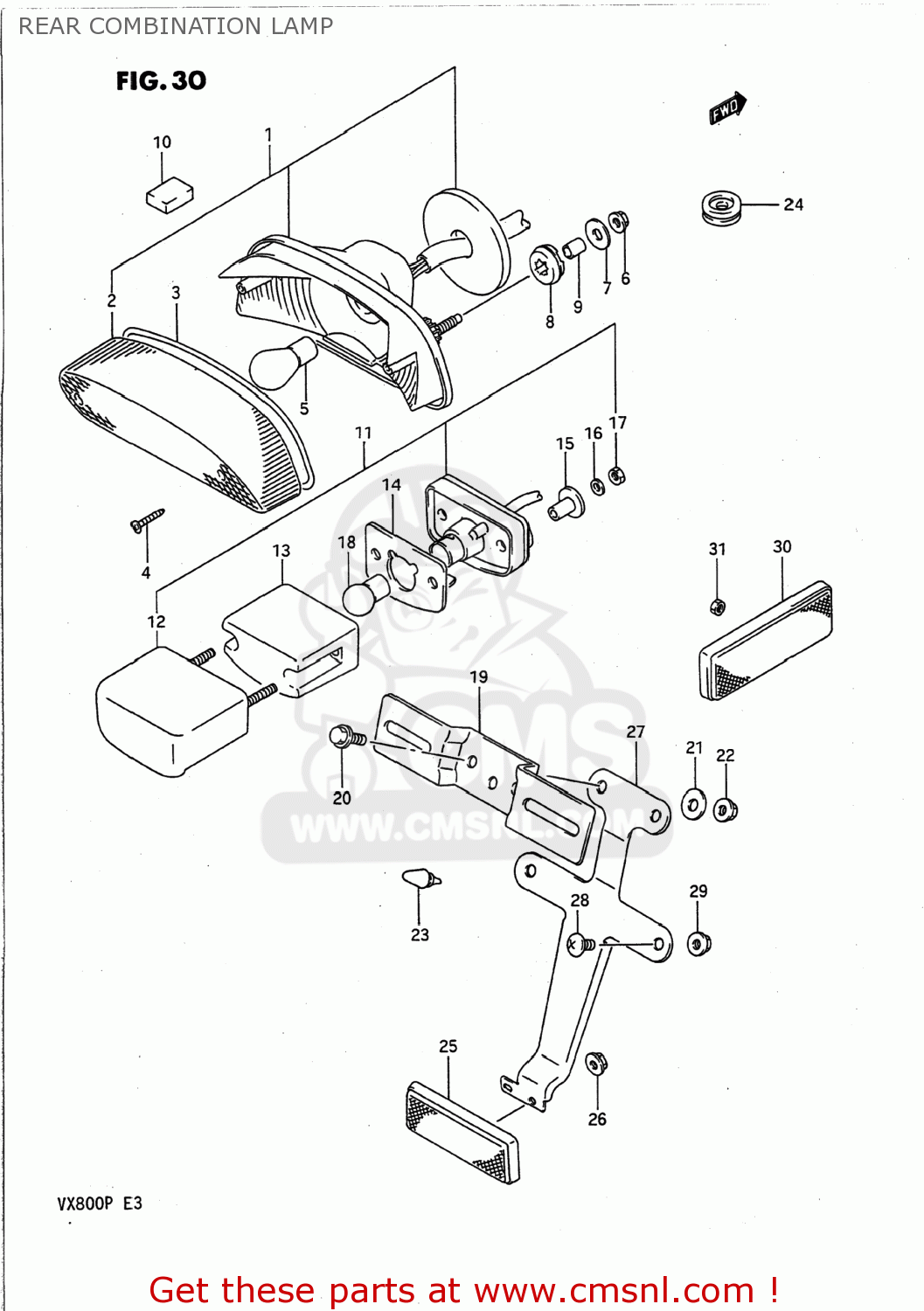

Rear combination lamp diagram VX800 1992 (N) USA (E03)
REAR COMBINATION LAMP VX800 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571045C10
ref: 1
LAMP ASSEMBLY,REAR COMBINATION
€ 64.00
2
3571238B30
ref: 2
LENS
€ 30.00
3
3571338B30
ref: 3
GASKET (NAS)
€ 6.50
4
3572338B30
ref: 4
03511-0416A
SCREW
€ 1.50
5
0947112083
ref: 5
09471-12128
BULB(12V21/5W)
€ 6.00
6
0831626066
ref: 6
08316-1006B
NUT
€ 2.00
7
0916006060
ref: 7
09160-06077
WASHER
€ 2.00
8
0932009018
ref: 8
CUSHION
€ 2.00
9
0918006114
ref: 9
09180-06307
SPACER (6.1X9X10)
€ 3.00
10
3573345C00
ref: 10
CUSHION,REAR COMBINATION LAMP
€ 4.00
11-1
3591045C10
ref: 11-1
35910-24B30-999
LAMP ASSEMBLY,LICENSE
€ 142.50
11-2
3591024B00999
ref: 11-2
35910-24B30-999
LAMP ASSEMBLY,LICENSE
€ 142.50
12-1
3591738A30
ref: 12-1
35917-38A20
COVER,LICENSE LAMP
€ 121.50
12-2
3591738A20
ref: 12-2
COVER,LICENSE LAMP
€ 121.50
13
3591238A30
ref: 13
LENS
€ 11.50
14
3591338A30
ref: 14
GASKET,LICENSE LAMP (NAS)
€ 2.00
15
3576624B30
ref: 15
SPACER
€ 2.00
16
0832121047
ref: 16
08321-0104A
WASHER,LOCK 4M
€ 2.00
17
0831011047
ref: 17
08310-00047
NUT
€ 2.00
18-1
0947112058
ref: 18-1
BULB
€ 4.00
18-2
0947112058
ref: 18-2
BULB
€ 4.00
19
3592700A10
ref: 19
BRACKET,LICENSE PLATE
€ 6.00
20
0151706164
ref: 20
01550-0616A
BOLT
€ 2.50
21
0916006059
ref: 21
09160-06088
WASHER,COVER,FRONT
€ 2.00
22
0831626066
ref: 22
08316-1006B
NUT
€ 2.00
23
0932105005
ref: 23
CUSHION
€ 7.00
24
0930807013
ref: 24
GROMMET
€ 3.50
25
3597000A21
ref: 25
35970-00A10
REFLECTOR ASSEMBLY,REAR
€ 22.00
26
0831626058
ref: 26
08316-2005A
NUT 5MM
€ 2.00
27
3597445C00
ref: 27
BRACKET,RR RR
€ 17.00
28
0214206125
ref: 28
02142-0612A
SCREW 6X12
€ 2.00
29
0831626065
ref: 29
08316-2006A
NUT
€ 2.00
30-1
3595043431
ref: 30-1
REFLEX REFLECTOR,FR SIDE
€ 12.00
30-2
3597000A21
ref: 30-2
35970-00A10
REFLECTOR ASSEMBLY,REAR
€ 22.00
31
0831022055
ref: 31
09140-05006
NUT 5MM
€ 2.00
