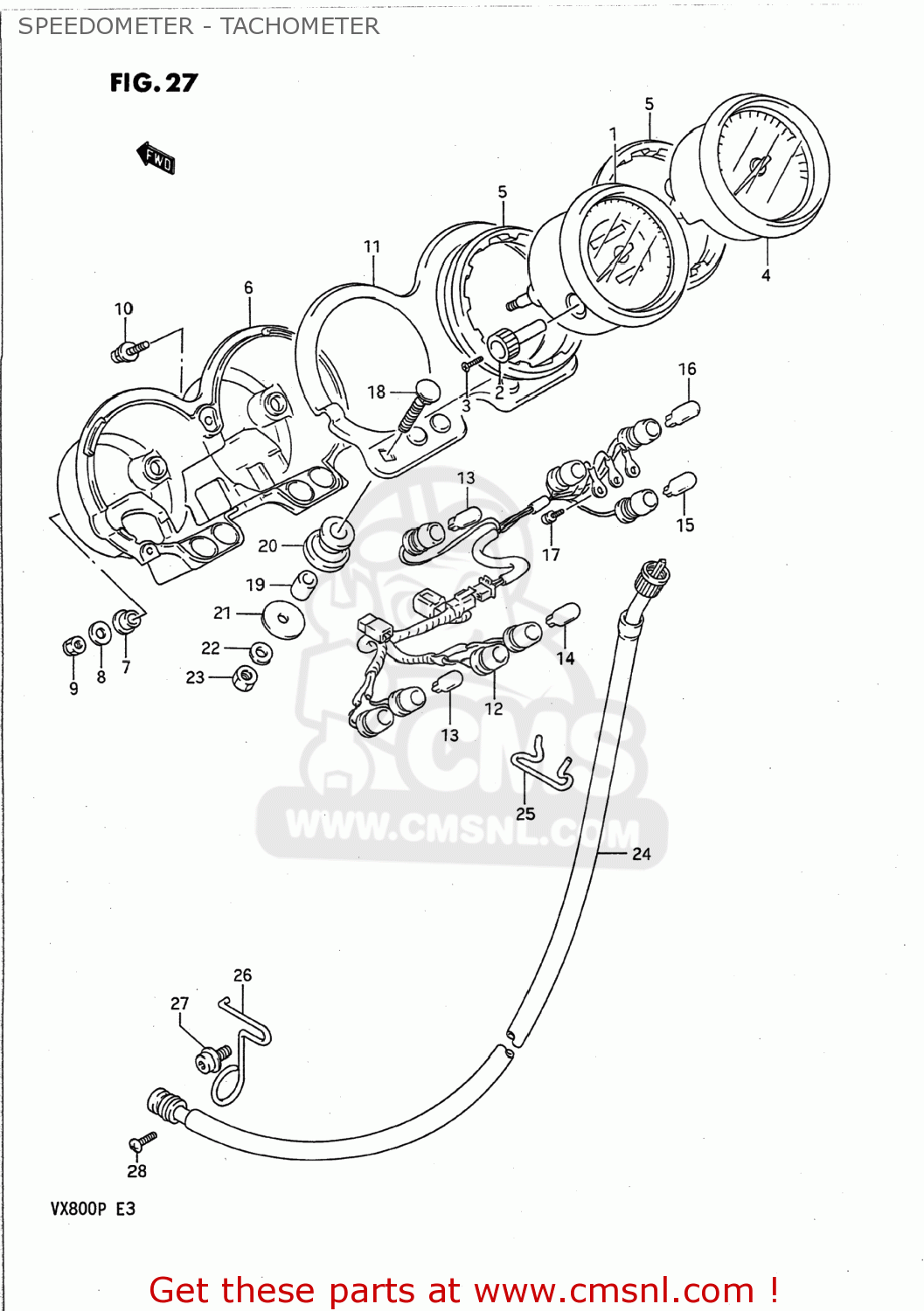

SPEEDOMETER - TACHOMETER - VX800 1992 (N) USA (E03)

ref

part #

description

quantity

1-1

3411045C20
ref: 1-1

SPEEDOMETER

€ 0.00

1-2

3411045C50
ref: 1-2

SPEEDOMETER

€ 351.50

2

3412401D20
ref: 2
34124-30B00

KNOB

€ 8.50

3

3498113A00
ref: 3
09139-02003

ROTOR,SPEED

€ 2.00

4-1

3421045C10
ref: 4-1

TACHOMETER

€ 452.50

4-2

3421045C40
ref: 4-2

TACHOMETER

€ 469.00

5

3428801D20
ref: 5

DAMPER

€ 7.00

6-1

3419345C10
ref: 6-1
34193-45C10-23W

COVER

€ 55.50

6-2

3419345C1023W
ref: 6-2

COVER

€ 55.50

7

3418901D20
ref: 7

CUSHION

€ 6.00

8

3418145C10
ref: 8
09160-05013

WASHER

€ 1.50

9

0831311057
ref: 9
08313-1005A

NUT

€ 1.50

10

0211274088
ref: 10
02112-7408B

SCREW

€ 3.50

11

3495001D30
ref: 11

BRACKET,METER

€ 148.50

12

3417045C10
ref: 12

SOCKET & HARNESS ASSEMBLY

€ 46.00

13

0947112028
ref: 13

BULB(12V3.4W,T10)

€ 3.50

14

0947112077
ref: 14

BULB(12V1.7W,T10,WB121)

€ 1.00

15

0947112103
ref: 15

BULB(12V3W,T6.5)

€ 2.50

16

0947112108
ref: 16

BULB(12V1.7W,T6.5)

€ 2.00

17

0211233106
ref: 17
02112-33103

SCREW

€ 1.50

18

0910706005
ref: 18

BOLT(6X34)

€ 3.00

19

0918006209
ref: 19
09180-06294

SPACER (6.1X10X15.7)

€ 4.00

20

3495631001
ref: 20

CUSHION,METER BRACKET

€ 4.50

21

0916006030
ref: 21
09160-06136

WASHER (6.5X29X1.6)

€ 2.50

22

0832121066
ref: 22
08321-0106A

WASHER,LOCK

€ 2.00

23

0831012066
ref: 23
08310-0006A

NUT

€ 2.00

24

3491045C00
ref: 24
34910-13A01

CABLE ASSEMBLY,SPEEDOMETER

€ 87.50

25

3493845C11
ref: 25

CLAMP,SPEEDOMETER CABLE

€ 4.50

26

3493811D00
ref: 26
34938-11D0V

CLAMP,SPEEDOMETER CABLE

€ 7.50

27-1

0910610059
ref: 27-1
09103-10195

BOLT

€ 2.00

27-2

0910310195
ref: 27-2

BOLT(10X12)

€ 2.00

28

0211205164
ref: 28

SCREW

€ 2.00
