BATTERY

VX800U 1994 (R)

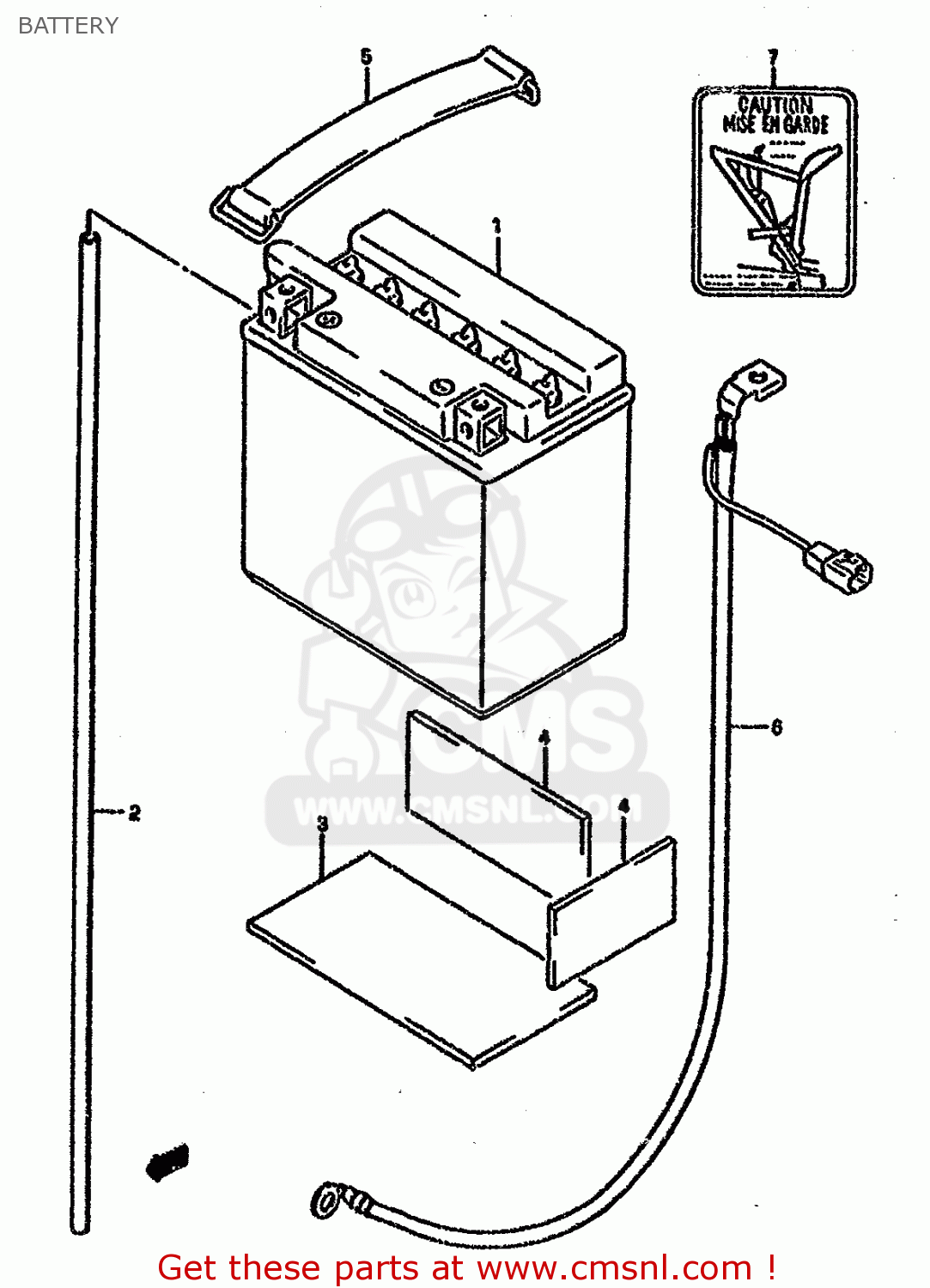

Battery diagram VX800U 1994 (R)

prices are in EUR

ref

part #

description

quantity

3361045C30
ref: 1

BATTERY ASSEMBLY (12V)

€ 119.50

3368016A10
ref: 2
-33680-31003

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 4
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

0946200007
ref: 5

BAND

€ 5.00

3386045C00
ref: 6

WIRE,BATTERY MINUS LEAD

€ 13.50

3369045C00
ref: 7

PLATE,BATTERY CAUTION

€ 3.00
