CYLINDER HEAD (FRONT)
VX800U 1994 (R)

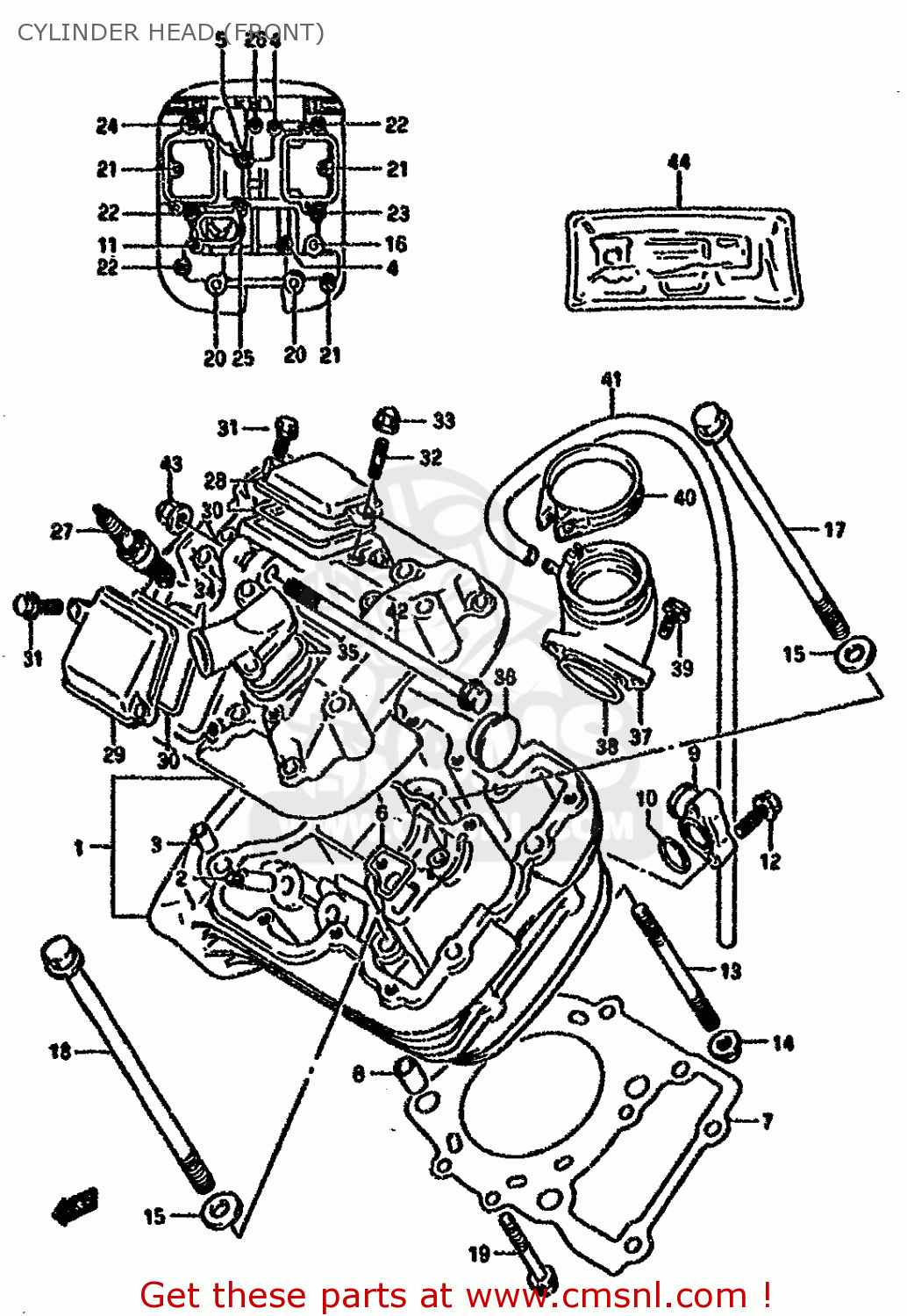

Cylinder head (front) diagram VX800U 1994 (R)
CYLINDER HEAD (FRONT) VX800U 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110145C00
ref: 1-1
MODEL L/M/N/P
HEAD ASSY,CYLINDER FRONT
€ 748.00
1-2
1110145C21
ref: 1-2
MODEL R/T
HEAD ASSY,CYLINDER FRONT
€ 912.50
2
1111538A71
ref: 2
GUIDE,VALVE
€ 18.50
3
0920611011
ref: 3
PIN(11X14)
€ 6.00
4-1
0910306101
ref: 4-1
MODEL L/M/N/P
BOLT(6X50)
€ 2.00
4-2
0910306502
ref: 4-2
MODEL R/T
BOLT (6X50)
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
€ 2.50
6
1112338A00
ref: 6
GASKET,CYLINDER HEAD WATER (NAS)
€ 2.50
7
1114145C00
ref: 7
GASKET,CYLINDER HEAD FR (NAS)
€ 51.50
8
0421113189
ref: 8
PIN
€ 2.50
9
1116945C10
ref: 9
-11169-45C00
UNION,CYLINDER HEAD WATER
€ 28.50
10
0928018004
ref: 10
O RING(D:2.4,ID:17.8)
€ 5.50
11-1
0155006207
ref: 11-1
MODEL L/M/N/P
BOLT
€ 2.50
11-2
0155006203
ref: 11-2
MODEL R/T
BOLT
€ 2.50
12-1
0154706257
ref: 12-1
MODEL L/M/N/P
BOLT
€ 2.50
12-2
0154706253
ref: 12-2
MODEL R/T
SCREW
€ 2.50
13
0910808144
ref: 13
BOLT,STUD
€ 4.50
14-1
0831610087
ref: 14-1
MODEL L/M/N/P
NUT
€ 2.50
14-2
0831610083
ref: 14-2
MODEL R/T
NUT
€ 3.00
15
0916010039
ref: 15
WASHER(10.5X22X2.3)
€ 2.50
16-1
0910308040
ref: 16-1
MODEL L/M/N/P
BOLT(8X140)
€ 4.00
16-2
0910308502
ref: 16-2
MODEL R/T
BOLT (8X140)
€ 3.00
17
0910310133
ref: 17
BOLT(10X155)
€ 7.50
18
0910310134
ref: 18
BOLT(10X165)
€ 7.50
19-1
0155006407
ref: 19-1
MODEL L/M/N/P
BOLT
€ 2.50
19-2
0155006403
ref: 19-2
MODEL R/T
BOLT
€ 2.00
20
0910308501
ref: 20
BOLT 8X235
€ 9.00
21-1
0155006257
ref: 21-1
MODEL L/M/N/P
BOLT
€ 2.50
21-2
0155006253
ref: 21-2
MODEL R/T
BOLT
€ 2.50
22-1
0155006307
ref: 22-1
MODEL L/M/N/P
BOLT
€ 2.00
22-2
0155006303
ref: 22-2
MODEL R/T
BOLT
€ 2.50
23-1
0712006307
ref: 23-1
MODEL L/M/N/P
BOLT
€ 2.50
23-2
0712006303
ref: 23-2
MODEL R/T
BOLT
€ 3.00
24-1
0155006407
ref: 24-1
MODEL L/M/N/P
BOLT
€ 2.50
24-2
0155006403
ref: 24-2
MODEL R/T
BOLT
€ 2.00
25
0910306102
ref: 25
BOLT(6X55)
€ 2.50
26-1
0910306101
ref: 26-1
MODEL L/M/N/P
BOLT(6X50)
€ 2.00
26-2
0910306502
ref: 26-2
MODEL R/T
BOLT (6X50)
€ 2.00
27-1
0948200334
ref: 27-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
27-2
0948200335111
ref: 27-2
SPARK PLUG X24EPR-U9
€ 4.00
27-3
0948200354
ref: 27-3
OPT
PLUG,SPARK(DPR7EA-9)
€ 4.00
27-4
0948200355111
ref: 27-4
OPT
SPARK PLUG X22EPR-U9
€ 4.00
27-5
0948200330
ref: 27-5
OPT
PLUG,SPARK(DPR9EA-9)
€ 4.00
27-6
0948200331111
ref: 27-6
OPT
SPARK PLUG X27EPR-U9
€ 4.00
28-1
1117545C00
ref: 28-1
MODEL L/M/N
CAP,INSPECTION,INTAKE
€ 10.00
28-2
1117538A10
ref: 28-2
MODEL P/R/T
CAP,INSP.INT
€ 14.50
29-1
1117645C00
ref: 29-1
MODEL L/M/N
CAP,INSPECTION,EXHAUST
€ 14.50
29-2
1117638A10
ref: 29-2
MODEL P/R/T
CAP,INSPECTION,EXHAUST
€ 14.50
30
1117738A00
ref: 30
GASKET,INSPECTION CAP (NAS)
€ 5.00
31-1
0154706207
ref: 31-1
MODEL L/M/N/P
BOLT
€ 2.50
31-2
0154706203
ref: 31-2
MODEL R/T
SCREW
€ 2.50
32
0142106168
ref: 32
STUD 6X16
€ 2.00
33-1
0831320067
ref: 33-1
MODEL L/M/N/P
NUT
€ 2.00
33-2
0831320063
ref: 33-2
MODEL R/T
NUT
€ 2.00
34-1
1118145C00
ref: 34-1
MODEL L/M/N
UNION,WATER OUTLET
€ 33.00
34-2
1118145C10
ref: 34-2
MODEL P/R/T
UNION,WATER OUTLET
€ 33.00
35
1118238A00
ref: 35
GASKET,WATER OUTLET UNION (NAS)
€ 2.00
36
0924130004
ref: 36
PLUG(OD:30)
€ 6.50
37-1
1311045C00
ref: 37-1
MODEL L/M/N/P/R
PIPE,INTAKE
€ 98.00
37-2
1311045C01
ref: 37-2
MODEL T
PIPE COMP,INTAKE,FRONT
€ 98.00
38
0928040003
ref: 38
O-RING (D:2.4 ID:39.7)
€ 3.50
39
0155006163
ref: 39
BOLT
€ 2.50
40
0940252501
ref: 40
-13170-05A00
CLAMP
€ 9.00
41
093525090300B
ref: 41
L:2000-730
HOSE(5X9X2000)
€ 28.50
42
0910308268
ref: 42
BOLT,ENGINE MOUNTING (8X150)
€ 4.50
43-1
0915908064
ref: 43-1
MODEL L/M/N/P
NUT (8MM)
€ 7.00
43-2
0915908074
ref: 43-2
MODEL R/T
NUT
€ 7.00
44-1
1140245814
ref: 44-1
GASKET SET (NAS)
€ 272.50
44-2
1140245823
ref: 44-2
E18
GASKET SET
€ 203.50
