FRAME COVER (MODEL R/T)
VX800U 1994 (R)

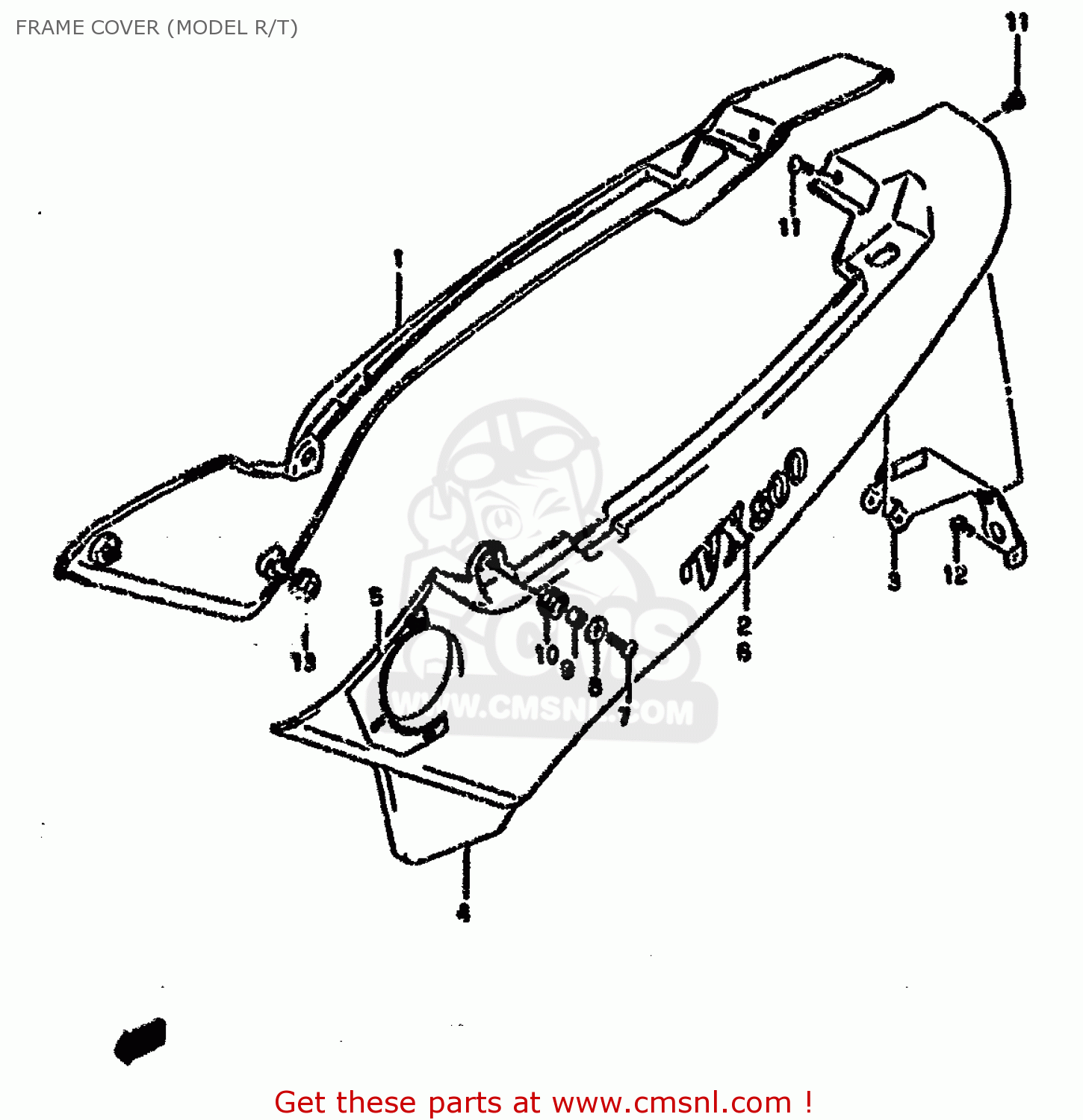

Frame cover (model r/t) diagram VX800U 1994 (R)
FRAME COVER (MODEL R/T) VX800U 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1-1
4711045C001TU
ref: 1-1
MODEL R
COVER,FRAME,R.
€ 240.50
1-2
4711045C0022U
ref: 1-2
MODEL R
COVER ,FRAME ,
€ 240.50
1-3
4711045C0133J
ref: 1-3
COVER,FRAME RH (BLACK)
€ 274.50
1-4
4711045C011TU
ref: 1-4
MODEL T
COVER,FRAME,R
€ 240.50
1-5
4711045C0122U
ref: 1-5
MODEL T
COVER,FRAME,R
€ 240.50
2-1
6813145C00C3H
ref: 2-1
FOR 1TU
EMBLEM
€ 23.50
2-2
6813145C00A6T
ref: 2-2
FOR 22U
EMBLEM,FRAME COVER
€ 25.50
2-3
6813145C00B34
ref: 2-3
FOR 33J
EMBLEM,FRAME COVER
€ 25.50
3
4713045C00
ref: 3
BRACKET COMP,FRAME COVER
€ 40.50
4-1
4721045C601TU
ref: 4-1
MODEL R
COVER,FRAME,L.
€ 251.50
4-2
4721045C6022U
ref: 4-2
MODEL R
COVER ,FRAME ,
€ 284.00
4-3
4721045C6133J
ref: 4-3
COVER,FRAME LH (BLACK)
€ 274.50
4-4
4721045C611TU
ref: 4-4
MODEL T
COVER,FRAME,L
€ 251.50
4-5
4721045C6122U
ref: 4-5
MODEL T
COVER,FRAME,L
€ 284.00
5
4791345C10064
ref: 5
MODEL R
LABEL (FUEL COCK)
€ 9.00
6-1
6813145C00C3H
ref: 6-1
FOR 1TU
EMBLEM
€ 23.50
6-2
6813145C00A6T
ref: 6-2
FOR 22U
EMBLEM,FRAME COVER
€ 25.50
6-3
6813145C00B34
ref: 6-3
FOR 33J
EMBLEM,FRAME COVER
€ 25.50
7-1
0214206203
ref: 7-1
MODEL R
SCREW
€ 2.00
7-2
0913606081
ref: 7-2
MODEL T
SCREW(6X20)
€ 3.00
8
0916006056
ref: 8
MODEL R
WASHER(6.5X18X1)
€ 2.00
9
0918006152
ref: 9
SPACER
€ 3.00
10
0932009016
ref: 10
CUSHION
€ 2.50
11
0214204103
ref: 11
SCREW
€ 1.50
12
0354104103
ref: 12
SCREW
€ 1.50
13
0932008018
ref: 13
CUSHION
€ 4.00
9-1
4721045C7033J
ref: 9-1
E2,E4
COVER COMP,FRAME,LEFT
€ 251.50
9-2
4721045C7024D
ref: 9-2
MODEL N E2,E4
COVER,FRAME LH (MAROON)
€ 251.50
9-3
4721045C701HU
ref: 9-3
MODEL N E2,E4
COVER,FRAME,LEFT
€ 251.50
9-4
4721045C7022U
ref: 9-4
MODEL P E2,E4
COVER COMP,FRAME,LEFT
€ 251.50
10
4791345C10064
ref: 10
E2,E4
LABEL (FUEL COCK)
€ 9.00
11-1
6813145C10F68
ref: 11-1
E2,E4 FOR 33J
EMBLEM,FRAME COVER
€ 31.00
11-2
6813145C10B32
ref: 11-2
E2,E4 FOR 24D
EMBLEM
€ 24.00
11-3
6813145C10L95
ref: 11-3
E2,E4 FOR 1HU
EMBLEM,FRAME COVER
€ 0.00
11-4
6813145C10A6T
ref: 11-4
E2,E4 FOR 22U
EMBLEM,FRAME COVER
€ 24.00
12
0214206205
ref: 12
SCREW, CENTER
€ 2.00
13
0916006056
ref: 13
WASHER(6.5X18X1)
€ 2.00
14
0918006152
ref: 14
SPACER
€ 3.00
15
0932009016
ref: 15
CUSHION
€ 2.50
16
0214204105
ref: 16
SCREW
€ 1.50
17
0354104105
ref: 17
SCREW
€ 1.50
18
0932008018
ref: 18
CUSHION
€ 4.00
