COWLING (OPTIONAL)
VX800U 1994 (R)

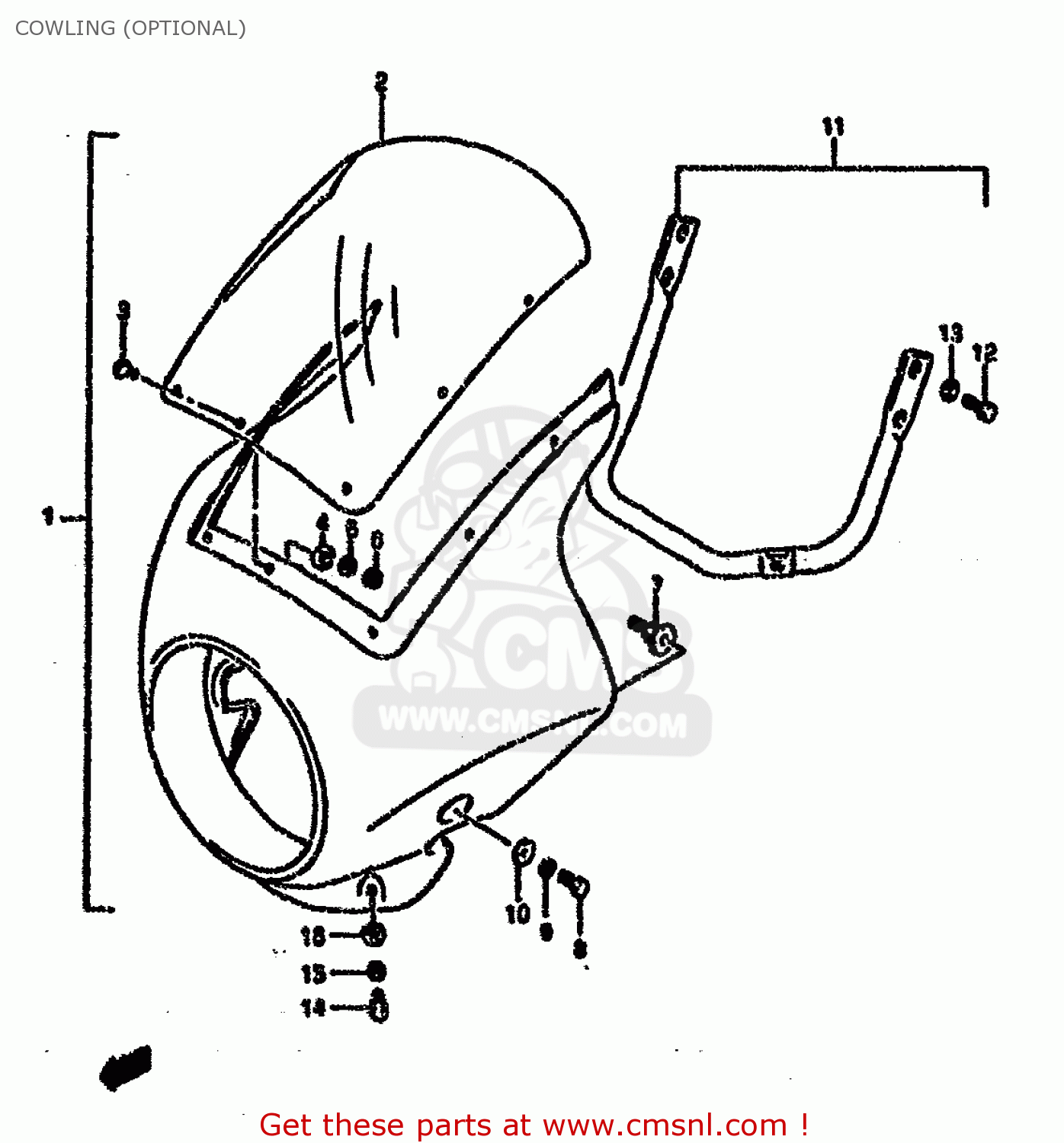

Cowling (optional) diagram VX800U 1994 (R)
COWLING (OPTIONAL) VX800U 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1-1
9440245C5024D
ref: 1-1
MODEL L/N
UPPER COWLING SET (MAROON)
€ 628.50
1-2
9440245C5024V
ref: 1-2
MODEL L
UPPER COWLING SET (BLUE)
€ 628.50
1-3
9440245C500FP
ref: 1-3
MODEL M
UPPER COWLING SET
€ 509.00
1-4
9440245C5019A
ref: 1-4
MODEL M
UPPER COWLING SET,ANTA
€ 509.00
1-5
9440245C5033J
ref: 1-5
MODEL L/M/N/P/R/T
UPPER COWLING SET (BLACK)
€ 509.00
1-6
9440245C501HU
ref: 1-6
MODEL N
COVER SET,UPPER COWLING (P
€ 602.50
1-7
9440245C5022U
ref: 1-7
MODEL P/R/T
UPPER COWLING SET,MAROON
€ 628.50
1-8
9440245C501TU
ref: 1-8
MODEL R/T
COWLING ASSY (PURPLE)
€ 1,062.00
2
9443245C50
ref: 2
SCREEN,COWLING
€ 214.00
3
0214204103
ref: 3
SCREW
€ 1.50
4
0832201043
ref: 4
WASHER
€ 5.00
5
0832101043
ref: 5
WASHER,LOCK
€ 2.00
6
0831000043
ref: 6
NUT
€ 2.00
7
9474101D50
ref: 7
BOLT,COWLING HEADLAMP
€ 10.50
8-1
0120406167
ref: 8-1
MODEL L/M/N/P/R
BOLT
€ 2.00
8-2
0157006167
ref: 8-2
MODEL T
BOLT
€ 2.50
9
0832101067
ref: 9
MODEL L/M/N/P/R
WASHER,LOCK
€ 2.50
10
0916006084
ref: 10
WASHER(6.5X18X1.6)
€ 2.00
11
9451001D50
ref: 11
BRACE,UPPER COWLING
€ 151.00
12-1
0120406167
ref: 12-1
MODEL L/M/N/P/R
BOLT
€ 2.00
12-2
0155006167
ref: 12-2
MODEL T
BOLT
€ 1.50
13
0832201067
ref: 13
MODEL L/M/N/P/R
WASHER
€ 2.00
14-1
0120406127
ref: 14-1
MODEL L/M/N/P/R
BOLT
€ 1.50
14-2
0157006127
ref: 14-2
MODEL T
BOLT
€ 2.50
15
0832101067
ref: 15
MODEL L/M/N/P/R
WASHER,LOCK
€ 2.50
16
0832201067
ref: 16
WASHER
€ 2.00
