STARTER CLUTCH

VX800U 1994 (R)

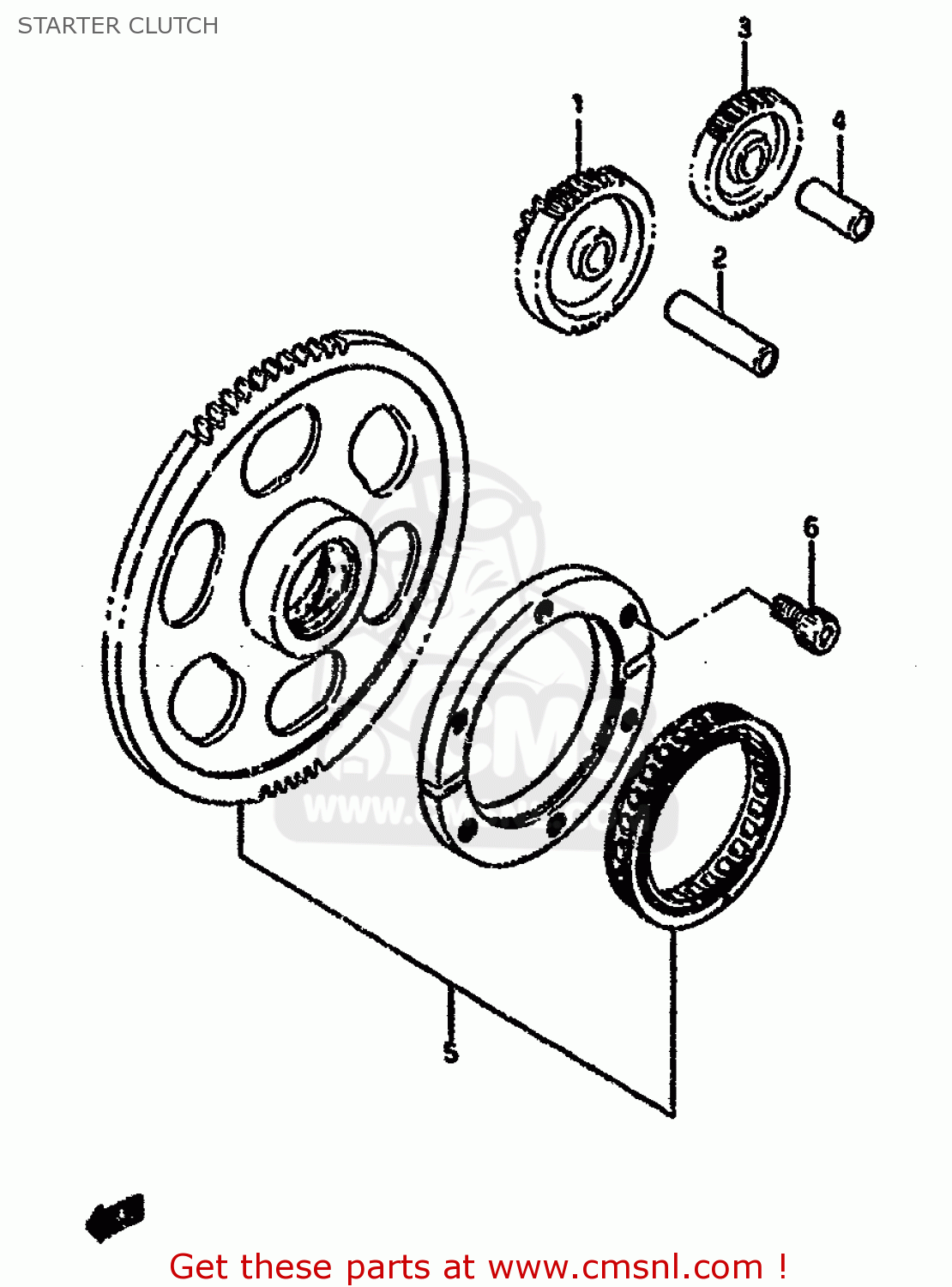

Starter clutch diagram VX800U 1994 (R)

STARTER CLUTCH VX800U 1994 (R)

STARTER CLUTCH VX800U 1994 (R)

prices are in EUR

ref

part #

description

quantity

1

1261138A01
ref: 1
NT:12/41

GEAR,STARTER IDLE NO.1

€ 57.50

2-1

0920610003
ref: 2-1
MODEL L/M/N/P/R

PIN

€ 9.00

2-2

0920210008
ref: 2-2
MODEL T

PIN,10X43

€ 9.00

3

1261138A11
ref: 3
NT:32

GEAR,STARTER IDLE NO.2

€ 39.50

4

0920210006
ref: 4

PIN

€ 6.50

5

1260038831
ref: 5

CLUTCH SET,STARTER

€ 307.00

6

0713008163
ref: 6

BOLT

€ 3.00
