FRONT MASTER CYLINDER (MODEL P/R/T)

VX800U 1994 (R)

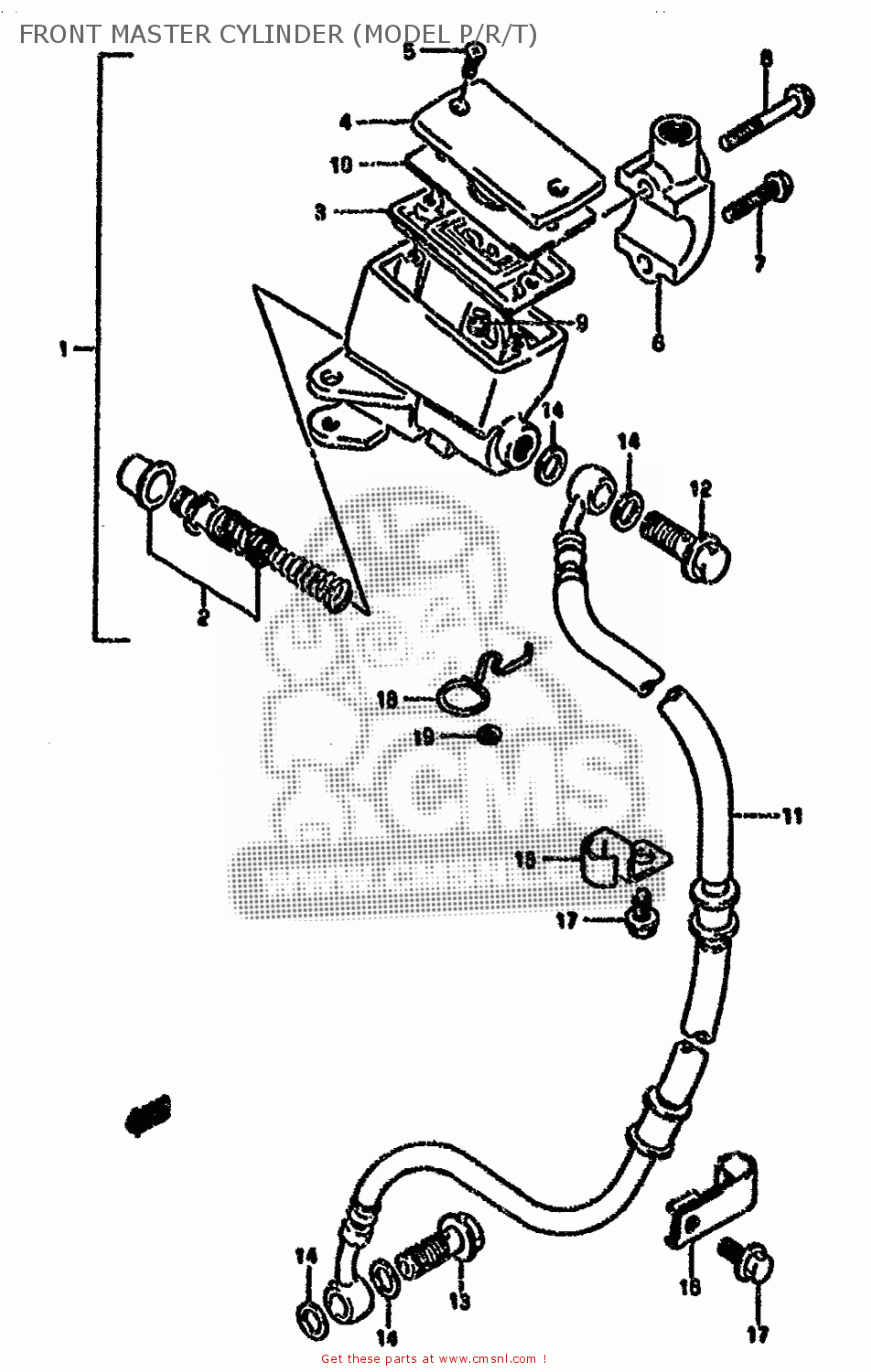

Front master cylinder (model p/r/t) diagram VX800U 1994 (R)

FRONT MASTER CYLINDER (MODEL P/R/T) VX800U 1994 (R)
FRONT MASTER CYLINDER (MODEL P/R/T) VX800U 1994 (R)
FRONT MASTER CYLINDER (MODEL P/R/T) VX800U 1994 (R)
prices are in EUR
ref
part #
description
quantity
1
5960045C20
ref: 1
CYLINDER ASSY,FR MASTER
€ 180.00
2
5960004810
ref: 2
PISTON/CUP SET
5960004810
€ 37.50
3
5966749460
ref: 3
5966749460
4
5966945C20
ref: 4
CAP
5966945C20
€ 35.00
5
6968949300
ref: 5
SCREW
6968949300
€ 1.50
6
5967145C10
ref: 6
HOLDER
5967145C10
€ 15.50
7
5967519C00
ref: 7
BOLT(6X25)
5967519C00
€ 3.00
8
5967519C10
ref: 8
BOLT(6X38)
5967519C10
€ 4.00
9
5966448B00
ref: 9
PROTECTOR
5966448B00
€ 8.00
10
5966841C00
ref: 10
PLATE,DIAPHRAGM
5966841C00
€ 8.00
11
5948045C10
ref: 11
HOSE,FR BRAKE
€ 97.50
12-1
0936010017
ref: 12-1
MODEL P
BOLT UNION
0936010017
€ 6.50
12-2
0936010039
ref: 12-2
MODEL R/T
BOLT UNION
€ 6.50
13-1
0936010033
ref: 13-1
MODEL P
BOLT 10X1.25X24
€ 5.00
13-2
0936010040
ref: 13-2
MODEL R/T
BOLT UNION
0936010040
€ 5.00
14
0916110009
ref: 14
WASHER(10X15X1.5)
0916110009
€ 2.00
15
5926845C00
ref: 15
CLAMP,FR BRAKE HOSE NO.1
5926845C00
€ 7.00
16
5926801D10
ref: 16
CLAMP,FRONT BRAKE NO.2
5926801D10
€ 6.00
17-1
0151706125
ref: 17-1
MODEL P
BOLT 6X12
0151706125
€ 2.50
17-2
0155006123
ref: 17-2
MODEL R/T
BOLT
0155006123
€ 2.50
18
5926845C10
ref: 18
GUIDE,FRONT BRAKE HOSE
€ 7.50
19-1
0832221064
ref: 19-1
MODEL P
WASHER
0832221064
€ 2.00
19-2
0832201063
ref: 19-2
MODEL R/T
WASHER
0832201063
€ 2.00
