VX800U 1994 (R)

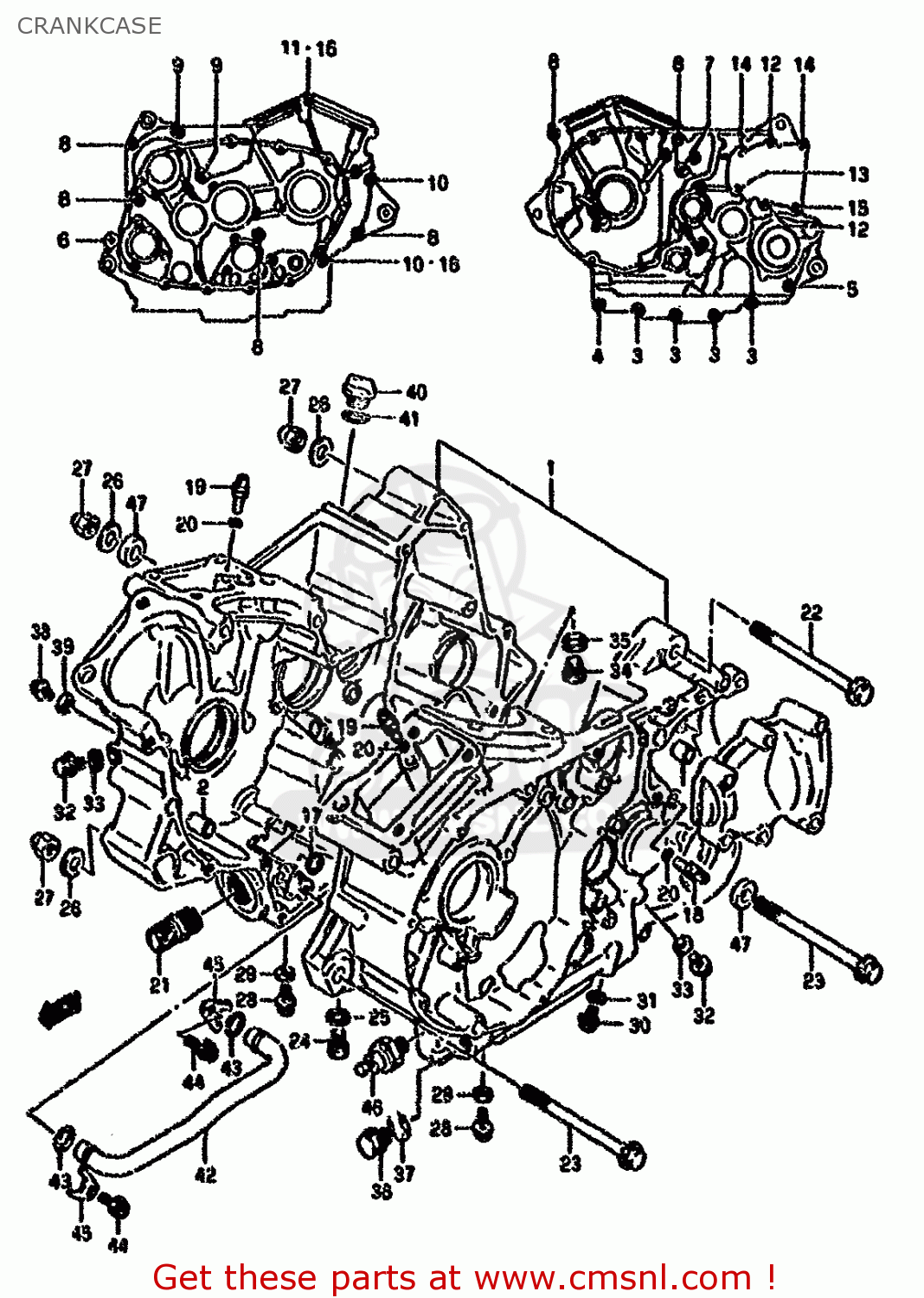

Crankcase diagram VX800U 1994 (R)
CRANKCASE VX800U 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130045861
ref: 1-1
MODEL L/M/N/P
CRANKCASE SET
€ 2,587.00
1-2
1130045890
ref: 1-2
MODEL R
CRANKCASE SET
€ 2,587.00
1-3
1130045892
ref: 1-3
MODEL T
CRANKCASE SET
€ 2,587.00
2
0920611005
ref: 2
PIN (11X20)(SUS)
€ 6.50
3-1
0155006407
ref: 3-1
MODEL L/M/N/P
BOLT
€ 2.50
3-2
0155006403
ref: 3-2
MODEL R/T
BOLT
€ 2.00
4-1
0155008357
ref: 4-1
MODEL L/M/N/P
BOLT
€ 3.50
4-2
0155008353
ref: 4-2
MODEL R/T
BOLT
€ 3.50
5-1
0155008557
ref: 5-1
MODEL L/M/N/P
BOLT
€ 3.00
5-2
0155008553
ref: 5-2
MODEL R/T
BOLT
€ 3.00
6
0155008607
ref: 6
BOLT
€ 3.50
7-1
0151708758
ref: 7-1
MODEL L/M/N/P
BOLT 8X75
€ 3.50
7-2
0155008753
ref: 7-2
MODEL R/T
BOLT
€ 3.50
8
0155008957
ref: 8
BOLT
€ 3.50
9
0910308109
ref: 9
BOLT(8X120)
€ 3.50
10-1
0910308097
ref: 10-1
MODEL L/M/N/P
BOLT(8X105)
€ 3.00
10-2
0910308133
ref: 10-2
MODEL R/T
BOLT(8X105)
€ 4.50
11
0910308096
ref: 11
BOLT 8X160
€ 10.00
12-1
0155008407
ref: 12-1
MODEL L/M/N/P
BOLT
€ 3.50
12-2
0155008403
ref: 12-2
MODEL R/T
BOLT
€ 3.50
13-1
0155008457
ref: 13-1
MODEL L/M/N/P
BOLT
€ 4.00
13-2
0155008453
ref: 13-2
MODEL R/T
BOLT
€ 3.00
14
0155008557
ref: 14
BOLT
€ 3.00
15
0155008657
ref: 15
BOLT
€ 3.00
16
0916808008
ref: 16
GASKET 8.2X14X1 (NAS)
€ 1.00
17
0928012009
ref: 17
O RING(D:1.9,ID:12.6)
€ 2.50
18
0949320014
ref: 18
JET,OIL GALLERY
€ 8.00
19
0949328010
ref: 19
JET,AIR(14)
€ 10.50
20
0928004004
ref: 20
O RING(D:1.2,ID:4)
€ 2.00
21
1659106B00
ref: 21
UNION,OIL STAND
€ 6.00
22-1
0910310237
ref: 22-1
MODEL L/M/N/P-09103-
BOLT(10X130)
€ 5.50
22-2
0910310122
ref: 22-2
MODEL R/T
BOLT(10X130)
€ 9.50
23
0910310224
ref: 23
BOLT,ENGINE MOUNTING (10X170)
€ 7.00
24
0150012203
ref: 24
BOLT
€ 3.00
25
0916812002
ref: 25
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
26-1
0832211104
ref: 26-1
MODEL L/M/N/P
WASHER 10MM
€ 2.50
26-2
0832201103
ref: 26-2
MODEL R/T
WASHER
€ 2.50
27
0915910052
ref: 27
NUT
€ 8.50
28-1
0155008127
ref: 28-1
MODEL L/M/N/P
BOLT
€ 3.50
28-2
0155008123
ref: 28-2
MODEL R/T
BOLT
€ 3.50
29
0916808015
ref: 29
GASKET(8.2X14X1).6 (NAS)
€ 2.50
30-1
0924710001
ref: 30-1
MODEL L
PLUG
€ 3.00
30-2
0924710008
ref: 30-2
MODEL M/N/P/R/T
PLUG(10X12)
€ 3.00
31
0916810002
ref: 31
GASKET(10X14X3.6) (NAS)
€ 2.00
32-1
0155006107
ref: 32-1
MODEL L/M/N/P
BOLT
€ 2.50
32-2
0155006103
ref: 32-2
MODEL R/T
BOLT
€ 2.50
33-1
0916806023
ref: 33-1
MODEL L/M/N/P
GASKET(5.8X13X1.2) (NAS)
€ 2.00
33-2
0916806024
ref: 33-2
MODEL R/T
GASKET(5.8X11X1.2) (NAS)
€ 2.00
34
0924816008
ref: 34
PLUG
€ 4.00
35
0916816002
ref: 35
GASKET(16X22X2) (NAS)
€ 2.00
36-1
0924714012
ref: 36-1
MODEL L/M/N
PLUG (14X12)
€ 3.50
36-2
0924714001
ref: 36-2
MODEL P
PLUG
€ 5.00
36-3
0924714026
ref: 36-3
MODEL R/T
PLUG(14X12)
€ 3.50
37
0916814002
ref: 37
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
38-1
0712008127
ref: 38-1
MODEL L/M/N/P
BOLT
€ 2.50
38-2
0712008123
ref: 38-2
MODEL R/T
PLUG
€ 2.50
39
0916808015
ref: 39
GASKET(8.2X14X1).6 (NAS)
€ 2.50
40
0925920017
ref: 40
PLUG
€ 6.50
41
0928017003
ref: 41
O RING(D:3.1,ID:16.8)
€ 2.00
42
1145138A00
ref: 42
PIPE,OIL GALLERY
€ 13.50
43
0928015008
ref: 43
O RING(D:3.1,ID:14.8)
€ 1.50
44-1
0712006127
ref: 44-1
MODEL L/M/N/P
BOLT
€ 3.00
44-2
0712006123
ref: 44-2
MODEL R/T
BOLT
€ 3.50
45
1146138A00
ref: 45
CLAMP,OIL PIPE
€ 1.50
46
3782033D00
ref: 46
-37820-33200
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
47
4193245C00
ref: 47
SPACER,ENG MOUNT NO.2
€ 5.00
