STEERING STEM
VX800U 1994 (R)

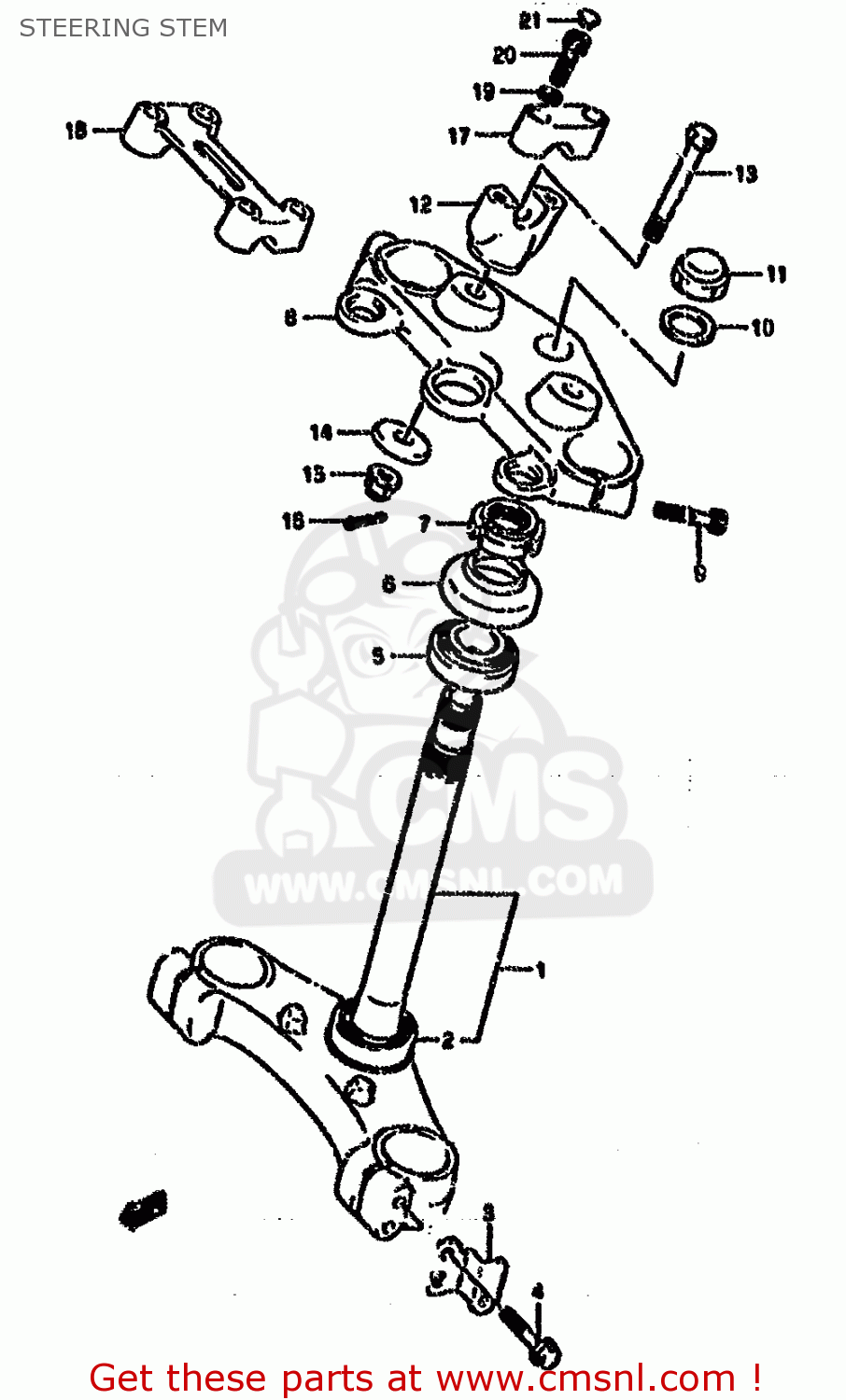

Steering stem diagram VX800U 1994 (R)
STEERING STEM VX800U 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1-1
5141045C00
ref: 1-1
MODEL L
STEM,STEERING
€ 458.00
1-2
5141045C0023W
ref: 1-2
MODEL M/N/P
STEM,STEERING(SILVER)
€ 458.00
1-3
5141045C0020H
ref: 1-3
MODEL R/T
STEM,STEERING (SILVER)
€ 245.50
2
0926530009
ref: 2
BEARING(30X55X17)
€ 49.50
3-1
3595645C01
ref: 3-1
E18,E39
BRACKET,SIDE REFLECTOR
€ 0.00
3-2
3595745C01
ref: 3-2
E18,E39
BRACKET,SIDE REFLECTOR
€ 0.00
4
5132827C20
ref: 4
BOLT,STEM HEAD(8X40)
€ 4.50
5
0926525008
ref: 5
TAPER,ROLLER BEARING
€ 48.50
6-1
5164349001
ref: 6-1
MODEL L/M/N/P
DUST SEAL,STEERING,UPPER
€ 7.50
6-2
5164349002
ref: 6-2
MODEL R/T
SEAL,STEERING UPR DUST
€ 7.50
7
5163128000
ref: 7
NUT,STEERING STEM(25X44X10)
€ 12.50
8-1
5131145C00
ref: 8-1
MODEL L
HEAD,STEERING STEM
€ 289.50
8-2
5131145C0023W
ref: 8-2
MODEL M/N/P
HEAD,STEERING STEM(SILVER)
€ 289.50
8-3
5131145C0020H
ref: 8-3
MODEL R/T
HEAD,STEERING STEM (SILVER)
€ 195.00
9
0713008307
ref: 9
BOLT
€ 4.50
10
5135624B01
ref: 10
WASHER(22.5X32X1.6)
€ 3.00
11
5135324B00
ref: 11
NUT,CAP
€ 21.50
12
5622145C00
ref: 12
HOLDER,HANDLE LWR
€ 30.50
13
5632128C00
ref: 13
BOLT
€ 6.50
14
5135627510
ref: 14
WASHER,FRONT FORK
€ 3.50
15
0831931107
ref: 15
NUT
€ 3.00
16
0411120208
ref: 16
PIN 20X20
€ 1.50
17
5621145C00
ref: 17
MODEL L/M
HOLDER,HANDLEBAR
€ 16.00
18
5621145C60
ref: 18
MODEL N/P/R/T
HOLDER,HANDLE UPR
€ 41.00
19
0916408015
ref: 19
WASHER
€ 3.00
20
0713008307
ref: 20
BOLT
€ 4.50
21
0925006004
ref: 21
CAP(OD:14.5)
€ 1.50
