REAR SWINGING ARM (E1)
VX800U 1994 (R)

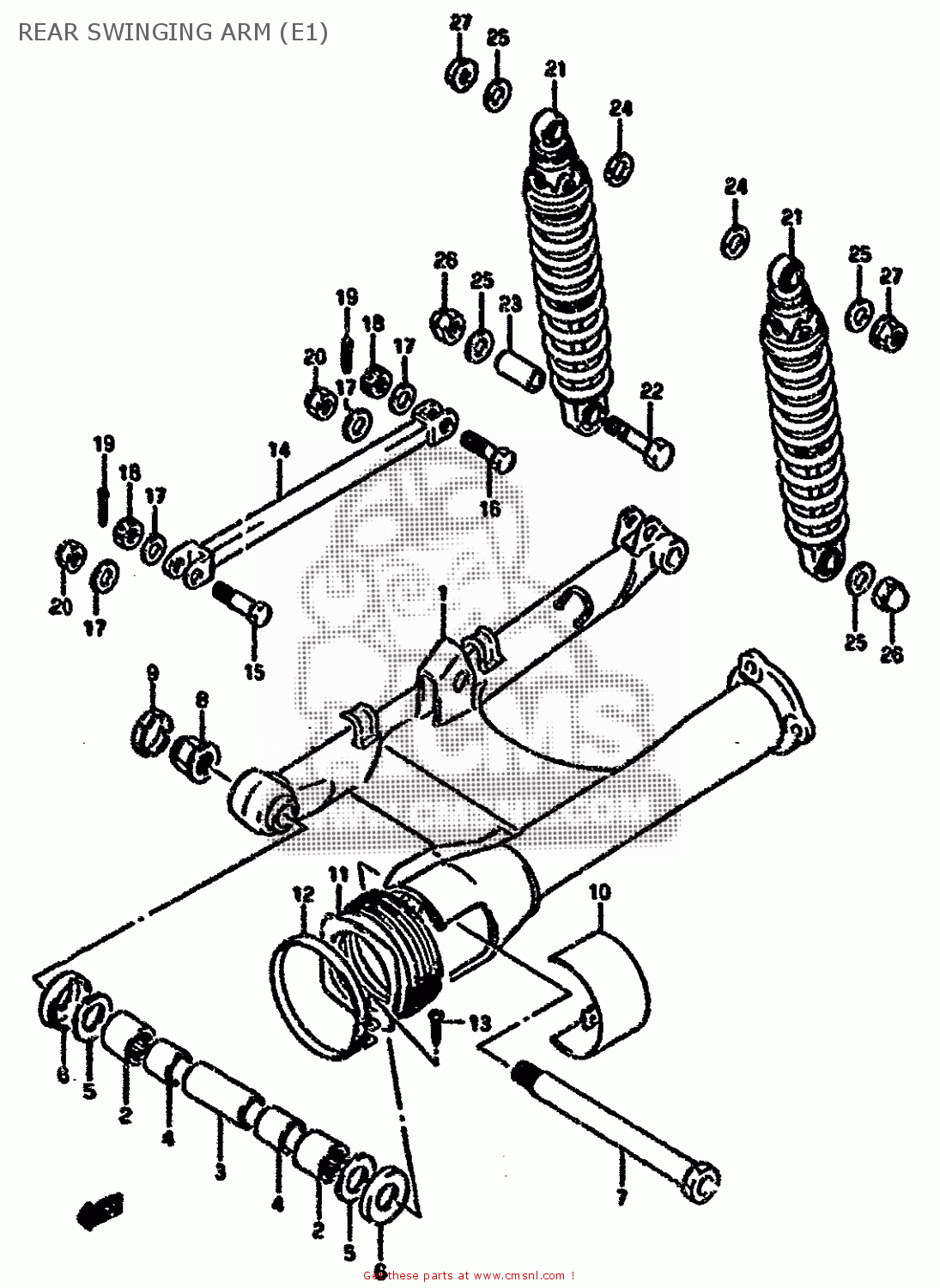

Rear swinging arm (e1) diagram VX800U 1994 (R)
REAR SWINGING ARM (E1) VX800U 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1-1
6110045C0313L
ref: 1-1
MODEL L
SWING ARM,REAR
€ 561.50
1-2
6110045C0323W
ref: 1-2
MODEL M/N
SWING ARM ASSEMBLY,REAR
€ 560.00
2
0926325024
ref: 2
BEARING(25X33X30)
€ 31.50
3
6128245C01
ref: 3
SPACER,REAR SWING ARM PIVOT
€ 11.50
4
6125117C00
ref: 4
SPACER,RR SWGARM PIVOT BERRING
€ 36.00
5
0821120381
ref: 5
WASHER
€ 3.00
6
6126210D00
ref: 6
COVER,RR SWGARM PIVOT SEAL
€ 9.00
7
6121145C01
ref: 7
SHAFT,RR SWINGINGARM PIVOT
€ 54.50
8
0831931188
ref: 8
NUT ,18MM
€ 17.50
9
6122248B00
ref: 9
CAP,RR SWINGING ARM PIVOT
€ 4.00
10-1
6123238A0013L
ref: 10-1
MODEL L
COVER,SWGARM PIVOT,L
€ 25.50
10-2
6123238A0023W
ref: 10-2
MODEL M/N
COVER,REAR SWING ARM PIVOT
€ 25.50
11
6137238A00
ref: 11
BOOT,PROPELLER SHAFT
€ 16.50
12
0940292306
ref: 12
CLAMP
€ 8.50
13
0321104255
ref: 13
SCREW 4X25
€ 2.00
14-1
6431045C0013L
ref: 14-1
MODEL L
TORQUE LINK,REAR
€ 30.00
14-2
6431045C0023W
ref: 14-2
MODEL M/N
TORQUE LINK,REAR
€ 30.00
15-1
0911110016
ref: 15-1
MODEL L
BOLT(10X41)
€ 6.50
15-2
0911110051
ref: 15-2
MODEL M/N
BOLT(10X39)
€ 8.50
16-1
0910110036
ref: 16-1
MODEL L
BOLT(10X35)
€ 4.50
16-2
0910010278
ref: 16-2
MODEL M/N
BOLT
€ 4.50
17-1
0916010069
ref: 17-1
MODEL L
WASHER (10X18X3.2)
€ 2.00
17-2
0832211107
ref: 17-2
MODEL M/N
WASHER
€ 2.50
18
0831441108
ref: 18
MODEL L
NUT
€ 2.50
19
0411120208
ref: 19
MODEL L
PIN 20X20
€ 1.50
20
0915910027
ref: 20
MODEL M/N
NUT
€ 3.00
21
6210045C20
ref: 21
ABSORBER ASSEMBLY,REAR SHOCK
€ 514.00
22
0910010247
ref: 22
BOLT(10X39)
€ 4.00
23
0918010104
ref: 23
SPACER (10.2X14X20.7)
€ 6.00
24
0832211148
ref: 24
WASHER
€ 2.00
25
0916010001
ref: 25
WASHER
€ 2.00
26
0831311107
ref: 26
NUT
€ 2.50
27
0831616108
ref: 27
NUT
€ 2.00
