VX800U 1994 (R)

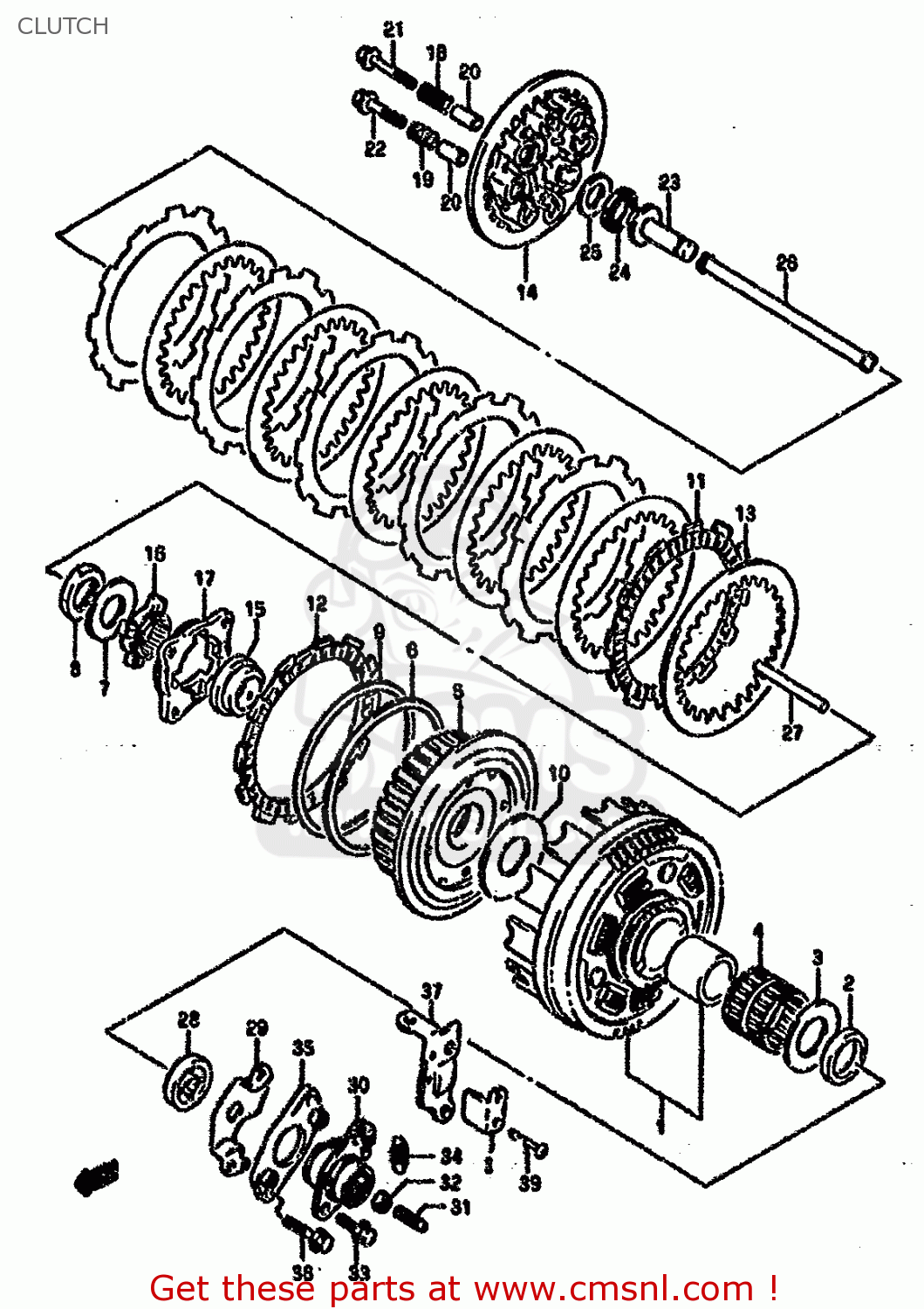

Clutch diagram VX800U 1994 (R)
CLUTCH VX800U 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120038812
ref: 1-1
MODEL L/M/N/P/R/T
GEAR ASSY,PRI DRIVEN(NT:71)
€ 341.00
1-2
2120038840
ref: 1-2
MODEL T
GEAR ASSY,PRIMARY(NT:71)
€ 321.00
2
0918025077
ref: 2
SPACER(25X38X6.5)
€ 7.50
3
0916025055
ref: 3
WASHER(25X50X2.5)
€ 9.50
4
0926335017
ref: 4
BEARING(35X40X35.8)
€ 36.50
5
2141045C03
ref: 5
HUB,CLUTCH SLEEVE
€ 221.00
6
2147137400
ref: 6
SEAT,WAVE WASHER(T:1.4)
€ 8.00
7
0916422008
ref: 7
WASHER
€ 8.00
8
0914022011
ref: 8
NUT
€ 9.00
9
0916400004
ref: 9
WASHER
€ 9.00
10
0916025065
ref: 10
WASHER(25X60X2.5)
€ 15.50
11
2144137400
ref: 11
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
12
2144237401
ref: 12
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
€ 11.50
13
2145114A00
ref: 13
PLATE,CLUTCH DRIVEN(T:1.6) (NAS)
€ 6.50
14
2146245C00
ref: 14
DISC,CLUTCH PRESSURE
€ 44.50
15
2141345C00
ref: 15
SPACER,CLUTCH SLEEVE HUB
€ 45.50
16
2161145C01
ref: 16
CAM,CLUTCH NO.1
€ 57.50
17
2161345C01
ref: 17
CAM,CLUTCH NO.2
€ 184.00
18
0944014038
ref: 18
SPRING
€ 6.00
19
0944014039
ref: 19
SPRING
€ 6.00
20
0918006192
ref: 20
SPACER (6,1X9X24.1)
€ 6.50
21
0911606135
ref: 21
BOLT(6X40)
€ 3.00
22
0911606148
ref: 22
BOLT(6X32.5)
€ 2.50
23
2312138A10
ref: 23
PIECE,CLUTCH PUSH
€ 17.00
24
0926315003
ref: 24
BEARING(15X28X2)
€ 7.00
25
0916015045
ref: 25
-09160-15015
WASHER(15.5X28X1)
€ 4.00
26
2311027A00
ref: 26
ROD,CLUTCH
€ 17.00
27
2311145C00
ref: 27
ROD,CLUTCH PUSH,L
€ 11.00
28
0928506017
ref: 28
SEAL,OIL(6X34X11)
€ 11.00
29
2311745C00
ref: 29
RETAINER,CL PUSH ROD OIL SEAL
€ 4.50
30
2320045C00
ref: 30
SCREW ASSY,CLUTCH RELEASE
€ 68.50
31
0913406010
ref: 31
SCREW(6X25)
€ 3.00
32
0831000067
ref: 32
NUT
€ 2.50
33-1
0151706166
ref: 33-1
MODEL L/M/N/P
BOLT
€ 2.50
33-2
0155006163
ref: 33-2
MODEL R/T
BOLT
€ 2.50
34
0944309024
ref: 34
SPRING
€ 2.00
35
2313045C00
ref: 35
PLATE,CLUTCH RELEASE SCREW
€ 16.50
36-1
0151706256
ref: 36-1
MODEL L/M/N/P
BOLT
€ 1.50
36-2
0155006253
ref: 36-2
MODEL R/T
BOLT
€ 2.50
37
2328145C01
ref: 37
GUIDE,CLUTCH CABLE
€ 7.00
38
2328245C00
ref: 38
PLATE,CLUTCH CABLE GUIDE
€ 6.00
39
0912505072
ref: 39
SCREW (5X8)
€ 2.50
