CARBURETOR (FRONT)
VX800U 1994 (R)

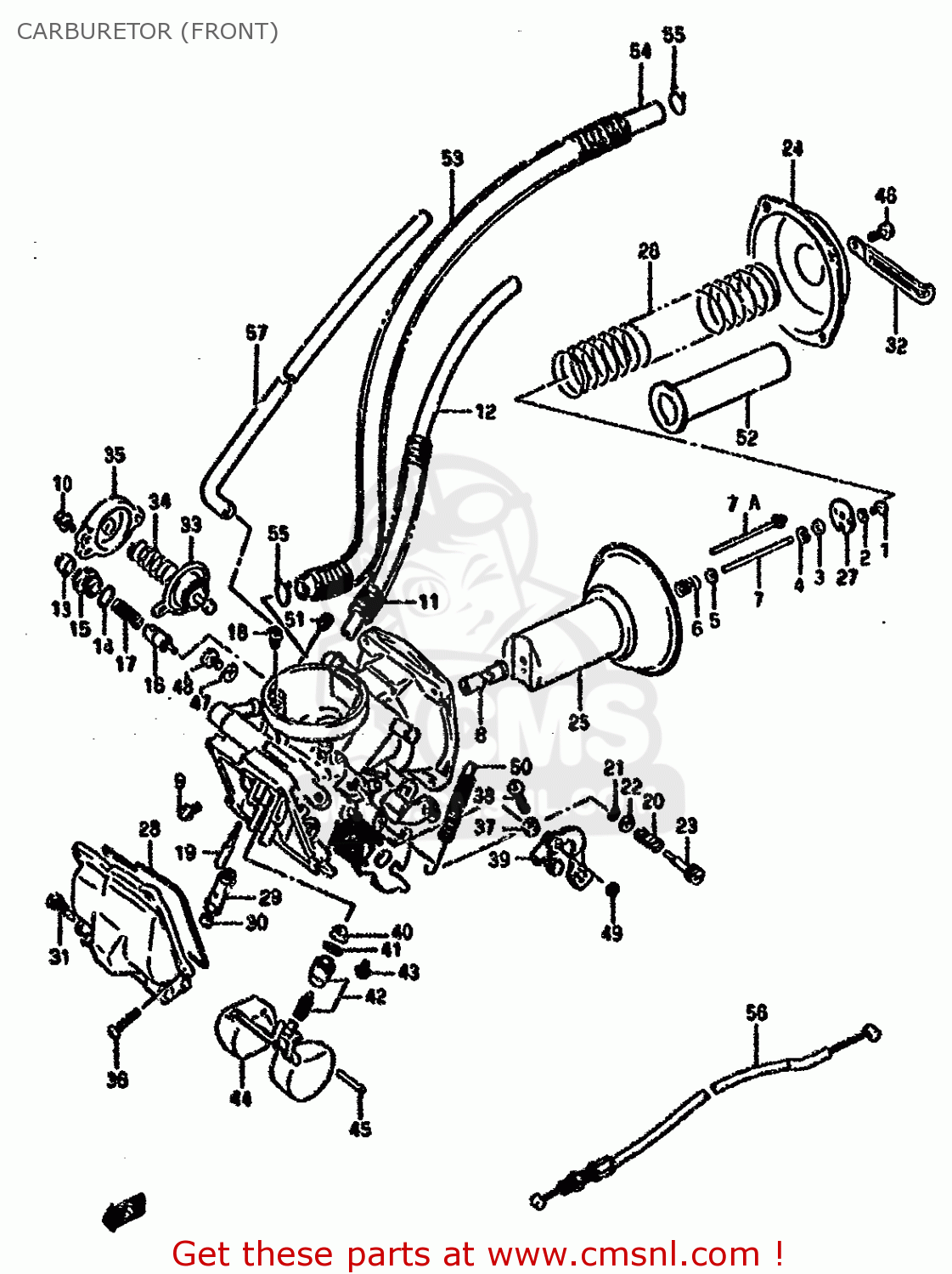

Carburetor (front) diagram VX800U 1994 (R)
CARBURETOR (FRONT) VX800U 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
0
1321045C40
ref: 0
E1,MODEL L E16
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045C00
ref: 0
E2,E4,E21,E25,E34 MO
CARBURETOR ASSY,FRONT
€ 554.00
0
1321045CB0
ref: 0
MODEL T
CARBURETOR ASSY,FR
€ 741.50
0
1321045C70
ref: 0
E17
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045C30
ref: 0
E18
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045C50
ref: 0
E24,E39 MODEL M/N E1
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045CC0
ref: 0
MODEL T E22
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045C60
ref: 0
VX800UL/UM/UN/UP E22
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045CA0
ref: 0
VX800UR E22
CARBURETOR ASSY,FRONT
€ 0.00
0
1321045CD0
ref: 0
VX800UT E22
CARBURETOR ASSY,FRONT
€ 0.00
1
0211203063
ref: 1
SCREW
€ 2.00
2
0832121033
ref: 2
WASHER,LOCK
€ 1.50
3-1
1338747010
ref: 3-1
RING
€ 7.50
3-2
1338745C00
ref: 3-2
VX800UR E22
RING
€ 6.00
4
1339410010
ref: 4
EXCEPT VX800UR/UT E2
CLIP
€ 4.50
5
1338244030
ref: 5
WASHER
€ 3.50
6
1338844030
ref: 6
SPRING
€ 6.00
7-1
1338345C00
ref: 7-1
NEEDLE,JET (5D64)
€ 13.50
7-2
1338345C50
ref: 7-2
E18
NEEDLE, JET (5D48-3)
€ 0.00
7A-1
1338345C70
ref: 7A-1
VX800UR E22
NEEDLE,JET (5D64)
€ 9.00
7A-2
1338345C00
ref: 7A-2
VX800UT E22
NEEDLE,JET (5D64)
€ 13.50
8-1
0949400592
ref: 8-1
-09494-00686
JET,NEEDLE(P-4)
€ 32.50
8-2
0949400688
ref: 8-2
E17
JET,NEEDLE (P-6)
€ 26.00
8-3
0949400588
ref: 8-3
E18
JET,NEEDLE(P-2)
€ 26.50
8-4
0949400688
ref: 8-4
VX800UL/UM/UN/UP/UR
JET,NEEDLE (P-6)
€ 26.00
9
1360538B00
ref: 9
SCREW
€ 7.50
10
1360219B50
ref: 10
SCREW
€ 3.00
11
1368419C00
ref: 11
HOSE
€ 8.00
12
0935250823600
ref: 12
HOSE(5X8.2X600)
€ 13.00
13
1368104010
ref: 13
CAP
€ 3.00
14
1327847090
ref: 14
O RING
€ 2.00
15
1341843410
ref: 15
HOLDER,GUIDE
€ 6.50
16
1341101400
ref: 16
PLUNGER,STARTER
€ 11.50
17
1341722010
ref: 17
SPRING
€ 3.00
18
0949265005
ref: 18
JET,AIR(65)
€ 7.50
19
0949240021
ref: 19
JET,PILOT(40)
€ 17.50
20
1326847070
ref: 20
EXCEPT E18
SPRING
€ 5.00
21
1329529900
ref: 21
EXCEPT E18
O RING,PILOT AIR SCREW
€ 4.00
22
1329129900
ref: 22
EXCEPT E18
WASHER
€ 2.00
23-1
1327947070
ref: 23-1
EXCEPT E18
SCREW,PILOT
€ 11.50
23-2
1327947070
ref: 23-2
E17 MODEL T E22
SCREW,PILOT
€ 11.50
23-3
1327947070
ref: 23-3
E24,E39 MODEL M/N E1
SCREW,PILOT
€ 11.50
23-4
1327947070
ref: 23-4
VX800UR E22
SCREW,PILOT
€ 11.50
24-1
1350245C10
ref: 24-1
COVER
€ 34.00
24-2
1350245CD0
ref: 24-2
VX800UT E22
COVER
€ 19.00
25-1
1350005A10
ref: 25-1
DIAPHRAGM,CARBURETOR
€ 178.00
25-2
1350045C00
ref: 25-2
E18
DIAPHRAGM ASSY
€ 211.00
25-3
1350045C20
ref: 25-3
VX800UR/UT E22
DIAPHRAGM SET
€ 131.00
26
1350338B00
ref: 26
SPRING,DIAPHRAGM
€ 12.00
27
1338937400
ref: 27
PLATE
€ 5.50
28
1325138A00
ref: 28
O RING,FLOAT CHAMBER
€ 6.50
29
1338505A11
ref: 29
HOLDER,MAIN JET
€ 14.00
30-1
0949124015
ref: 30-1
E1,E2,E4,E16,E17,E21
JET,MAIN
€ 14.00
30-2
0949125014
ref: 30-2
E18
JET,MAIN(125)
€ 11.50
30-3
0949124012
ref: 30-3
E24,E39 MODEL M/N E1
JET,MAIN (120)
€ 14.00
30-4
0949120019
ref: 30-4
MODEL T E22
JET,MAIN(100)
€ 7.50
30-5
0949120011
ref: 30-5
VX800UT E22
JET,MAIN (102.5)
€ 9.50
31
1324713A00
ref: 31
-13247-38B00 MODEL L
SCREW,DRAIN
€ 5.50
32-1
0940406415
ref: 32-1
-13671-05A20
CLAMP
€ 3.00
32-2
0940406431
ref: 32-2
MODEL T
CLAMP(L:65)
€ 2.50
33
1348005A10
ref: 33
DIAPHRAGM ASSY
€ 54.50
34-1
1348145C10
ref: 34-1
SPRING
€ 5.50
34-2
1348137300
ref: 34-2
E18
SPRING
€ 0.00
35
1348445C00
ref: 35
COVER
€ 15.50
36
1360104148
ref: 36
SCREW
€ 2.50
37
0831000047
ref: 37
NUT
€ 2.00
38
0211204307
ref: 38
SCREW
€ 0.00
39
1355445C00
ref: 39
-13554-38B10
LEVER ASSEMBLY
€ 38.50
40
1337684110
ref: 40
FILTER
€ 6.50
41
1337444080
ref: 41
O-RING,NEEDLE VALVE
€ 6.00
42-1
1337038B00
ref: 42-1
VALVE ASSY,NEEDLE
€ 64.50
42-2
1337039A00
ref: 42-2
MODEL T E22 VX800UR/
VALVE ASSY,NEEDLE
€ 67.50
43
1360205A10
ref: 43
SCREW
€ 4.00
44
1325038B00
ref: 44
FLOAT
€ 32.00
45
1325420010
ref: 45
PIN,FLOAT
€ 3.00
46
0211205127
ref: 46
SCREW
€ 2.50
47
1352346110
ref: 47
EXCEPT E18
GASKET,DRAIN PLUG (NAS)
€ 3.00
48
0211205067
ref: 48
EXCEPT E18
SCREW
€ 4.00
49
1341538300
ref: 49
E RING
€ 2.00
50
1357338B30
ref: 50
SPRING
€ 7.50
51-1
0949324007
ref: 51-1
JET,AIR(1.2)
€ 13.50
51-2
0949326004
ref: 51-2
E18
JET,AIR(1.3)
€ 14.50
52
1348545C00
ref: 52
E17,E18 VX800UL/UM/U
RING
€ 19.00
53
1368438B00
ref: 53
HOSE
€ 21.50
54
0935465113600
ref: 54
L:600-450
HOSE(6.5X11.5X600)
€ 26.00
55
0940111402
ref: 55
-13671-38B00
CLAMP
€ 3.00
56
1364138B02
ref: 56
-13641-38B00
CABLE,IDLE SYNCRO
€ 17.50
57
1321845C00
ref: 57
E18
HOSE ASSY
€ 0.00
