REAR CALIPER (MODEL P/R/T)

VX800U 1994 (R)

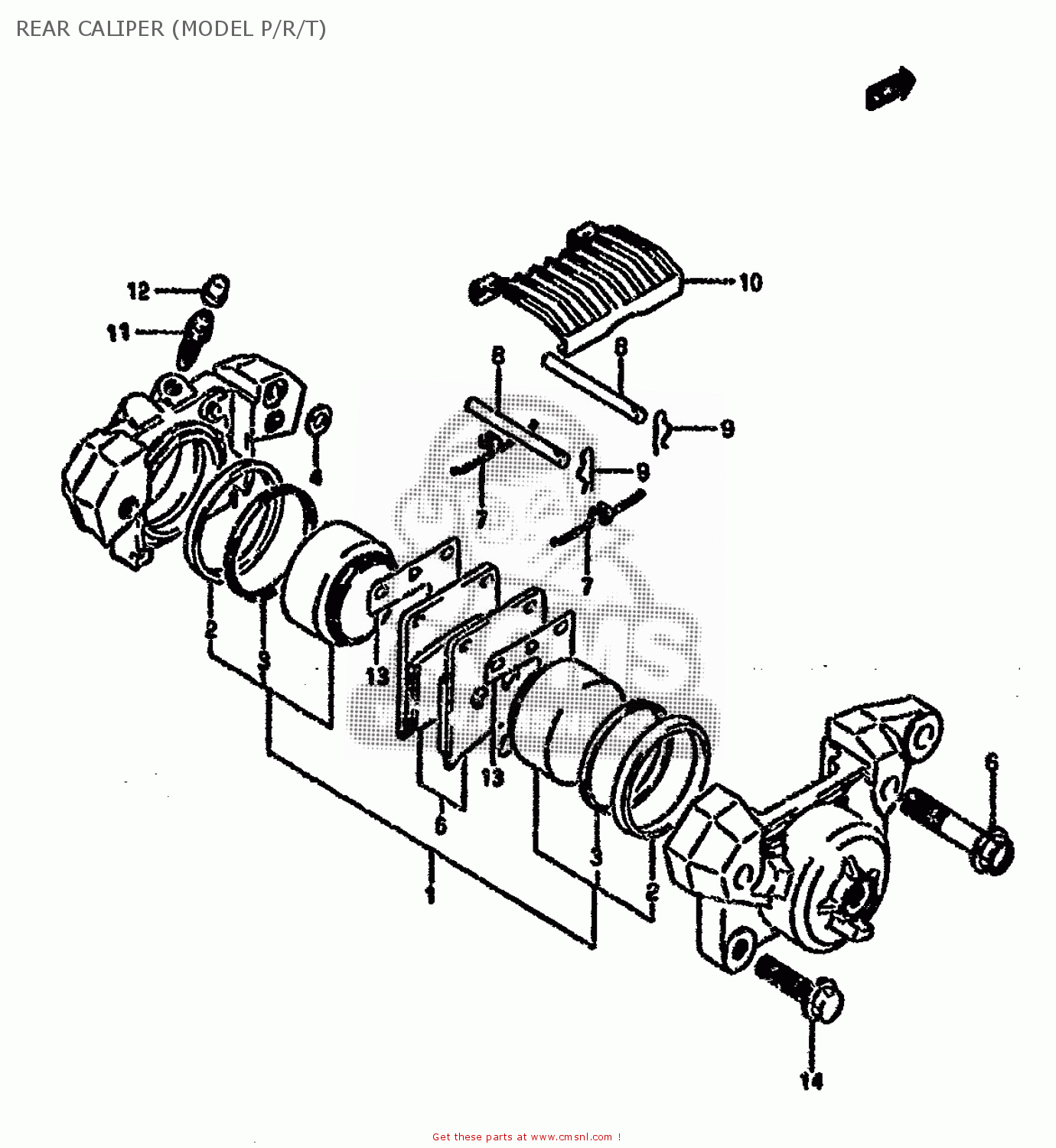

Rear caliper (model p/r/t) diagram VX800U 1994 (R)

REAR CALIPER (MODEL P/R/T) VX800U 1994 (R)

REAR CALIPER (MODEL P/R/T) VX800U 1994 (R)

prices are in EUR

ref

part #

description

quantity

0

6910045C21
ref: 0

CALIPER ASSY,R

€ 493.00

1

6910045880
ref: 1

PISTON SET

€ 152.50

2

5513666310
ref: 2

SEAL,FR CALIPE

€ 8.50

3

6910845010
ref: 3

SEAL,WIPER

€ 28.50

4

6910734200
ref: 4

SEAL,JOINT

€ 12.00

5

6910045890
ref: 5
-69130-45C00

PAD SET (NAS)

€ 95.00

6-1

5914517C00
ref: 6-1
MODEL P

BOLT

€ 7.00

6-2

5914516700
ref: 6-2
MODEL R/T

BOLT,HOUSING

€ 8.00

7

6914345001
ref: 7

SPRING

€ 8.00

8

6914145000
ref: 8

PIN,PAD

€ 6.50

9

6914245000
ref: 9

CLIP,PAD PIN

€ 4.50

10

5915116701
ref: 10

COVER

€ 13.50

11

5912118410
ref: 11

BLEEDER

€ 8.00

12

5515666310
ref: 12

CAP,BLEEDER PLUG

€ 6.00

13

6915245001
ref: 13

SHIM,RR CALIPER

€ 9.50

14-1

0151708304
ref: 14-1
MODEL P

BOLT

€ 3.00

14-2

0155008303
ref: 14-2
MODEL R/T

BOLT

€ 3.00
