FRONT DAMPER (MODEL P/R/T)
VX800U 1994 (R)

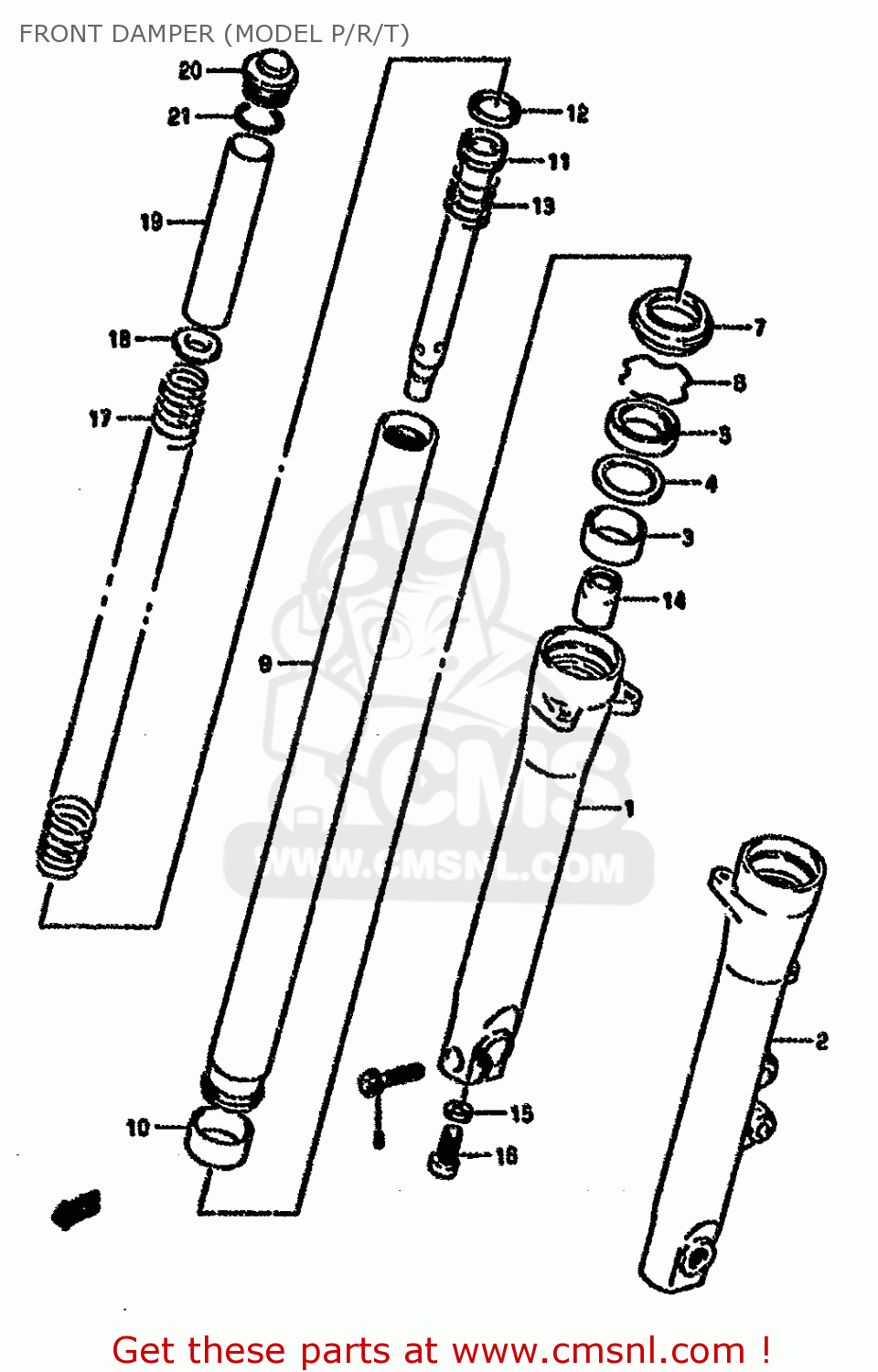

Front damper (model p/r/t) diagram VX800U 1994 (R)
FRONT DAMPER (MODEL P/R/T) VX800U 1994 (R)
×
prices are in EUR
ref
part #
description
quantity
0
5110345C00
ref: 0
DAMPER ASSEMBLY,RIGHT
€ 576.50
0
5110445C01
ref: 0
MODEL P/R
DAMPER ASSY,FR FORK,L
€ 576.50
0
5110445CA0
ref: 0
MODEL T
DAMPER ASSY,LH
€ 691.50
1
5113045C00
ref: 1
TUBE,OUTER,RIGHT
€ 350.00
2-1
5114045C01
ref: 2-1
MODEL P/R
TUBE,OUTER,LEFT
€ 354.00
2-2
5114045CA0
ref: 2-2
MODEL T
TUBE,OUTER,L
€ 385.50
3
5116728C00
ref: 3
METAL,SLIDE
€ 20.50
4
5115805A00
ref: 4
WASHER,FORK OIL SEAL
€ 5.00
5-1
5115306C00
ref: 5-1
MODEL P
OIL SEAL,FRONT FORK
€ 22.00
5-2
5115328C00
ref: 5-2
MODEL R/T
OIL SEAL,FRONT FORK
€ 22.00
6
5115649440
ref: 6
RING,OIL SEAL STOPPER
€ 5.50
7-1
5117306C00
ref: 7-1
MODEL P
DUST SEAL,FRONT FORK
€ 20.00
7-2
5117346E00
ref: 7-2
MODEL R/T
SEAL,DUST
€ 20.00
8
0713008407
ref: 8
BOLT
€ 3.50
9
5111045C00
ref: 9
TUBE,INNER
€ 313.00
10
5112128C00
ref: 10
PISTON
€ 23.00
11
5114645C20
ref: 11
CYLINDER
€ 66.00
12
5119605A00
ref: 12
RING,PISTON
€ 7.50
13
5117745C00
ref: 13
SPRING,REBOUND
€ 6.00
14
5119505C20
ref: 14
PIECE,OIL LOCK
€ 13.00
15
5114841310
ref: 15
GASKET (NAS)
€ 2.50
16
5114716510
ref: 16
BOLT,FORK CYLINDER(10X25)
€ 3.50
17
5117145C00
ref: 17
SPRING,MAIN
€ 50.00
18-1
5117224A00
ref: 18-1
MODEL P/R
GUIDE,SPRING
€ 3.00
18-2
5117245C00
ref: 18-2
MODEL T
WASHER
€ 4.50
19
5117645C00
ref: 19
SPACER,SPRING
€ 9.00
20
5135145C00
ref: 20
CAP,FORK
€ 35.50
21
5111740300
ref: 21
O RING
€ 2.50
20
5135145C00
ref: 20
CAP,FORK
€ 35.50
21
5111740300
ref: 21
O RING
€ 2.50
