AIR CLEANER

XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

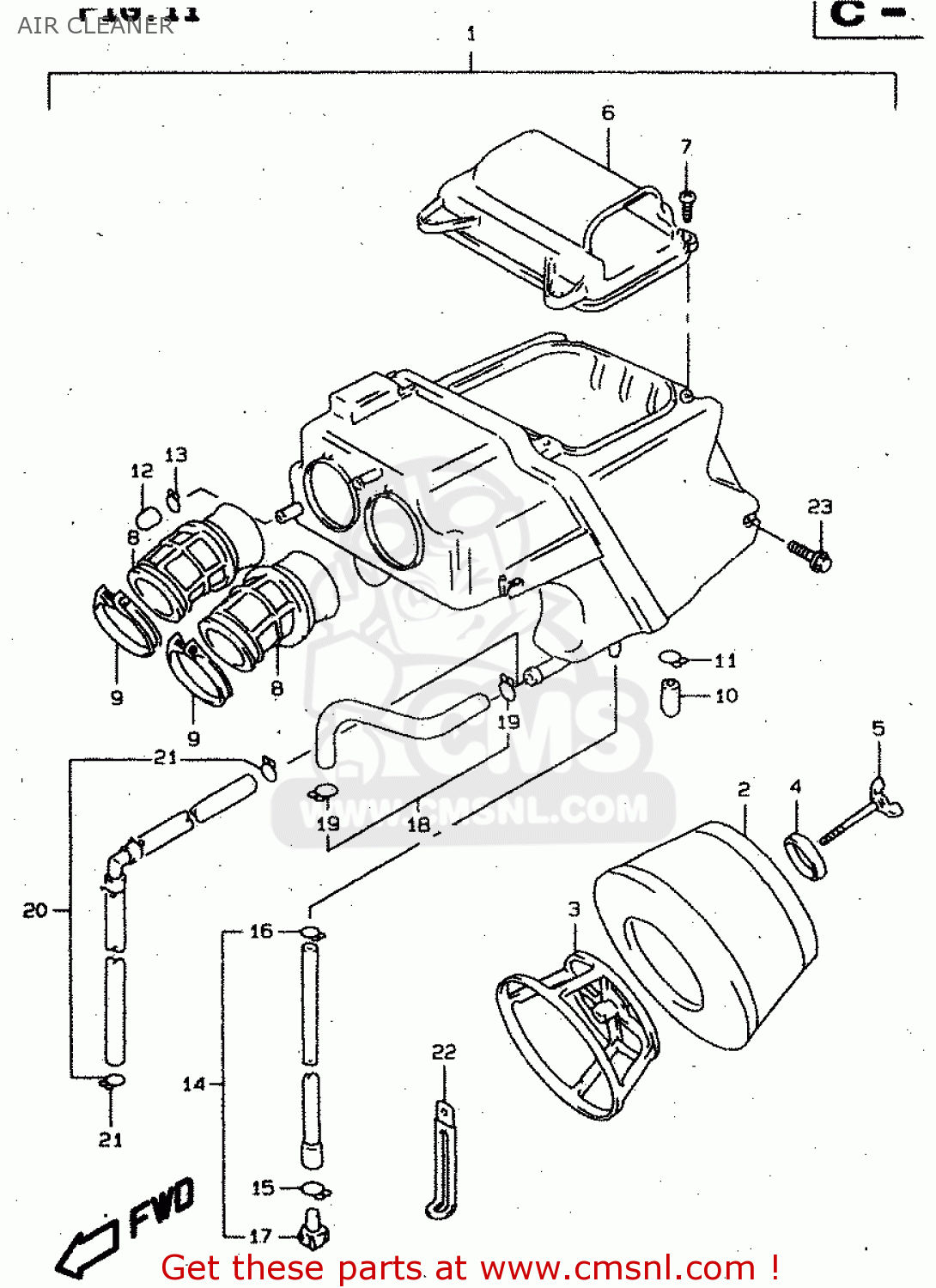

Air cleaner diagram XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

AIR CLEANER XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
AIR CLEANER XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
AIR CLEANER XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
1370004F00
ref: 1
MODEL V
CLEANER ASSY,A
€ 274.00
1
1370004F01
ref: 1
MODEL W/X
CLEANER ASSY,AIR
1370004F01
€ 274.00
2
1378004F00
ref: 2
FILTER,AIR CLEANER
1378004F00
€ 28.00
3
1379104F00
ref: 3
HOLDER
1379104F00
€ 14.50
4
1379213A01
ref: 4
WASHER,AIR CLEANER
1379213A01
€ 3.00
5
0911906062
ref: 5
BOLT L:40
€ 12.00
6
1374004F00
ref: 6
CAP,AIR CLEANER
€ 35.00
7
0214205163
ref: 7
SCREW
0214205163
€ 2.50
8
1388104F00
ref: 8
TUBE,OUTLET
1388104F00
€ 20.00
9
0940258208
ref: 9
CLAMP
0940258208
€ 5.50
10
1385941B10
ref: 10
PLUG
1385941B10
€ 5.50
11
0940114301
ref: 11
CLIP
0940114301
€ 2.00
12
1385941B10
ref: 12
PLUG
1385941B10
€ 5.50
13
0940114301
ref: 13
CLIP
0940114301
€ 2.00
14
1387011458
ref: 14
TUBE,DRAIN
1387011458
€ 13.50
15
0940111101
ref: 15
CLIP
0940111101
€ 2.50
16
0940113409
ref: 16
CLIP
0940113409
€ 2.50
17
1387738A00
ref: 17
STOPPER,DRAIN
1387738A00
€ 3.50
18
1385004F00
ref: 18
MODEL W/X
TUBE,BREATHER
€ 15.00
19
0940114301
ref: 19
MODEL W/X
CLIP
0940114301
€ 2.00
20
1385004F10
ref: 20
MODEL V
TUBE,BREATHER
€ 32.50
21
0940114301
ref: 21
MODEL V
CLIP
0940114301
€ 2.00
22
0940406432
ref: 22
<-09404-06429
CLAMP(L:65)
0940406432
€ 2.50
23
0155006123
ref: 23
BOLT
0155006123
€ 2.50
