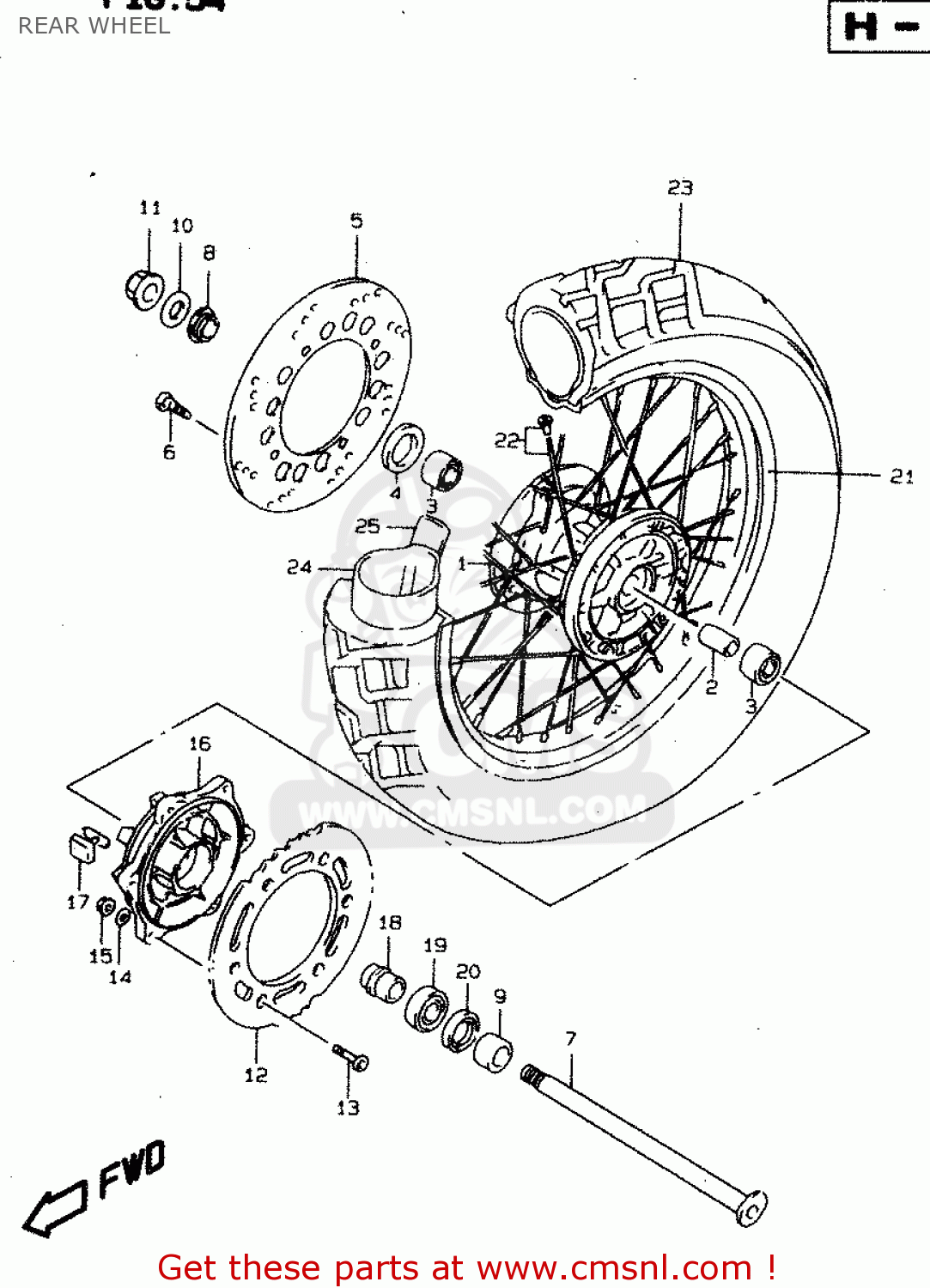

REAR WHEEL

ref

part #

description

quantity

1

6411115D10
ref: 1

HUB,RR WHEEL

€ 216.00

2

6473115D00
ref: 2

SPACER,RR HUB BEARING

€ 14.00

3

0812362047
ref: 3

BEARING

€ 17.00

4

0928326019
ref: 4

SEAL,OIL(26X47X5)

€ 9.50

5

6921132E01
ref: 5

DISC,RR BRAKE

€ 130.50

6

5942103A10
ref: 6

BOLT,BRAKE DISC

€ 4.00

7

6471104F00
ref: 7

AXLE,RR

€ 64.50

8

6474105D00
ref: 8

SPACER,RR AXLE,R

€ 9.00

9

6475115D00
ref: 9

SPACER,RR AXLE,L

€ 17.50

10

0916019022
ref: 10

WASHER(19X32X3.2)

€ 5.00

11

0831921188
ref: 11

NUT 18MM

€ 3.50

12

6451132E20
ref: 12

SPROCKET,RR(NT43-525)

€ 58.00

13

0912008010
ref: 13

BOLT(8X30.5)

€ 2.50

14

0832201083
ref: 14

WASHER

€ 1.50

15

0831931087
ref: 15

NUT

€ 2.50

16

6461115D01
ref: 16

DRUM,RR SPROCKET MOUNTING

€ 75.50

17

6465104F00
ref: 17

ABSORBER,RR HUB SHOCK

€ 10.50

18

6473315D00
ref: 18

RETAINER,RR SPROCKET DRUM

€ 23.00

19

0926225061
ref: 19

BEARING(25X52X15)

€ 27.50

20

0928334003
ref: 20

SEAL,OIL(34X52X6)

€ 9.00

21

6531104F00
ref: 21
MODEL V/W

RIM, REAR WHEEL (MT3.00X17) (BLACK)

€ 328.50

21

6531104F10
ref: 21
MODEL X

RIM, REAR WHEEL (MT3.00X17) (SILVER)

€ 283.00

22

6532004F00
ref: 22

SPOKE SET,RR WHEEL

€ 51.50

23

6511004F00
ref: 23
PURCHASE LOCALLY

TIRE, REAR (PIRELLI) (130/80 R17 65H MT8

€ 0.00

24

6520004F00
ref: 24
PURCHASE LOCALLY

TUBE ASSY, WHEEL INNER (PIRELLI)

€ 107.50

25

6526104F00
ref: 25
PURCHASE LOCALLY

PROTECTOR, INNER TUBE (PIRELLI)

€ 25.00
