HEADLAMP (E2, E24)

XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

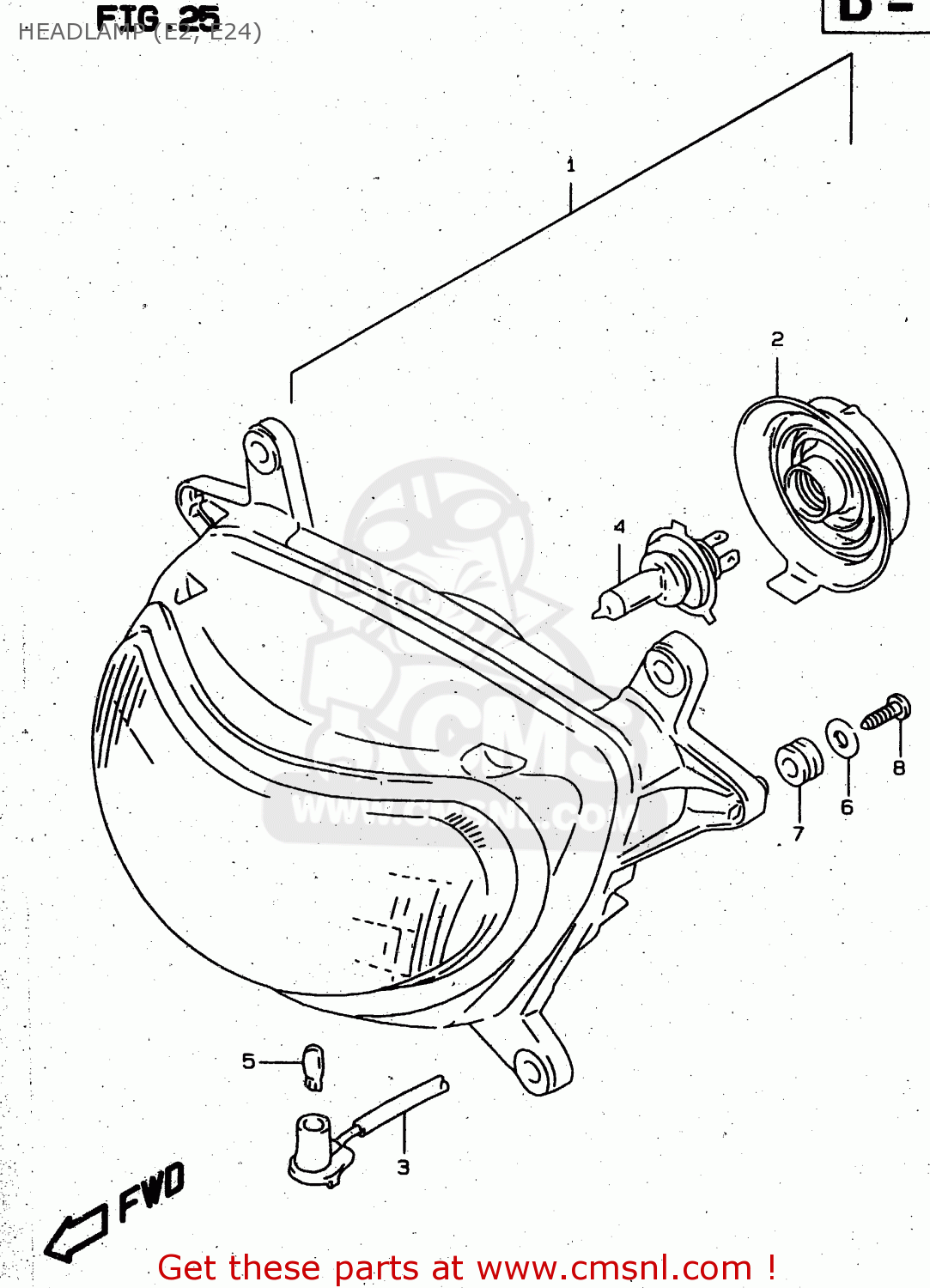

Headlamp (e2, e24) diagram XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

HEADLAMP (E2, E24) XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

HEADLAMP (E2, E24) XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3510004F20999
ref: 1
E2

HEADLAMP ASSY

€ 373.00

1

3510004F30999
ref: 1
E24

HEADLAMP ASSY

€ 0.00

2

3517342E00
ref: 2

COVER

€ 20.50

3

3611804F20
ref: 3
E2

CORD ASSY

€ 16.50

4

0947112185
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112081
ref: 5
E2

BULB(12V5W)

€ 1.50

6

0916005045
ref: 6
<-09160-05003

WASHER(5.5X18X1)

€ 2.00

7

0932008051
ref: 7

CUSHION

€ 7.50

8

0351205163
ref: 8

SCREW

€ 2.50
