OIL PIPE

XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

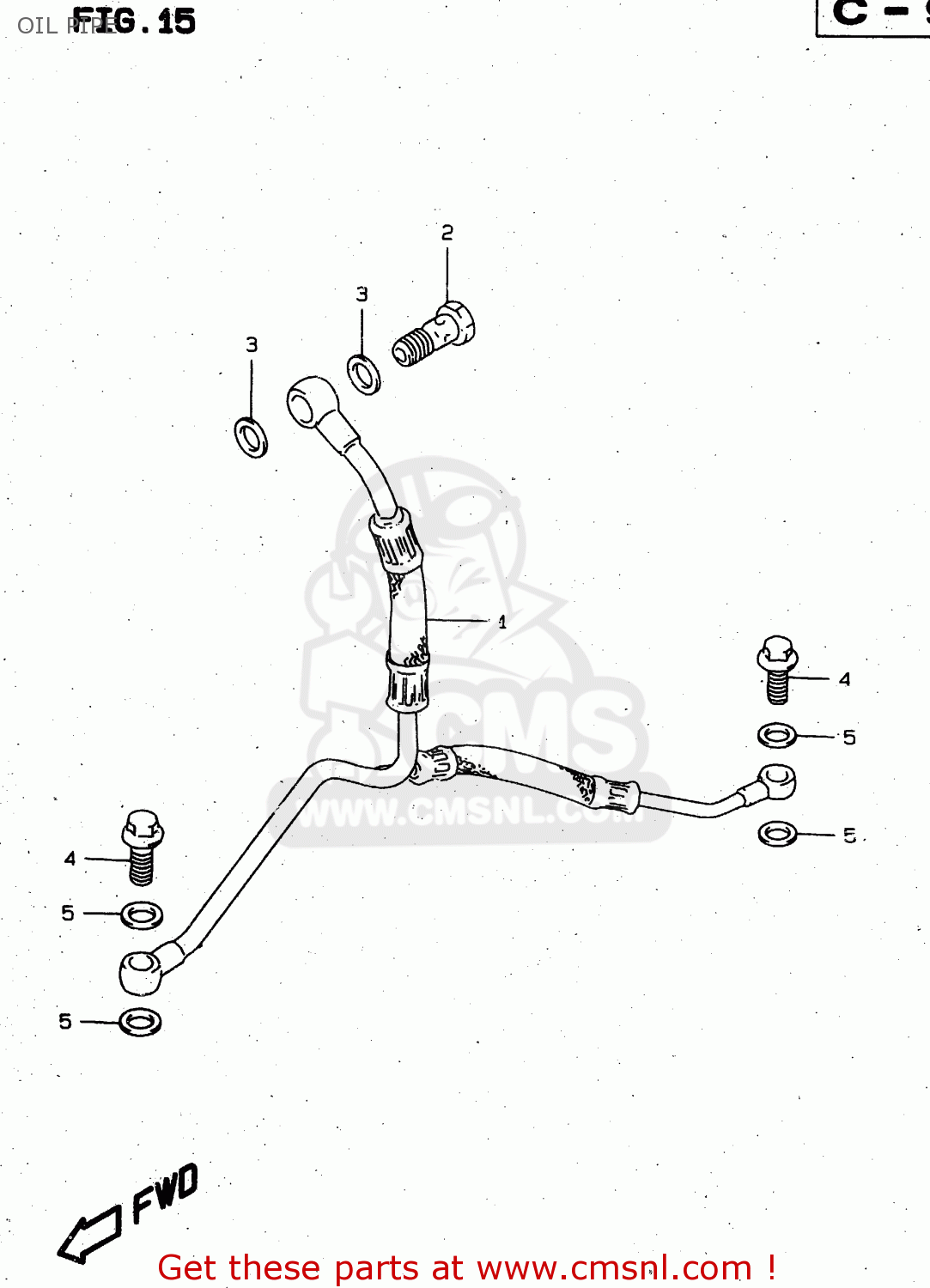

Oil pipe diagram XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

OIL PIPE XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

OIL PIPE XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1648004F00
ref: 1

PIPE,T/M & CSHAFT OIL

€ 350.00

2

0936012010
ref: 2

BOLT UNION

€ 7.50

3

0916812017
ref: 3

GASKET(12X17X1) (NAS)

€ 2.00

4

0936010032
ref: 4

BOLT UNION

€ 3.00

5

0916810007
ref: 5

GASKET(10.1X16X1) (NAS)

€ 2.00
