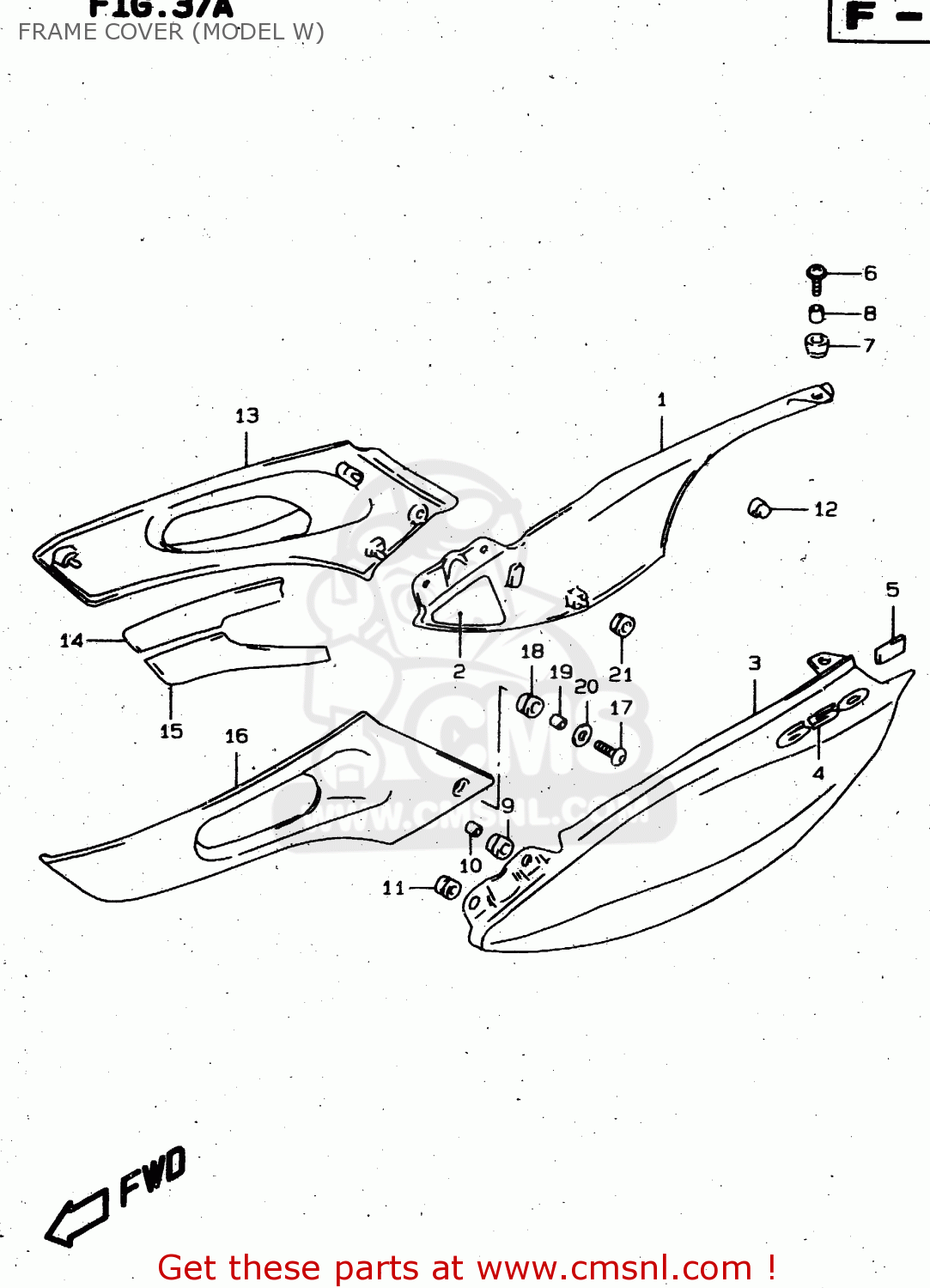

FRAME COVER (MODEL W)

ref

part #

description

quantity

1

4711104F00Y2D
ref: 1
FOR J9W, H3P

COVER,FRAME,R.

€ 143.00

1

4711104F00Z94
ref: 1
FOR K1A

COVER, FRAME RH (ORANGE)

€ 162.00

2

4716804F00
ref: 2

SHIELD,FRAME COVER,R

€ 11.50

3

4721104F00Y2D
ref: 3
FOR J9W, H3P

COVER,FRAME,L.

€ 45.50

3

4721104F00Z94
ref: 3
FOR K1A

COVER, FRAME LH (ORANGE)

€ 130.50

4

6813104F00K1B
ref: 4
FOR J9W, H3P

EMBLEM,FRAME COVER

€ 11.00

4

6813104F00J3Y
ref: 4
FOR K1A

EMBLEM,FRAME COVER

€ 14.50

5

5314548B00
ref: 5

CUSHION,FR FENDER

€ 1.50

6

0913606105
ref: 6

SCREW(6X20)

€ 2.00

7

0932010045
ref: 7

CUSHION

€ 3.50

8

0918006286
ref: 8

SPACER(6.5X10X9.4)

€ 2.50

9

0932009016
ref: 9

CUSHION

€ 2.50

10

0918006263
ref: 10

SPACER(6.5X9X9)

€ 2.00

11

0932008018
ref: 11

CUSHION

€ 4.00

12

0932110018
ref: 12

CUSHION

€ 5.00

13

4751104F00291
ref: 13

COVER,FRAME FR,R

€ 82.50

14

4716604F00
ref: 14

SHIELD, FRONT RH UPPER

€ 23.00

15

4716704F00
ref: 15

SHIELD, FRONT RH LOWER

€ 23.00

16

4761104F00291
ref: 16

COVER,FRAME FR,L

€ 82.50

17

0913906042
ref: 17

SCREW(6X30)

€ 7.50

18

0932009016
ref: 18

CUSHION

€ 2.50

19

0918006263
ref: 19

SPACER(6.5X9X9)

€ 2.00

20

0916006132
ref: 20

WASHER(6.5X18X1.6)

€ 2.00

21

0932008028
ref: 21

CUSHION

€ 2.50
