REAR CALIPER (MODEL V/W)

XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

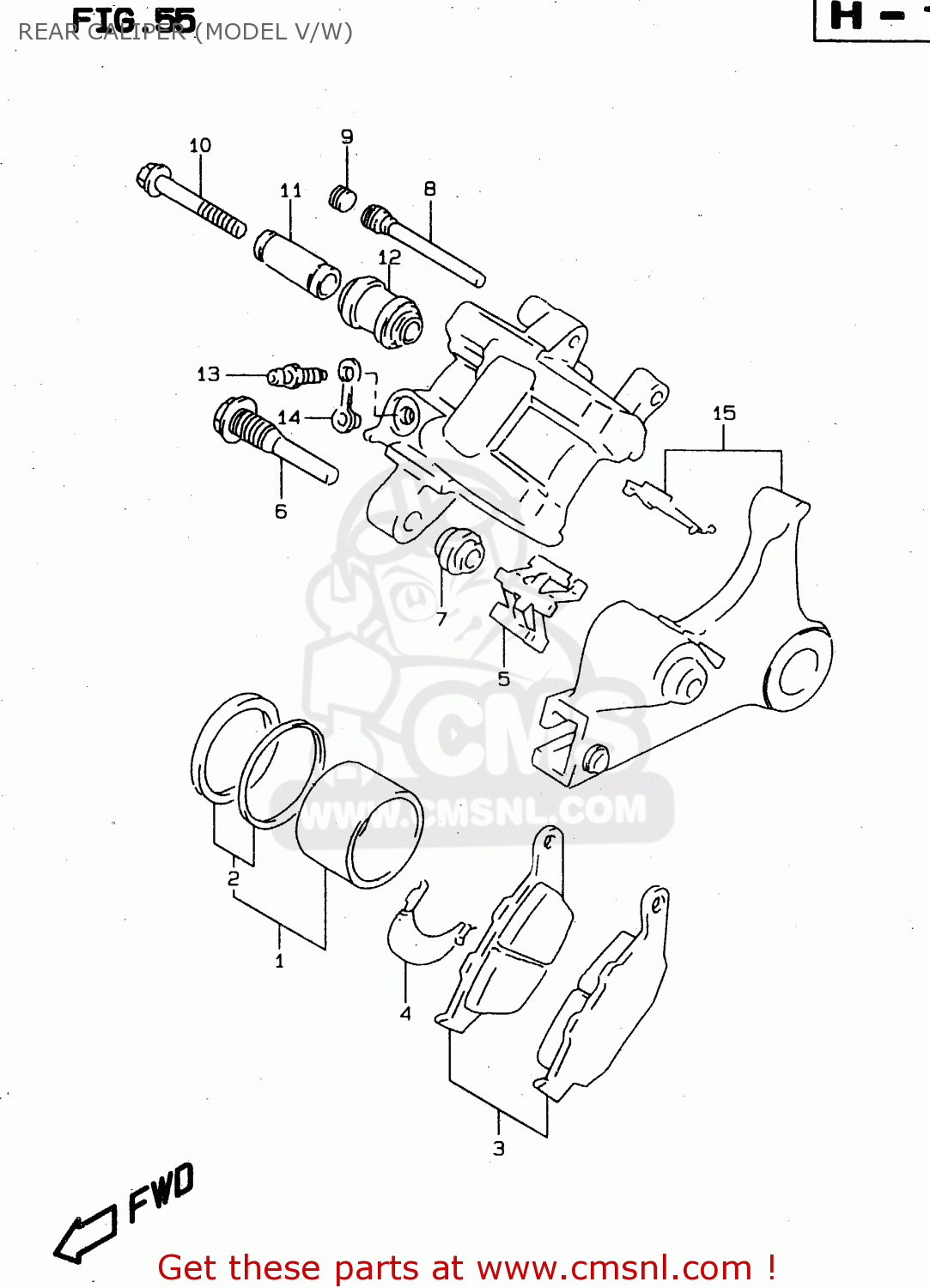

Rear caliper (model v/w) diagram XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

6910004F00
ref: 0
->69100-04F01, MODEL

CALIPER, REAR

€ 573.50

6910004F01
ref: 0
MODEL W, F.NO.JS1AC1

CALIPER ASSY,RR

€ 573.50

6910004810
ref: 1

PISTON SET

€ 65.50

6910004820
ref: 2

SEAL SET,PISTON

€ 12.50

6910004830
ref: 3

PAD SET (NAS)

€ 63.00

6913204F00
ref: 4

SHIM

€ 7.00

6911504F00
ref: 5

SPRING,PAD

€ 8.00

6910504F00
ref: 6

BOLT

€ 11.50

5930314500
ref: 7

BOOT

€ 5.50

5934514600
ref: 8
MODEL V, MODEL W, ~F

PIN,HANGER

€ 10.50

5914521E10
ref: 8
MODEL W, F.NO.JS1AC1

PIN,HANGER

€ 15.00

5914621E10
ref: 9

PLUG,PIN

€ 6.50

6918204F00
ref: 10

BOLT

€ 7.50

6918504F00
ref: 11

SLEEVE

€ 12.50

6918604F00
ref: 12

BOOT,SLEEVE

€ 11.00

5912101A00
ref: 13

BLEEDER

€ 8.50

5912201A00
ref: 14

CAP,BLEEDER

€ 4.50

6915004F00
ref: 15

BRACKET

€ 92.00
