SEAT

XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

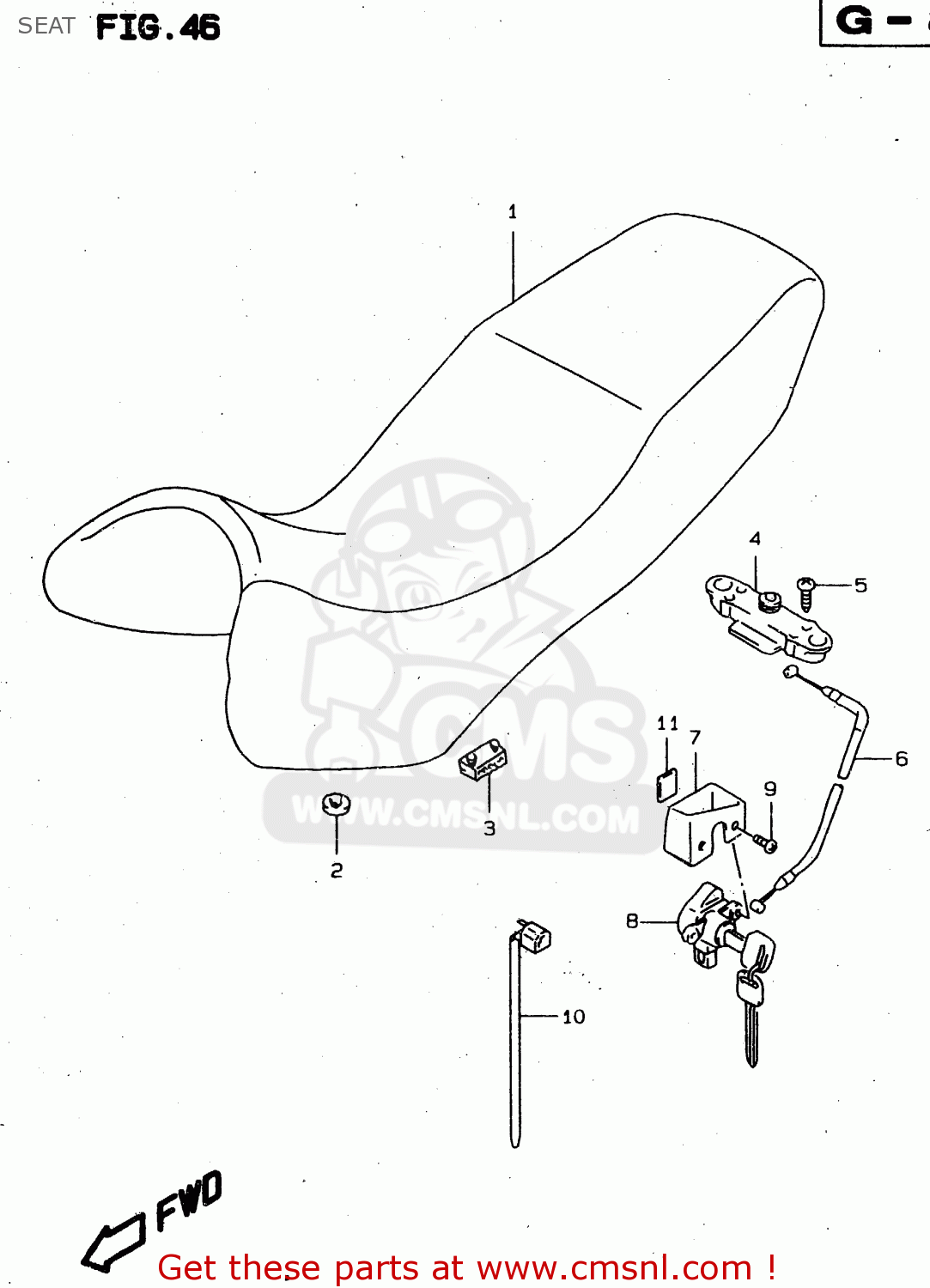

Seat diagram XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

4510004F00H3S
ref: 1
MODEL V FOR G7G

SEAT SET

€ 377.00

4510004F00H3T
ref: 1
MODEL V FOR H3P, H3R

SEAT SET

€ 377.00

4510004F00J9Y
ref: 1
MODEL W FOR J9W

SEAT SET (BLACK/MAROON)

€ 351.50

4510004F00J9Z
ref: 1
MODEL W FOR H3P, K1A

SEAT SET (2AX,

€ 377.50

4510004F00J9Z
ref: 1
MODEL X, FOR 33J, Y0

SEAT SET (2AX,

€ 377.50

4514836C00
ref: 2

CUSHION,SEAT

€ 4.00

4514931300
ref: 3

CUSHION,SEAT(40X20X15)

€ 2.00

4522013601
ref: 4

LOCK ASSY,SEAT STRIKER

€ 47.00

0211206303
ref: 5

SCREW 6X30

€ 2.50

4528004F00
ref: 6

CABLE,SEAT LOCK

€ 24.00

4528904F00
ref: 7

GUARD, SEAT LOCK

€ 8.50

9570010833
ref: 8

LOCK SET,SEAT & HELMET

€ 99.50

0913906092
ref: 9

SCREW(6X14)

€ 3.50

0940718402
ref: 10

CLAMP(L:165)

€ 2.50

4428129C00
ref: 11

CUSHION

€ 2.50
