CARRIER

XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

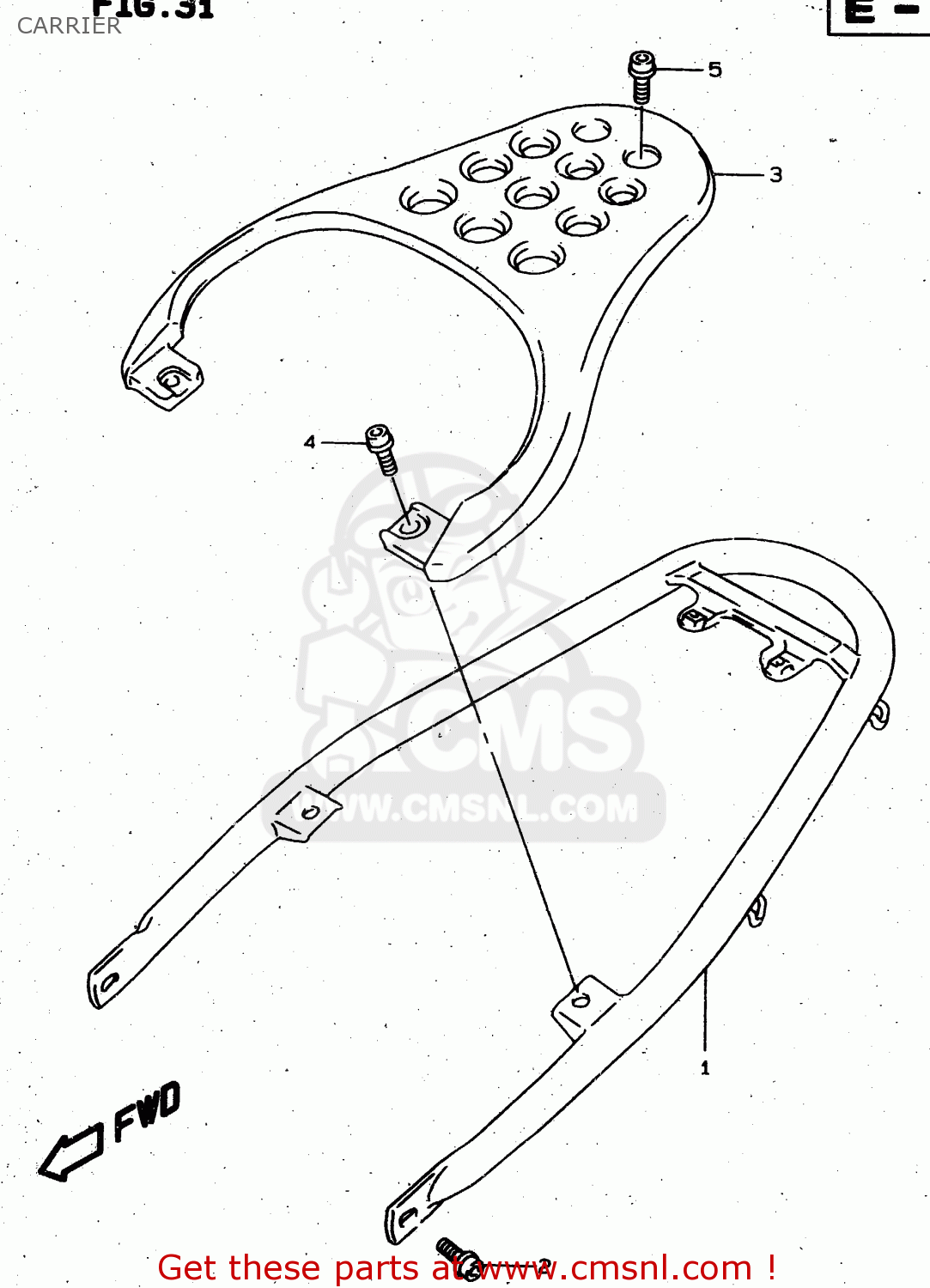

Carrier diagram XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

CARRIER XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

CARRIER XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4120004F00Y0W
ref: 1
MODEL V FOR G7G

FRAME,RR(ORANGE)

€ 109.50

1

4120004F00Y2D
ref: 1
MODEL V FOR H3P

FRAME,RR(SILVER)

€ 234.00

1

4120004F00Y0P
ref: 1
MODEL V FOR H3R

FRAME, REAR (BLUE)

€ 109.50

1

4120004F00Y2D
ref: 1
MODEL W/X

FRAME,RR(SILVER)

€ 234.00

2

0712008163
ref: 2

BOLT

€ 3.00

3

4631104F00Y2D
ref: 3

CARRIER,SPORT

€ 154.50

4

0712008303
ref: 4

BOLT

€ 3.50

5

0712008203
ref: 5

BOLT

€ 3.00
