BATTERY

XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

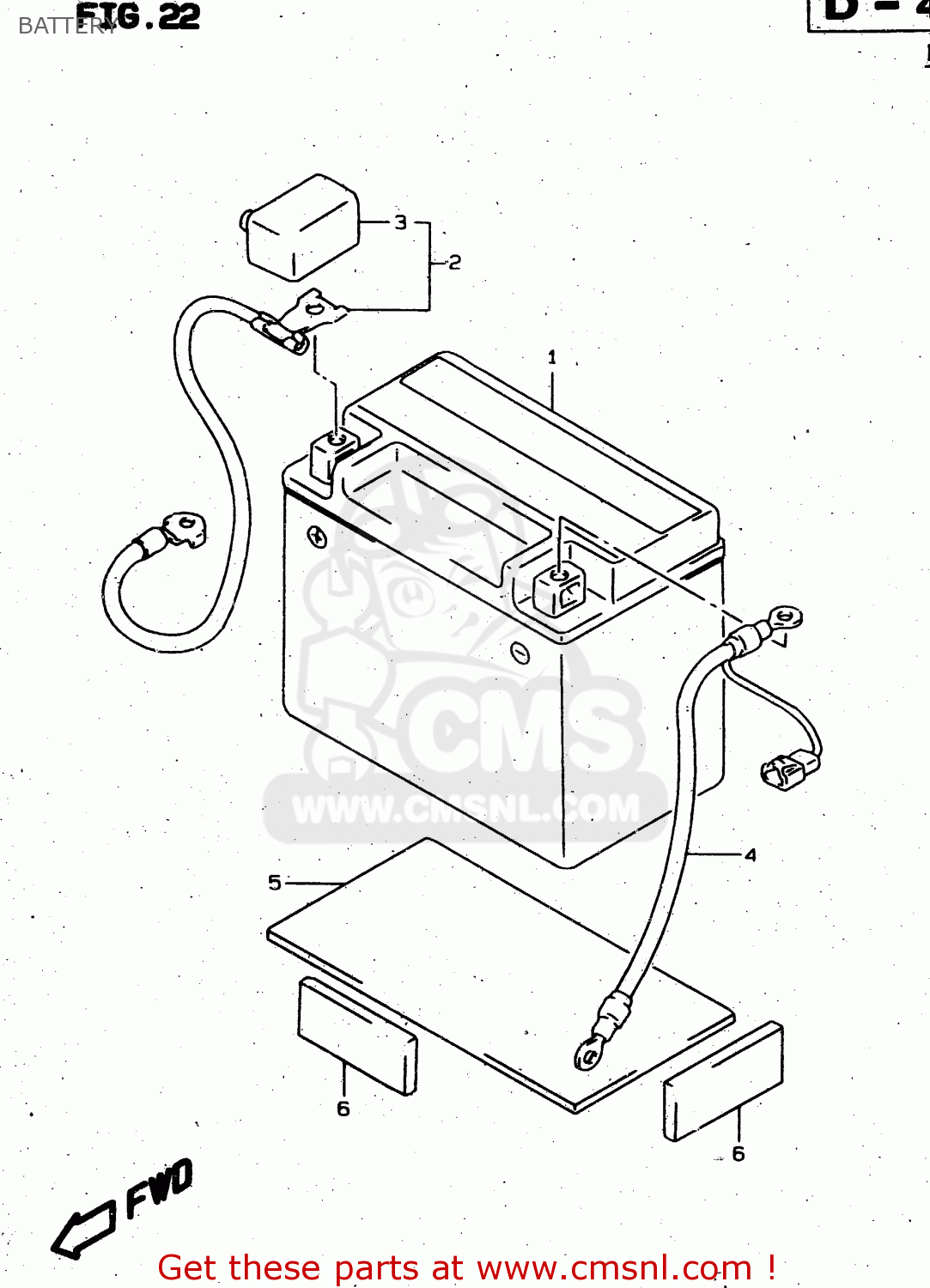

Battery diagram XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

BATTERY XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

BATTERY XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3361032C10
ref: 1

BATTERY ASSY(YTX9-BS,12V8AH)

€ 108.50

2

3382004F00
ref: 2

WIRE,BATTERY PLUS

€ 19.50

3

3362405A00
ref: 3

CAP,BATTERY PLUS TERMINAL

€ 4.50

4

3386004F00
ref: 4

WIRE,BATTERY MINUS

€ 16.50

5

3365137000
ref: 5
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

6

3365228000
ref: 6

CUSHION 20X45X6

€ 6.00
