REAR COMBINATION LAMP

XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

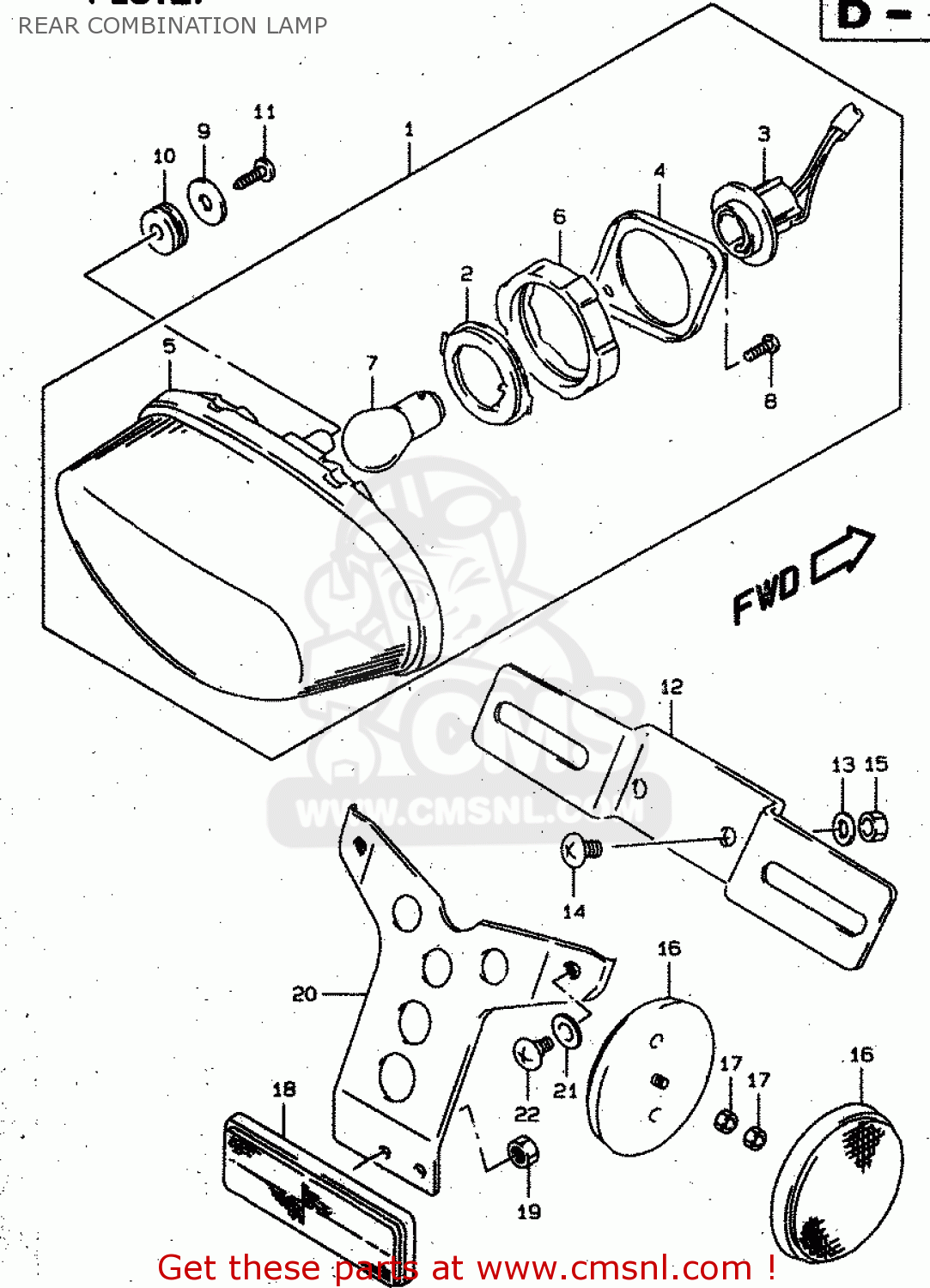

Rear combination lamp diagram XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

REAR COMBINATION LAMP XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
REAR COMBINATION LAMP XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
REAR COMBINATION LAMP XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
3571042E10
ref: 1
MODEL V/W
LAMP ASSY,REAR
€ 270.50
1
3571042E11
ref: 1
MODEL X
LAMP ASSY,RR COMBINATION
3571042E11
€ 270.50
2
3571648B21
ref: 2
PLATE NO.1
3571648B21
€ 25.00
3
3571842E10
ref: 3
SOCKET & CORD
3571842E10
€ 56.50
4
3573648B21
ref: 4
PLATE NO.2
€ 16.50
5
3574042E10
ref: 5
MODEL V/W
LAMP UNIT
€ 92.00
5
3574042E11
ref: 5
MODEL X
LAMP UNIT
3574042E11
€ 92.00
6
3576542E00
ref: 6
CUSHION
€ 10.50
7
0947112083
ref: 7
BULB(12V21/5W)
0947112083
€ 6.00
8
0321104123
ref: 8
SCREW
0321104123
€ 1.50
9
0916005501
ref: 9
WASHER(5.5X20X1.2)
0916005501
€ 2.00
10
0932010015
ref: 10
CUSHION
0932010015
€ 2.50
11
0354105123
ref: 11
SCREW
0354105123
€ 2.00
12
3592704F00
ref: 12
BRACKET,LICENSE PLATE
€ 8.00
12
3592704F10
ref: 12
E18
BRACKET,LICENSE PLATE
€ 10.50
13
0916006088
ref: 13
WASHER(6.5X20X1.6)
0916006088
€ 2.00
14
0214206123
ref: 14
SCREW 6X12
0214206123
€ 2.00
15
0831000063
ref: 15
NUT 6MM
0831000063
€ 2.00
16
3595014A10
ref: 16
E18
REFLECTOR,REFLEX
3595014A10
€ 11.00
17
0831000053
ref: 17
E18
NUT
€ 2.50
18
3597024D60
ref: 18
REFLECTOR ASSY,RR
3597024D60
€ 19.50
19
0831000053
ref: 19
NUT
€ 2.50
20
3597433E00
ref: 20
BRACKET,RR REFLECTOR
3597433E00
€ 12.00
21
0916008114
ref: 21
WASHER(8.5X18X1.6)
0916008114
€ 2.50
22
0912266004
ref: 22
<-09139-06081
SCREW (6X14)
€ 2.00
up
