CYLINDER

XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

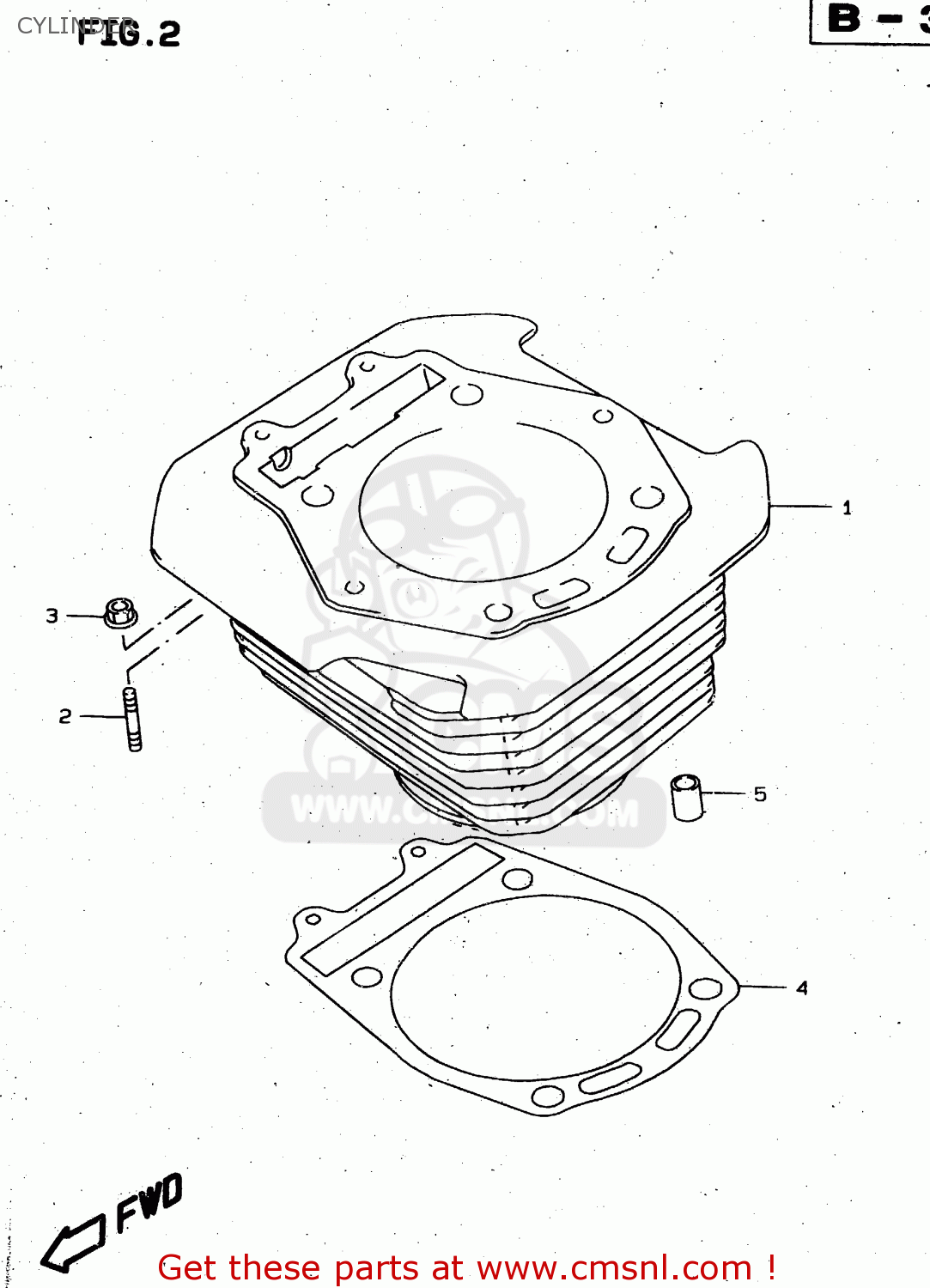

Cylinder diagram XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

CYLINDER XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

CYLINDER XF650 1999 (X) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1121132E020F0
ref: 1

CYLINDER

€ 759.50

2

0142106208
ref: 2

STUD 6X20

€ 2.50

3

0831610063
ref: 3

NUT

€ 2.50

4

1124104F00
ref: 4

GASKET,CYLINDER (NAS)

€ 17.00

5

0421113189
ref: 5

PIN

€ 2.50
