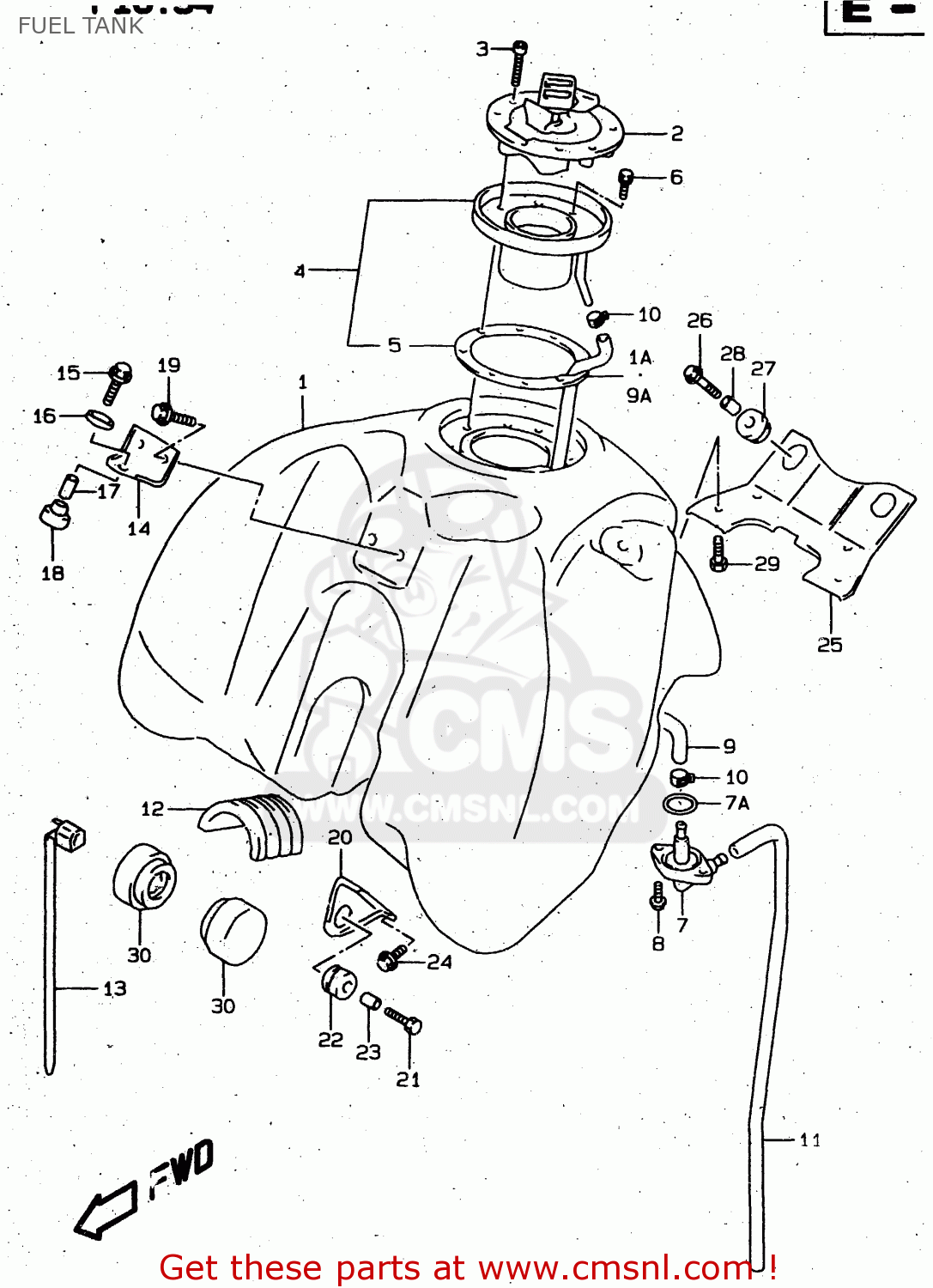

FUEL TANK

ref

part #

description

quantity

1

4410004820
ref: 1

TANK SET,FUEL

€ 476.00

1A

4419404F00
ref: 1A

PACKING,FUEL TANK,INLET (NAS)

€ 9.00

2

4420033870
ref: 2

CAP SET,FUEL TANK

€ 253.50

3

4424404F00
ref: 3

BOLT, CAP

€ 2.50

4

4419004820
ref: 4

INLET SET,FUEL

€ 56.50

5

4419404F00
ref: 5

PACKING,FUEL TANK,INLET (NAS)

€ 9.00

6

0911705003
ref: 6

BOLT 5X10

€ 2.00

7

4440004F00
ref: 7

JOINT ASSY,FUEL TANK WATER DRN

€ 14.50

7A

4434804F00
ref: 7A

O RING,JOINT

€ 6.50

8

0211276163
ref: 8

SCREW

€ 2.00

9

4442004820
ref: 9

HOSE SET, INNER

€ 7.50

9A

4419404F00
ref: 9A

PACKING,FUEL TANK,INLET (NAS)

€ 9.00

10

0940110409
ref: 10

CLIP

€ 2.50

11

4442304F00
ref: 11

HOSE,WATER DRAIN OUTER

€ 15.00

12

4454113E00
ref: 12
MODEL V

CUSHION,FUEL TANK UPR

€ 11.00

12

4454104F00
ref: 12
MODEL W/X

CUSHION,FUEL TANK LWR

€ 8.00

13

0940725402
ref: 13

CLAMP(L:250)

€ 4.50

14

4412104F00
ref: 14

BRACKET,FUEL TANK FR UPR

€ 8.00

15

0911606172
ref: 15

BOLT(6X30)

€ 2.50

16

4451242E00
ref: 16

CUSHION,FUEL TANK RR

€ 3.50

17

0918006271
ref: 17

SPACER(6.5X9X18)

€ 2.00

18

0932010020
ref: 18

CUSHION

€ 4.00

19

0155006103
ref: 19

BOLT

€ 2.50

20

4413004F00
ref: 20

BRACKET,FUEL TANK SIDE

€ 8.50

21

0911606147
ref: 21

BOLT(6X25)

€ 4.00

22

4451204F00
ref: 22

CUSHION,FUEL TANK SIDE

€ 3.00

23

0918006268
ref: 23

SPACER(6.5X9X13.5)

€ 2.00

24

0155006103
ref: 24

BOLT

€ 2.50

25

4414004F00
ref: 25

BRACKET,FUEL TANK RR

€ 20.00

26

0911606147
ref: 26

BOLT(6X25)

€ 4.00

27

4451204F00
ref: 27

CUSHION,FUEL TANK SIDE

€ 3.00

28

0918006268
ref: 28

SPACER(6.5X9X13.5)

€ 2.00

29

0155006103
ref: 29

BOLT

€ 2.50

30

4451504F00
ref: 30

CUSHION,FUEL TANK SIDE INNER

€ 10.00

all assemblies
