CAM CHAIN

DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

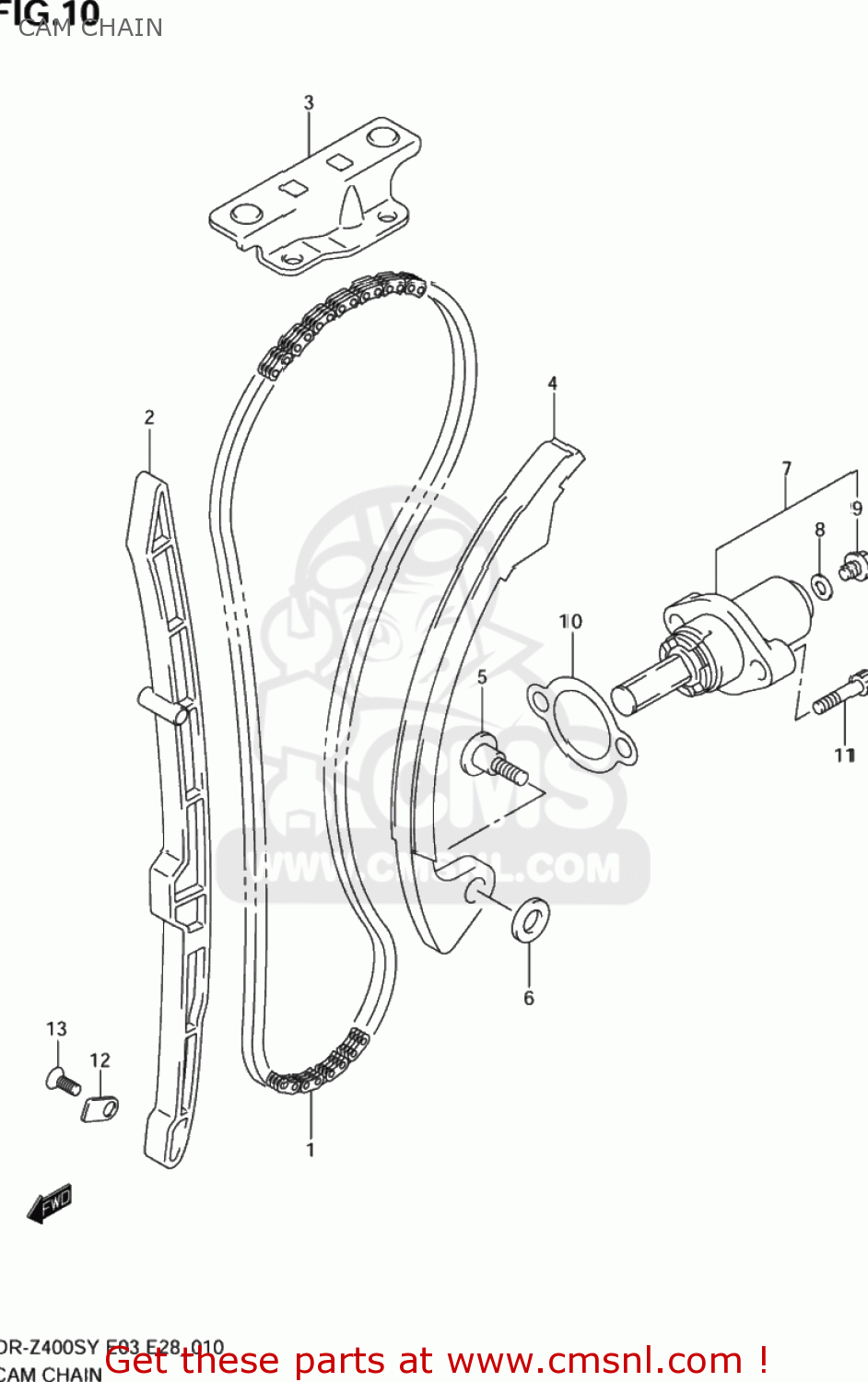

Cam chain diagram DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

CAM CHAIN DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

CAM CHAIN DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

1276029F00
ref: 1
12760-29F01

CHAIN COMP,CAMSHAFT DRIVE

€ 71.50

2

1277129F00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 20.00

3

1278229F00
ref: 3

GUIDE,CAM CHAIN NO.2

€ 17.00

4-1

1281129F00
ref: 4-1
12830-29810

TENSIONER,CAM CHAIN

€ 82.00

4-2

1281129F10
ref: 4-2

TENSIONER,CAM CHAIN

€ 38.50

5

1281235C00
ref: 5

BOLT,CAM CHAIN TENSIONER

€ 7.00

6

0821106181
ref: 6

WASHER

€ 2.00

7-1

1283029F00
ref: 7-1
12830-29F01

ADJUSTER ASSEMBLY,TENSIONER

€ 79.50

7-2

1283029F01
ref: 7-2

ADJUSTER ASSY,TENSIONER

€ 79.50

7-3

1283029F10
ref: 7-3

ADJUSTER ASSY,TENSIONER

€ 80.50

8

1283724F10
ref: 8

GASKET,TENSIONER ADJUSTER (NAS)

€ 4.00

9

1283305A00
ref: 9

PLUG,FR TENSIONER ADJ

€ 9.00

10

1283724A10
ref: 10

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

11

0713006253
ref: 11
07130-0625B

BOLT,CL.COVER

€ 3.00

12

1277324F00
ref: 12

RETAINER,CAM CHAIN GUIDE NO.1

€ 2.00

13

0912606011
ref: 13

SCREW(6X12)

€ 2.00
