CRANK BALANCER

DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

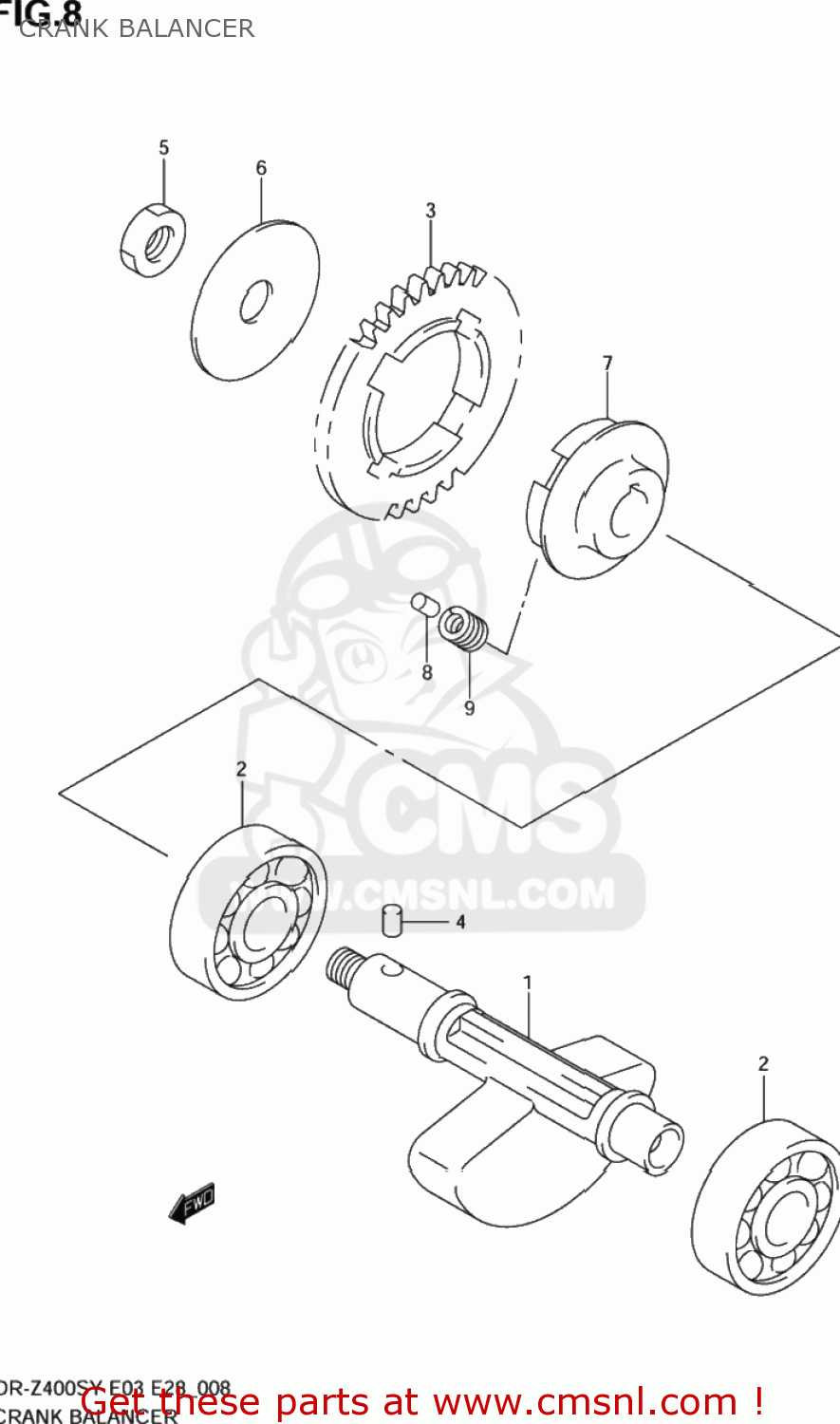

Crank balancer diagram DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1265129F00
ref: 1

BALANCER,CRANK

€ 89.50

0926215030
ref: 2

BEARING(15X42X13)

€ 24.50

1266629F10
ref: 3
12666-29F11

GEAR,CRANK BALANCER DRIVEN

€ 82.50

0926105005
ref: 4

PIN(5X8)

€ 1.50

0914012038
ref: 5

NUT

€ 3.50

0918112009
ref: 6

SHIM(12.2X47X1.6)

€ 4.50

1266929F00
ref: 7
12669-29F01

RACE,CRANK BALANCER DRIVEN GEAR

€ 46.50

0920204017
ref: 8

PIN(4.5X9.5)

€ 3.00

0944009031
ref: 9

SPRING

€ 3.00
