FRAME COVER (MODEL K1)

DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

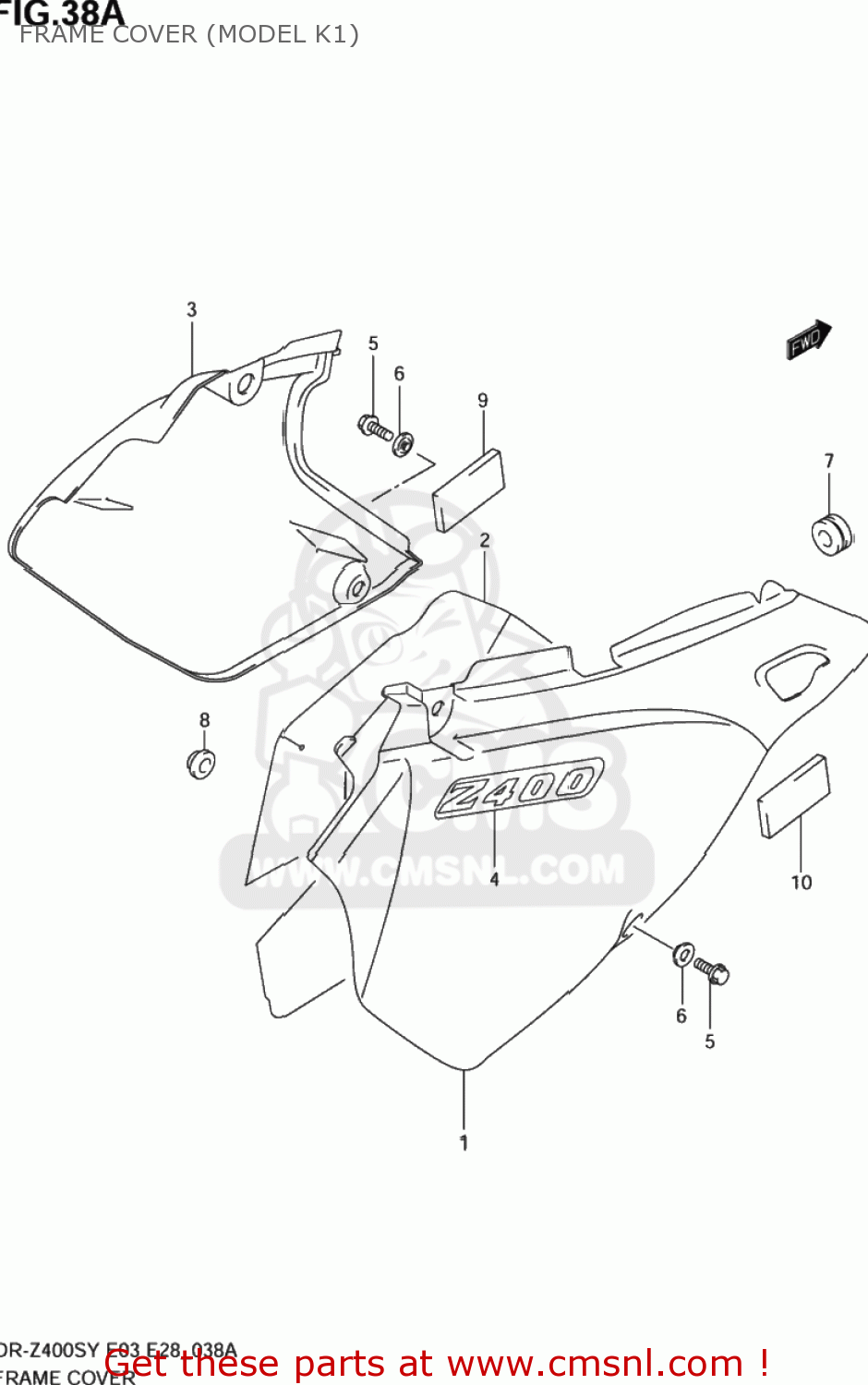

Frame cover (model k1) diagram DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1-1

4711129F1030H
ref: 1-1
47111-29FC0-30H

COVER,FRAME,RIGHT (WHITE)

€ 48.00

1-2

4711129F10YR1
ref: 1-2

COVER,FRAME,R(YELLOW)

€ 0.00

4716629F00
ref: 2

SHIELD,FRAME COVER,R

€ 37.50

3-1

4721129F1030H
ref: 3-1
47211-29FA0-30H

COVER,FRAME,LEFT

€ 34.00

3-2

4721129F10YR1
ref: 3-2
47211-29F10-YU1

COVER, FRAME LH (YELLOW)

€ 36.00

3-3

4721129F3030H
ref: 3-3
47211-29FC0-30H

COVER,FRAME,LEFT (WHITE)

€ 0.00

3-4

4721129F30YR1
ref: 3-4

COVER, FRAME LH (YELLOW)

€ 0.00

4-1

6813129F10CW7
ref: 4-1

EMBLEM,FRAME COVER

€ 9.50

4-2

6813129F10FR4
ref: 4-2

EMBLEM,FRAME COVER

€ 8.50

0154706163
ref: 5
01547-0616B

BOLT

€ 2.50

0916906041
ref: 6

WASHER

€ 2.00

0932006504
ref: 7

CUSHION

€ 4.00

0932110018
ref: 8

CUSHION

€ 5.00

4716129F00
ref: 9

CUSHION,FRAME COVER,L

€ 3.00

7176265G10
ref: 10

CUSHION

€ 4.50
