MAGNETO

DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

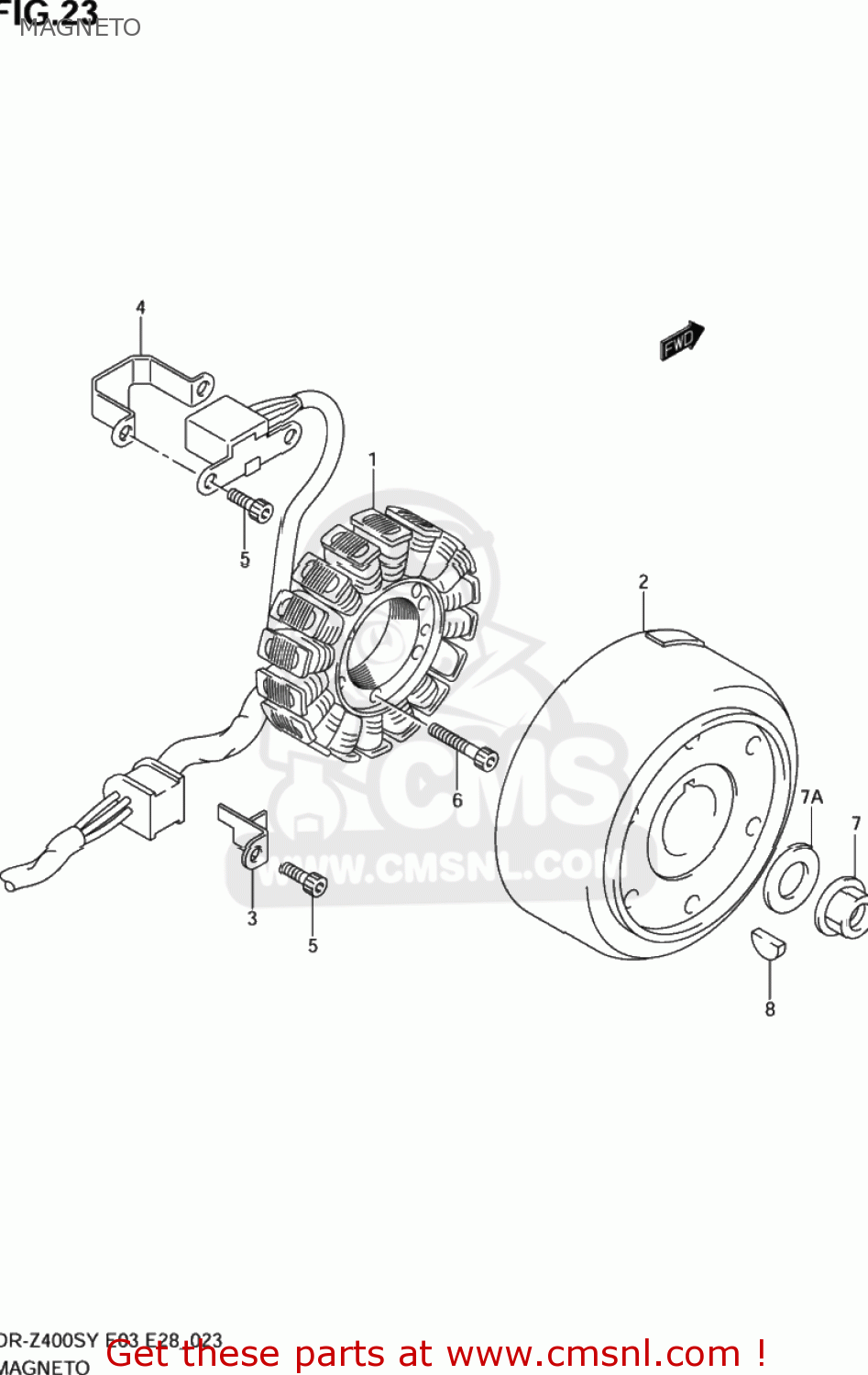

Magneto diagram DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

3210129F00
ref: 1

STARTER ASSY

€ 523.00

3210229F00
ref: 2

ROTOR ASSY

€ 413.00

3237113E00
ref: 3

CLAMP,MAGNETO LEAD NO.1

€ 3.00

3237114D01
ref: 4

CLAMP,MAGNETO LEAD WIRE

€ 3.50

0713005123
ref: 5
07130-0512B

BOLT

€ 2.50

0713005253
ref: 6
07130-0525B

BOLT

€ 2.00

0915912055
ref: 7

NUT

€ 3.50

0916012051
ref: 7A

WASHER(12X27X2)

€ 1.50

0942004008
ref: 8

KEY

€ 3.50
