FRAME COVER (MODEL K3/K4)

DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

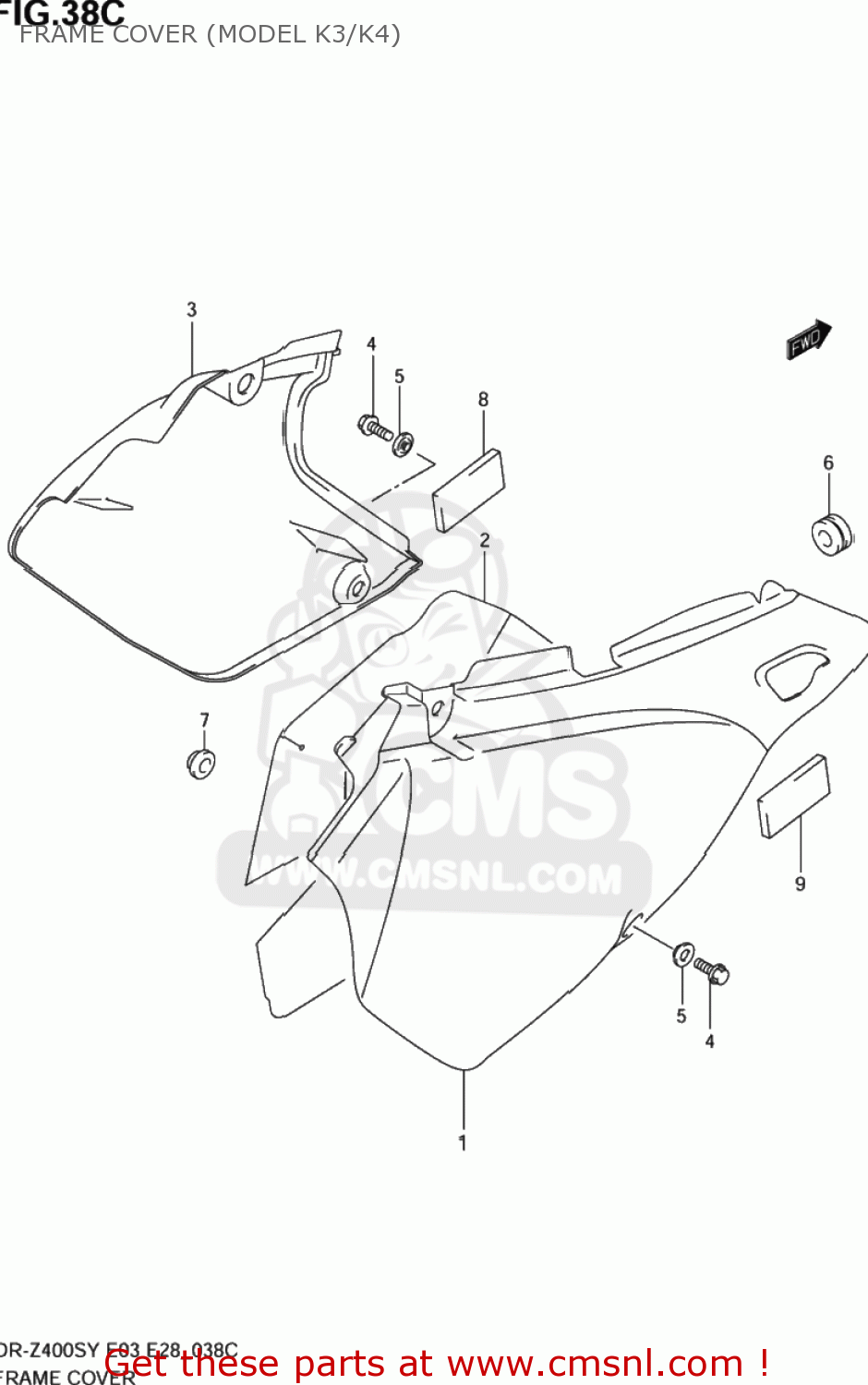

Frame cover (model k3/k4) diagram DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

4711129F1030H
ref: 1
47111-29FC0-30H

COVER,FRAME,RIGHT (WHITE)

€ 48.00

4716629F00
ref: 2

SHIELD,FRAME COVER,R

€ 37.50

3-1

4721129F1030H
ref: 3-1
47211-29FA0-30H

COVER,FRAME,LEFT

€ 34.00

3-2

4721129F3030H
ref: 3-2
47211-29FC0-30H

COVER,FRAME,LEFT (WHITE)

€ 0.00

0155006163
ref: 4
01550-0616A

BOLT

€ 2.50

0916906041
ref: 5

WASHER

€ 2.00

0932006504
ref: 6

CUSHION

€ 4.00

0932110018
ref: 7

CUSHION

€ 5.00

4716129F00
ref: 8

CUSHION,FRAME COVER,L

€ 3.00

7176265G10
ref: 9

CUSHION

€ 4.50
