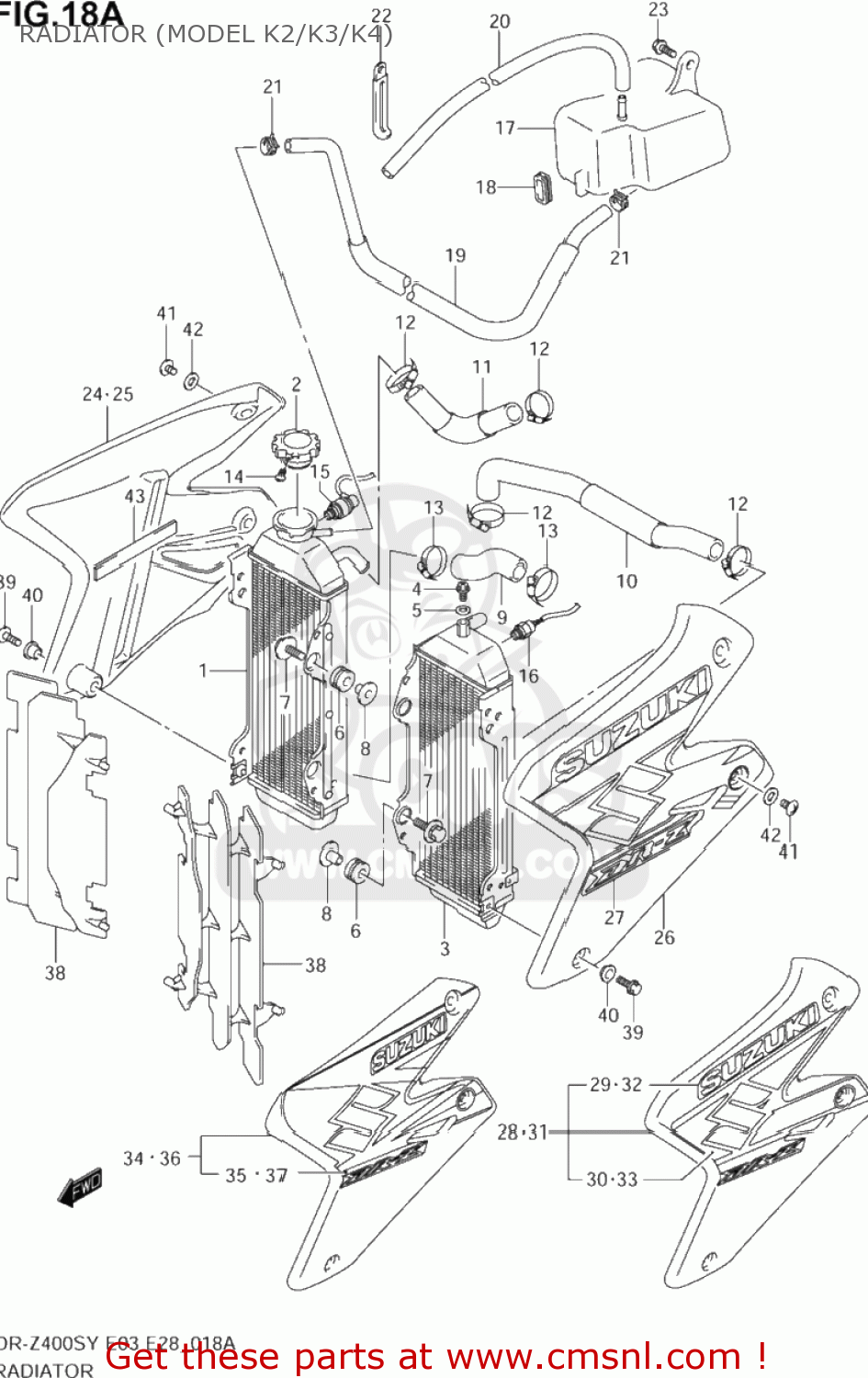

RADIATOR (MODEL K2/K3/K4)

ref

part #

description

quantity

1

1771029F10
ref: 1
17710-29F40

RADIATOR COMP,WATER,RIGHT

€ 371.00

2

1773019D11
ref: 2

CAP,RADIATOR(1.1)

€ 33.50

3

1772029F10
ref: 3
17720-29F40

RADIATOR COMP,WATER,LEFT

€ 383.50

4

1756850F00
ref: 4

UNION BOLT,AIR VENT

€ 3.50

5

0916806026
ref: 5

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

6

1778719A00
ref: 6

CUSHION,RADIATOR LWR

€ 3.50

7

0911606147
ref: 7

BOLT(6X25)

€ 4.00

8

0918006243
ref: 8

SPACER(6.5X10.5X14.1)

€ 4.50

9

1785129F10
ref: 9

HOSE,RADIATOR INLET

€ 11.00

10

1785229F30
ref: 10

HOSE,RADIATOR OUTLET

€ 32.00

11

1785329F10
ref: 11

HOSE,RADIATOR JOINT

€ 17.00

12

0940228511
ref: 12

CLAMP

€ 8.50

13

0940232511
ref: 13

CLAMP

€ 11.50

14

1773303D10
ref: 14

SCREW,RADIATOR CAP

€ 2.00

15

3485003D00
ref: 15

SWITCH ASSY,WATER TEMP

€ 85.00

16

1768024A30
ref: 16

SWITCH,FAN

€ 82.50

17

1791129F11
ref: 17

TANK,RESERVOIR

€ 39.50

18

1791329F00
ref: 18

CUSHION,RESERVOIR TANK

€ 3.00

19

1798129F01
ref: 19

HOSE,RESERVOIR TANK INLET

€ 13.50

20

093525090100B
ref: 20

HOSE(5X9X2000)

€ 19.50

21

0940108411
ref: 21

CLIP

€ 3.00

22-1

0940408205
ref: 22-1

CLAMP(L:45 T:0.6)

€ 3.00

22-2

0940406432
ref: 22-2

CLAMP(L:65)

€ 2.50

23

0155006123
ref: 23
01550-0612A

BOLT

€ 2.50

24-1

1776029F40YJ4
ref: 24-1

COVER,RADIATOR,R

€ 55.50

24-2

1776029F40YU1
ref: 24-2

COVER,RADIATOR,R

€ 55.50

25-1

6866029F00HB1
ref: 25-1

TAPE SET,RADIATOR COVER,R

€ 42.00

25-2

6866029F00GY7
ref: 25-2

TAPE SET,RADIATOR COVER,R

€ 42.00

26-1

1777029F40YJ4
ref: 26-1

COVER,RADIATOR,L(BLUE)

€ 52.00

26-2

1777029F40YU1
ref: 26-2

COVER,RADIATOR,L

€ 68.00

27-1

6867029F00HB1
ref: 27-1

TAPE SET,RADIATOR COVER,L

€ 42.00

27-2

6867029F00GY7
ref: 27-2

TAPE SET,RADIATOR COVER,L

€ 43.00

28-1

1776029F50YJ4
ref: 28-1

COVER,RADIATOR,R(BLUE)

€ 116.00

28-2

1776029F50YU1
ref: 28-2

COVER,RADIATOR,R(YELLOW)

€ 116.00

29-1

6866129F00KW4
ref: 29-1

EMBLEM,SUZUKI

€ 11.50

29-2

6866129F00GY8
ref: 29-2

EMBLEM,SUZUKI

€ 23.00

30-1

6866529F50KW1
ref: 30-1

TAPE,RADIATOR COVER,R

€ 118.50

30-2

6866529F50KH2
ref: 30-2

TAPE,RADIATOR COVER,R

€ 89.50

31-1

1777029F50YJ4
ref: 31-1

COVER,RADIATOR,L(BLUE)

€ 144.00

31-2

1777029F50YU1
ref: 31-2

COVER,RADIATOR,L(YELLOW)

€ 160.50

32-1

6866129F00KW4
ref: 32-1

EMBLEM,SUZUKI

€ 11.50

32-2

6866129F00GY8
ref: 32-2

EMBLEM,SUZUKI

€ 23.00

33-1

6867529F50KW1
ref: 33-1

TAPE,RADIATOR COVER,L

€ 91.00

33-2

6867529F50KH2
ref: 33-2

TAPE,RADIATOR COVER,L

€ 85.00

34-1

1776029F60YJ4
ref: 34-1

COVER,RADIATOR,R

€ 124.50

34-2

1776029F60YU1
ref: 34-2

COVER,RADIATOR,R

€ 129.00

35-1

6866529F60NV2
ref: 35-1

TAPE,RADIATOR COVER,R

€ 81.50

35-2

6866529F60NV1
ref: 35-2

TAPE,RADIATOR COVER,R

€ 93.50

36-1

1777029F60YJ4
ref: 36-1

COVER,RADIATOR,L

€ 94.50

36-2

1777029F60YU1
ref: 36-2

COVER,RADIATOR,L

€ 93.00

37-1

6867529F60NV2
ref: 37-1

TAPE, RADIATOR COVER LH

€ 88.00

37-2

6867529F60NV1
ref: 37-2

TAPE,RADIATOR COVER,L

€ 107.00

38

1783137E11
ref: 38

LOUVER,RADIATOR

€ 11.50

39

0214206163
ref: 39
02142-0616A

SCREW

€ 2.50

40

0916906060
ref: 40

WASHER

€ 2.00

41

0214206083
ref: 41
02142-0608A

SCREW

€ 1.50

42

0916006124
ref: 42
09160-06126

WASHER

€ 2.00

43

1779829E40
ref: 43
47451-38A01

CUSHION,COVER SIDE

€ 3.00
