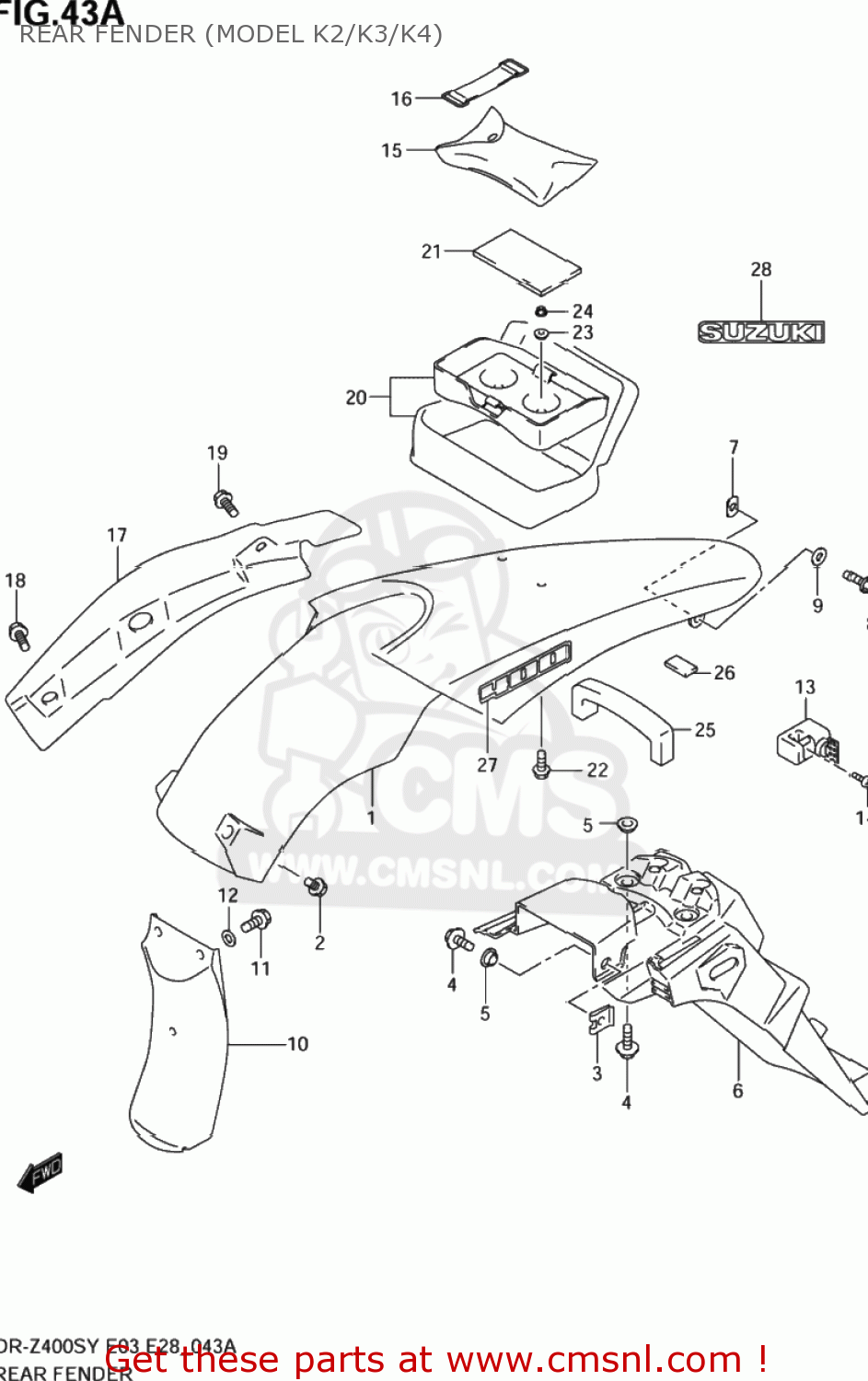

REAR FENDER (MODEL K2/K3/K4)

ref

part #

description

quantity

1-1

6311329F40YU1
ref: 1-1
63113-29FA0-YU1

FENDER,REAR

€ 105.00

1-2

6311329F40YJ4
ref: 1-2
63113-29F41-YJ4

FENDER,REAR (BLUE)

€ 79.50

2

0911106066
ref: 2

BOLT(6X16)

€ 2.50

3

6331213E00
ref: 3
63312-13E01

PLATE,REAR FENDER FITTING

€ 4.00

4

0911606115
ref: 4

BOLT(6X20)

€ 2.00

5

0916906073
ref: 5

WASHER

€ 4.00

6

6331129F30
ref: 6

EXTENSION,RR FENDER

€ 61.00

7

9448424F00
ref: 7

NUT,COWL

€ 4.00

8

0155005123
ref: 8
01550-0512B

BOLT

€ 2.50

9

0916905021
ref: 9
09169-05024

WASHER (5X14X1)

€ 2.00

10

6341129F00
ref: 10

MUDGUARD,RR FENDER FR

€ 10.00

11

0154706163
ref: 11
01547-0616B

BOLT

€ 2.50

12

0916906045
ref: 12
09169-06055

WASHER

€ 2.50

13

9570044810
ref: 13
95700-41821

LOCK SET,HELMET

€ 88.00

14

0913906089
ref: 14

SCREW(6X14)

€ 2.50

15

0980021042
ref: 15

TOOL ASSY

€ 48.50

16

0946200008
ref: 16

BAND

€ 4.50

17

6311429F00
ref: 17

MUDGUARD,RR FENDER,R

€ 16.50

18

0911106081
ref: 18

BOLT(6X18)

€ 4.50

19

6316143E00
ref: 19

BOLT

€ 3.00

20

9490029FA0
ref: 20
94900-29FA1

BAG ASSY,SEAT TAIL

€ 106.00

21

9491544E00
ref: 21

CUSHION,RR BAG

€ 6.50

22

0155006203
ref: 22
01550-0620A

BOLT

€ 2.50

23

0916906063
ref: 23

WASHER

€ 3.50

24

0915906078
ref: 24

NUT

€ 2.50

25

4716129B00
ref: 25

SEALER,SIDE COVER L

€ 3.50

26

3365137000
ref: 26

PROTECTOR(170X95X3.0)

€ 5.00

27-1

6817129F00GY8
ref: 27-1

EMBLEM,RR FENDER

€ 11.50

27-2

6817129F00FT9
ref: 27-2

EMBLEM,RR FENDER

€ 8.50

27-3

6817129F00HU8
ref: 27-3

EMBLEM,RR FENDER

€ 8.00

28-1

6872113A00GY8
ref: 28-1

EMBLEM,RR

€ 7.50

28-2

6872113A00HU8
ref: 28-2

EMBLEM,RR

€ 9.00

all assemblies
