FUEL TANK (MODEL K1)

DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

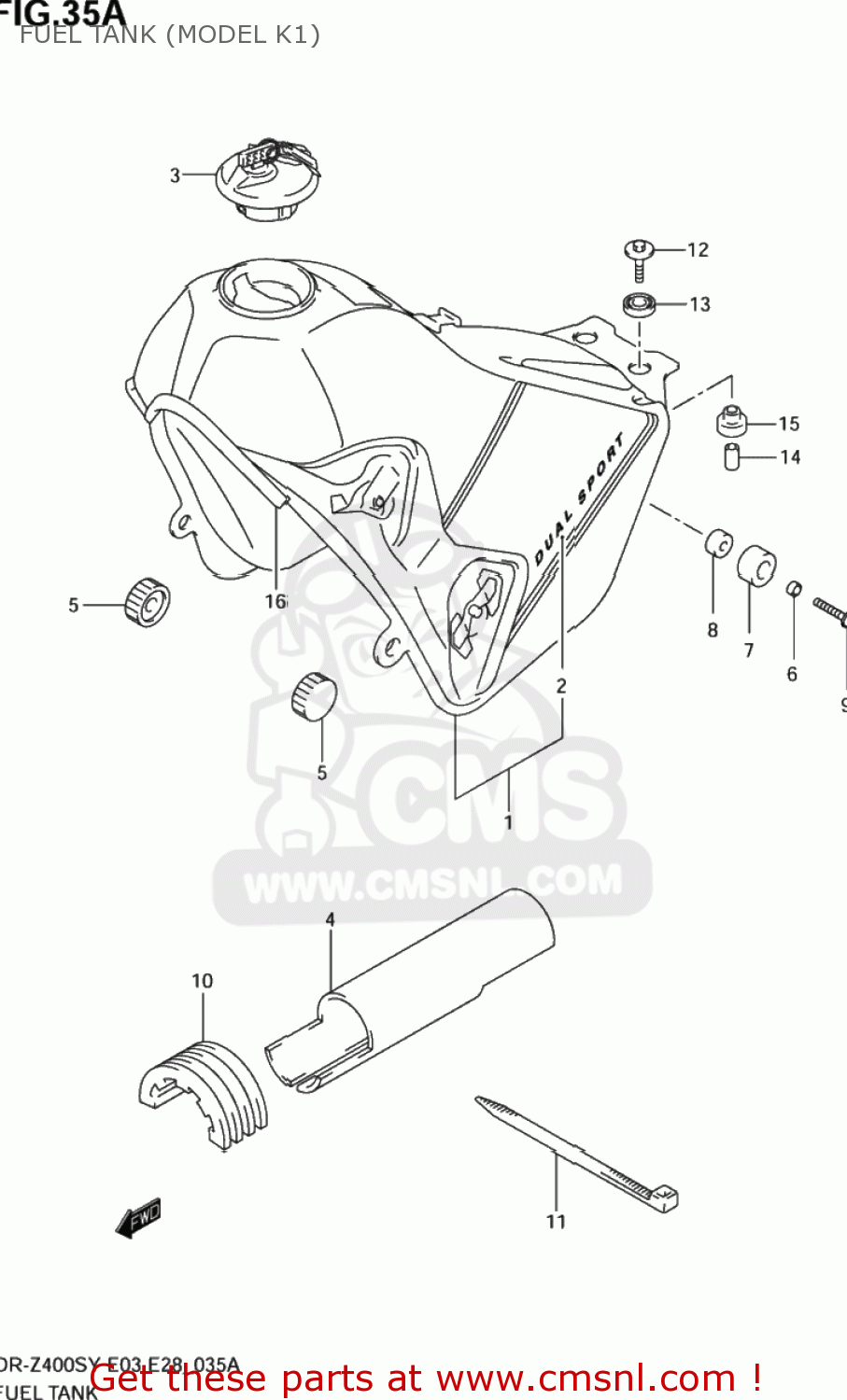

Fuel tank (model k1) diagram DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

FUEL TANK (MODEL K1) DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S
FUEL TANK (MODEL K1) DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S
FUEL TANK (MODEL K1) DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1-1
4410029F10YR1
ref: 1-1
44100-29F10-YU1
TANK ASSY,FUEL
€ 298.50
1-2
4410029F10YC2
ref: 1-2
TANK ASSY,FUEL(BLUE)
€ 0.00
1-3
4410029F40YR1
ref: 1-3
TANK ASSY,FUEL(YELLOW)
€ 0.00
1-4
4410029F40YC2
ref: 1-4
TANK ASSY,FUEL(BLUE)
€ 0.00
2-1
6811029F10ER4
ref: 2-1
TAPE SET,FUEL TANK
6811029F10ER4
€ 46.50
2-2
6811029F10FR1
ref: 2-2
TAPE SET,FUEL TANK
€ 0.00
3-1
4420029820
ref: 3-1
CAP SET,FUEL TANK
€ 112.50
3-2
4420005820
ref: 3-2
CAP SET,FUEL TANK
4420005820
€ 103.50
4
4419429F00
ref: 4
SHIELD,FUEL TANK
4419429F00
€ 38.50
5
0932910016
ref: 5
CUSHION
0932910016
€ 3.00
6
0918006215
ref: 6
SPACER(6.5X20X9)
0918006215
€ 5.00
7
4514914D00
ref: 7
CUSHION
4514914D00
€ 3.00
8
0918006306
ref: 8
SPACER(6.5X9X5)
0918006306
€ 2.00
9
0211216303
ref: 9
02112-1630B
SCREW
0211216303
€ 2.00
10
4454129F00
ref: 10
CUSHION,FUEL TANK
€ 21.50
11
0940730402
ref: 11
CLAMP(L:300)
0940730402
€ 3.50
12
0911606172
ref: 12
BOLT(6X30)
0911606172
€ 2.50
13
0932014022
ref: 13
CUSHION
0932014022
€ 4.00
14
0918006271
ref: 14
SPACER(6.5X9X18)
0918006271
€ 2.00
15
0932010020
ref: 15
CUSHION
0932010020
€ 4.00
16
6824104X5000B
ref: 16
MOLDING
6824104X5000B
€ 23.00
