REAR CUSHION LEVER

DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

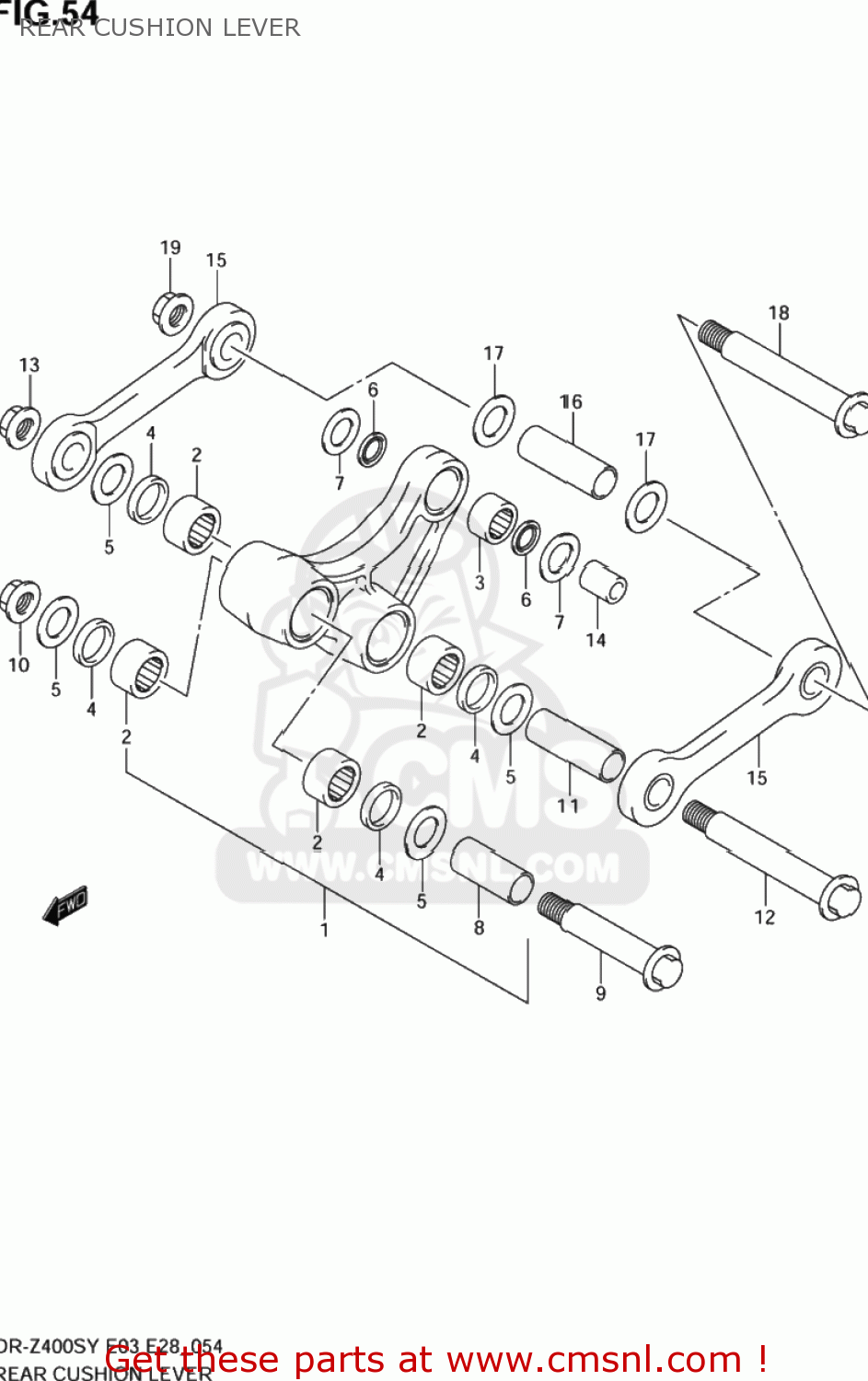

Rear cushion lever diagram DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

REAR CUSHION LEVER DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

REAR CUSHION LEVER DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

6260037830
ref: 1

LEVER SET,RR CUSHION

€ 215.50

2

0926320086
ref: 2

BEARING(20X27X15)

€ 12.50

3

0926316033
ref: 3

BEARING(16X22X12)

€ 19.00

4

6262414500
ref: 4

SEAL,CUSHION LEVER DUST

€ 3.50

5

6264737E00
ref: 5

WASHER,THRUST SWINGARM RR

€ 3.00

6

0928416005
ref: 6

SEAL,OIL(16X22X2.5)

€ 5.50

7

6268537E00
ref: 7

WASHER,THRUST LVR CUSHION RR

€ 3.00

8

6231737E10
ref: 8

SPACER,CUSHION LEVER FR

€ 12.00

9

6265837E01
ref: 9

BOLT,RR CUSHION LEVER FR

€ 10.00

10

0915912056
ref: 10

NUT

€ 7.00

11

6264637E10
ref: 11

SPACER,RR CUSHION

€ 12.50

12

6262137E01
ref: 12

BOLT,RR CUSHION

€ 9.00

13

0915912056
ref: 13

NUT

€ 7.00

14

6268436E10
ref: 14

SPACER,RR CUSHION LEVER RR

€ 7.50

15

6264037E11
ref: 15

ROD SET,RR CUSHION

€ 116.50

16

6264637E10
ref: 16

SPACER,RR CUSHION

€ 12.50

17

6264737E00
ref: 17

WASHER,THRUST SWINGARM RR

€ 3.00

18

6262137E01
ref: 18

BOLT,RR CUSHION

€ 9.00

19

0915912056
ref: 19

NUT

€ 7.00
