CANISTER (E33)

DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

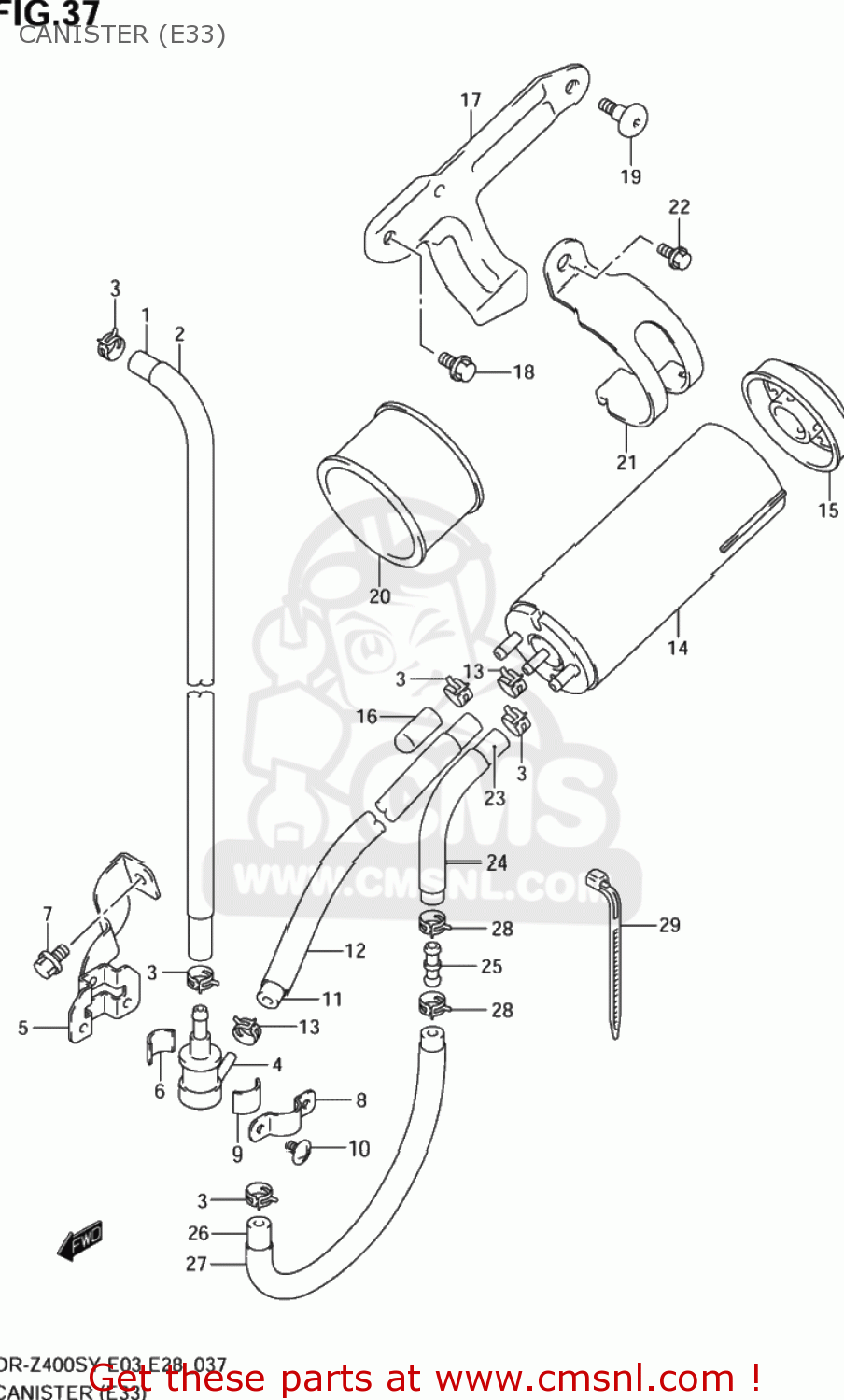

Canister (e33) diagram DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

CANISTER (E33) DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S
CANISTER (E33) DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S
CANISTER (E33) DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1
4443429F00
ref: 1
HOSE,TANK & BREATHER VALVE
€ 0.00
2
0935114152600
ref: 2
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
3
0940111413
ref: 3
CLIP
0940111413
€ 2.50
4
4424017C00
ref: 4
VALVE,FUEL TANK BREATHER
4424017C00
€ 40.00
5
4489029F00
ref: 5
BRACKET,BREATHER VALVE
€ 0.00
6
4489424A00
ref: 6
CUSHION
4489424A00
€ 1.50
7
0155006123
ref: 7
01550-0612A
BOLT
0155006123
€ 2.50
8
4489224A00
ref: 8
PLATE,FUEL TANK BREATHER NO.2
€ 3.00
9
4489424A00
ref: 9
CUSHION
4489424A00
€ 1.50
10
0214204083
ref: 10
02142-0408B
SCREW
0214204083
€ 1.50
11
4443529F00
ref: 11
HOSE,BREATHER VALVE & CANISTER
€ 0.00
12
093511415200B
ref: 12
HOSE
€ 0.00
13
0940112404
ref: 13
CLIP
0940112404
€ 2.50
14
1721026E00
ref: 14
CANISTER ASSY,CHARCOAL
1721026E00
€ 261.50
15
1721148E00
ref: 15
CAP,CANISTER
1721148E00
€ 14.50
16
0925107003
ref: 16
CAP,OD:11.5
0925107003
€ 2.00
17
4488129F00
ref: 17
BRACKET,CANISTER
€ 0.00
18
0155008163
ref: 18
01550-0816A
BOLT
0155008163
€ 3.00
19
0911606165
ref: 19
BOLT(6X16)
0911606165
€ 2.50
20
4488326E00
ref: 20
CUSHION,CANISTER
€ 9.00
21
4488229F00
ref: 21
HOLDER,CANISTER
€ 0.00
22
0155006123
ref: 22
01550-0612A
BOLT
0155006123
€ 2.50
23
4443629F00
ref: 23
HOSE,CSTR & CARB PURGE
€ 0.00
24
0935114152600
ref: 24
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
25
0936406005
ref: 25
UNION
0936406005
€ 4.00
26
4443729F00
ref: 26
HOSE,CANISTER & CARB PURGE NO2
€ 0.00
27
0935114152600
ref: 27
PROTECTOR(14.5X15.5X600)
0935114152600
€ 9.00
28
0940111413
ref: 28
CLIP
0940111413
€ 2.50
29
0940714407
ref: 29
CLAMP(L:145)
0940714407
€ 4.00
