WIRING HARNESS

DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

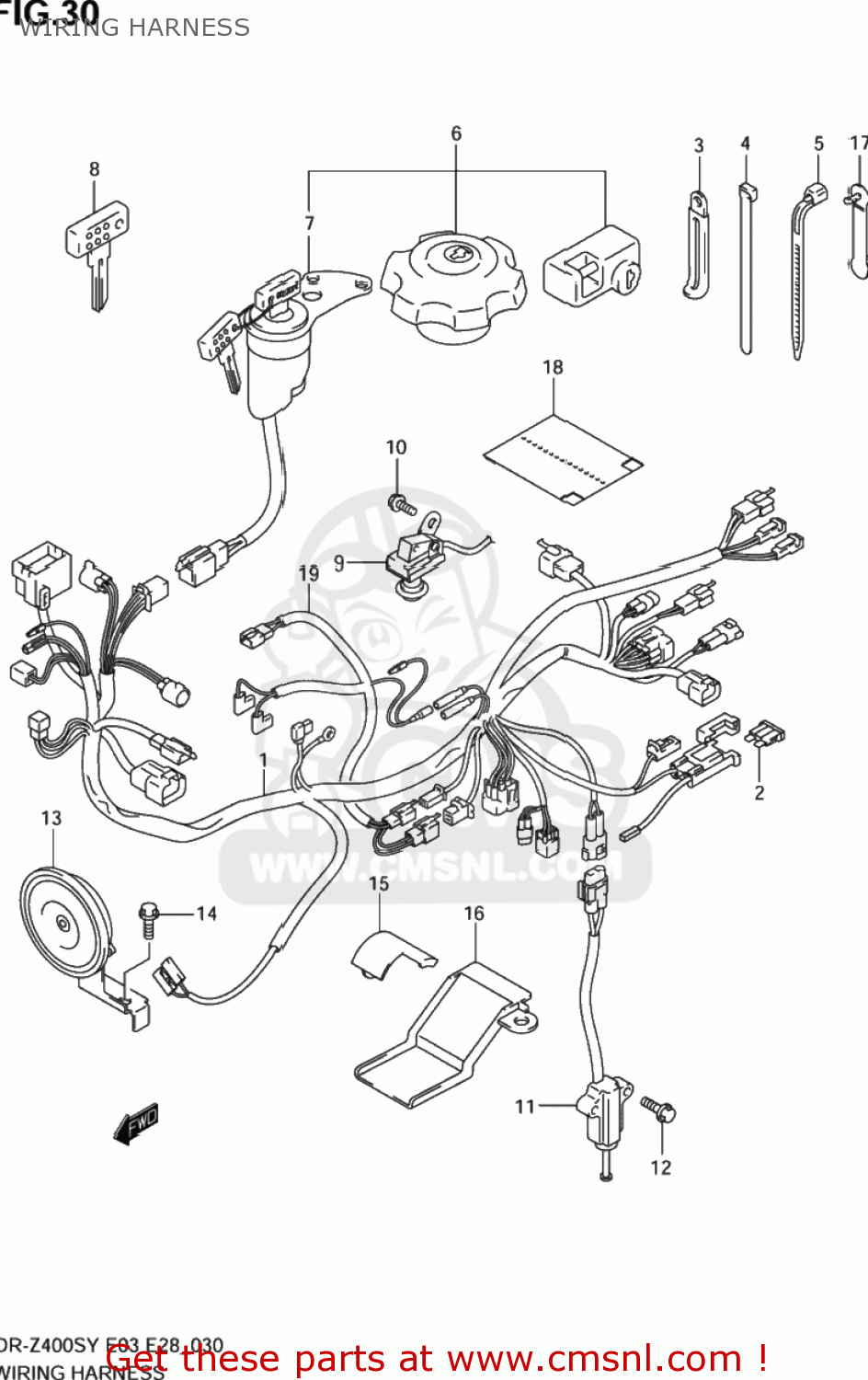

Wiring harness diagram DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

WIRING HARNESS DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S
WIRING HARNESS DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S
WIRING HARNESS DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S
prices are in EUR
ref
part #
description
quantity
1
3661029F30
ref: 1
HARNESS,WIRING
€ 0.00
2
0948120101
ref: 2
FUSE(20A)
0948120101
€ 2.00
3-1
0940406429
ref: 3-1
CLAMP(L:45)
€ 2.50
3-2
0940406432
ref: 3-2
CLAMP(L:65)
0940406432
€ 2.50
4
0940714407
ref: 4
CLAMP(L:145)
0940714407
€ 4.00
5-1
0940714403
ref: 5-1
CLAMP(L:125)
0940714403
€ 2.50
5-2
0940718402
ref: 5-2
CLAMP(L:165)
0940718402
€ 2.50
5-3
0940725401
ref: 5-3
CLAMP(L:235)
0940725401
€ 4.00
6-1
3700029820
ref: 6-1
37000-29821
LOCK SET
€ 194.00
6-2
3700029830
ref: 6-2
37000-29831
LOCK SET
€ 152.50
7
3711029F00
ref: 7
SWITCH ASSY,IGNITION
3711029F00
€ 85.50
8-1
3714601F00
ref: 8-1
KEY,BLANK(TYPE:C)
3714601F00
€ 5.50
8-2
3714601F10
ref: 8-2
KEY,BLANK(TYPE:D)
3714601F10
€ 5.50
8-3
3714601F20
ref: 8-3
KEY,BLANK(TYPE:E)
3714601F20
€ 5.50
8-4
3714601F30
ref: 8-4
KEY,BLANK(TYPE:F)
3714601F30
€ 5.50
9
3774029F00
ref: 9
SWITCH ASSY
3774029F00
€ 92.50
10
0216206083
ref: 10
02162-0608A
SCREW
€ 1.50
11
3784011X50
ref: 11
SWITCH ASSY,SIDE STAND
3784011X50
€ 76.00
12
0155006163
ref: 12
01550-0616A
BOLT
0155006163
€ 2.50
13
3850029F00
ref: 13
38500-29F01
HORN ASSEMBLY
€ 53.00
14
0155006123
ref: 14
01550-0612A
BOLT
0155006123
€ 2.50
15
3661129F10
ref: 15
PROTECTOR,WIRING HARNESS
3661129F10
€ 4.50
16
3661129F00
ref: 16
PROTECTOR,WIRING HARNESS
3661129F00
€ 6.00
17
3665148E00
ref: 17
CLAMP(L:63)
3665148E00
€ 2.50
18
3661815D20
ref: 18
COVER,WIRING HARNESS
3661815D20
€ 12.00
19
3685629F00
ref: 19
WIRE,CARB HEATER
3685629F00
€ 30.50
