HANDLE SWITCH

DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

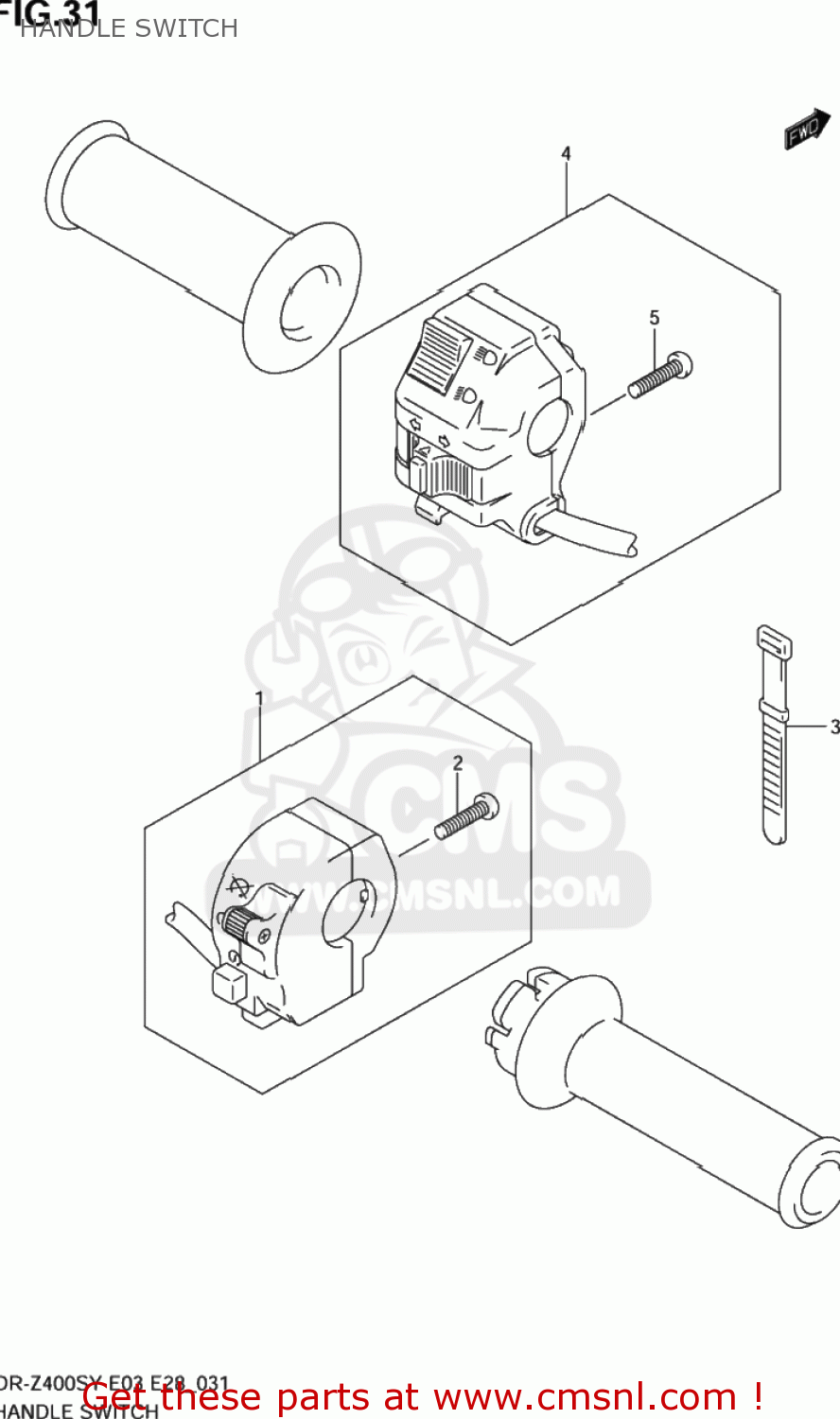

Handle switch diagram DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

HANDLE SWITCH DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

HANDLE SWITCH DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1

3720013E30
ref: 1

SWITCH ASSY,HANDLE,R

€ 83.00

2

0211204203
ref: 2
02112-0420A

SCREW

€ 1.00

3

0940712402
ref: 3

CLAMP(L:120)

€ 3.00

4

3740015D20
ref: 4

SWITCH ASSY,HANDLE,L

€ 109.50

5

0211205303
ref: 5
02112-0530A

SCREW

€ 1.50
