FRONT FENDER (MODEL K2)

DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

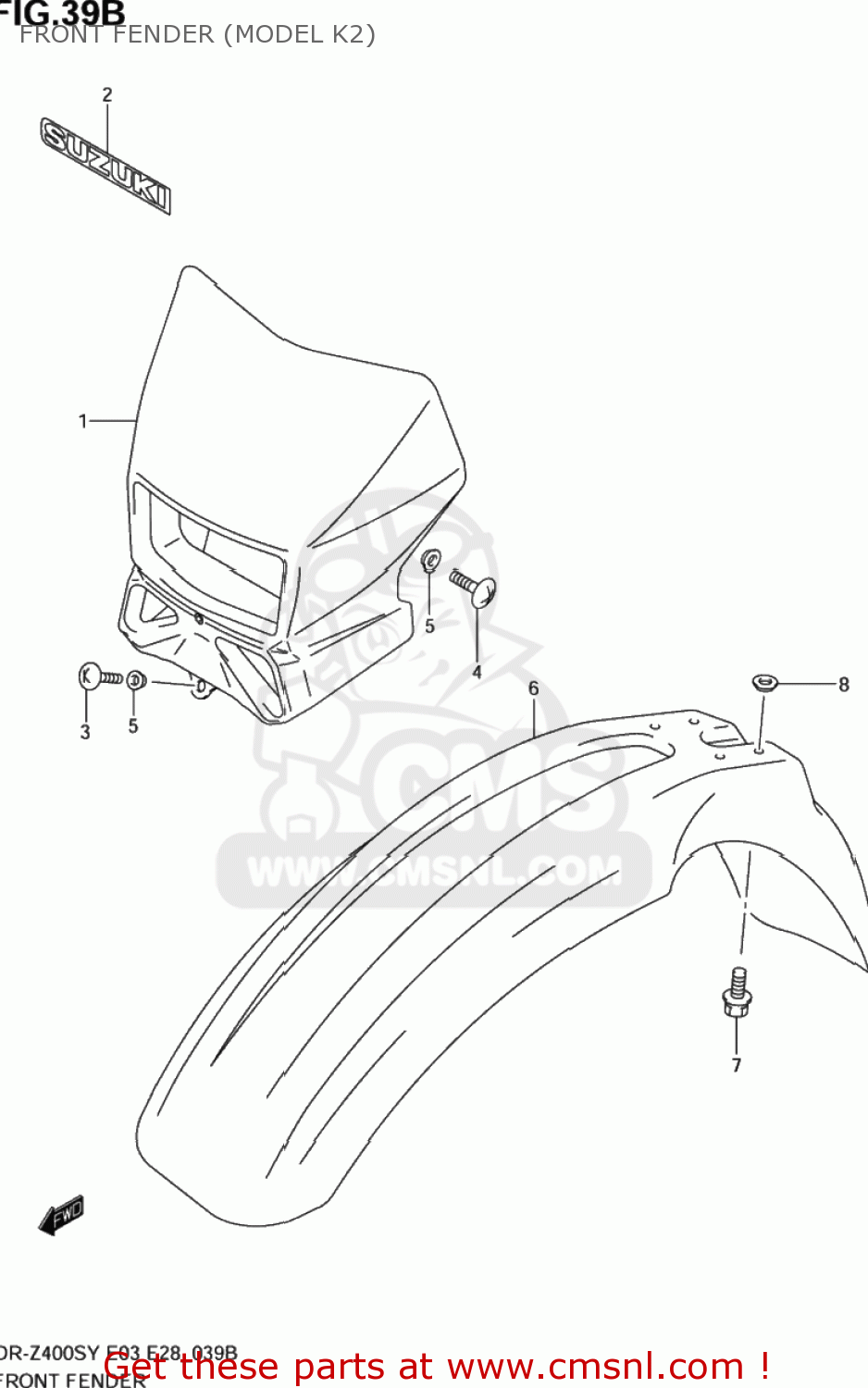

Front fender (model k2) diagram DR-Z400S 2001 (K1) USA (E03) DRZ400S DR Z400S

prices are in EUR

ref

part #

description

quantity

1-1

5181129F10YU1
ref: 1-1
51811-29F50-YU1

COVER,HEADLAMP

€ 54.50

1-2

5181129F1030H
ref: 1-2
51811-29F50-30H

COVER,HEADLAMP

€ 61.50

2-1

6872129F00GY8
ref: 2-1

EMBLEM,SUZUKI

€ 11.00

2-2

6872129F008YM
ref: 2-2

EMBLEM,SUZUKI

€ 11.00

0214205123
ref: 3
02142-0512A

SCREW 5X12

€ 1.50

0214206123
ref: 4
02142-0612A

SCREW 6X12

€ 2.00

0916906033
ref: 5

WASHER

€ 1.50

6-1

5311127C22YU1
ref: 6-1

FENDER,FR

€ 53.00

6-2

5311127C22YJ4
ref: 6-2

FENDER,FR

€ 86.00

0911606170
ref: 7

BOLT(6X16)

€ 3.00

0916906073
ref: 8

WASHER

€ 4.00
