BATTERY

DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

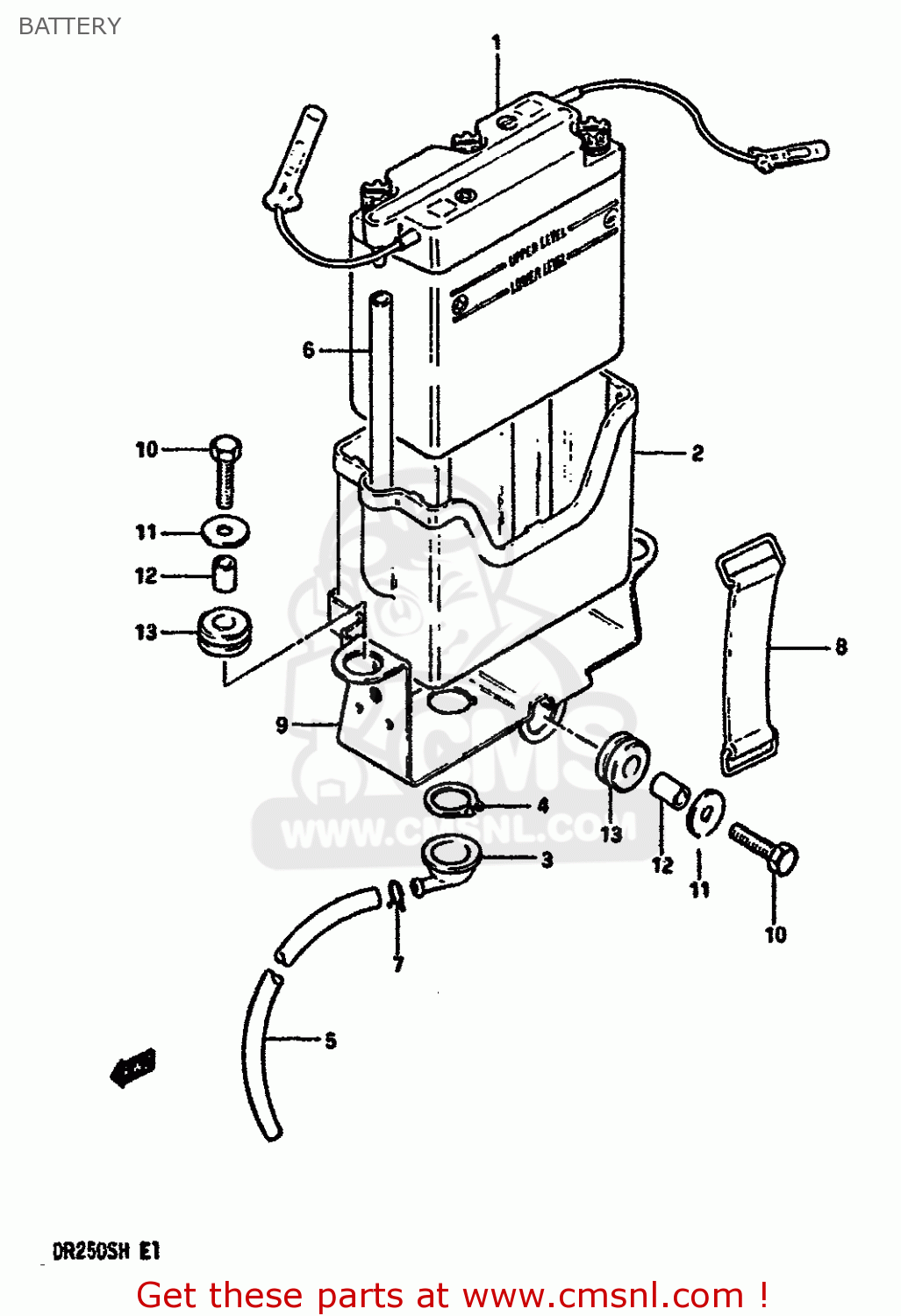

Battery diagram DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

prices are in EUR

ref

part #

description

quantity

1-1

3361003610
ref: 1-1
YUASA

BATTERY(6N4B-2A,6V4.2AH)

€ 49.50

1-2

3361038020
ref: 1-2
FB

BATTERY (6V, 4AH)

€ 49.50

3366132400
ref: 2

CASE,BATTERY

€ 10.50

3366232401
ref: 3

FUNNEL,BATTERY EXHAUST

€ 0.00

0833131178
ref: 4

CIRCLIP

€ 2.00

3368031003
ref: 5
L:600-450

HOSE,BATTERY EXHAUST

€ 4.50

3368031003
ref: 6
L:600-40

HOSE,BATTERY EXHAUST

€ 4.50

0940108301
ref: 7

CLIP

€ 1.50

0946200034
ref: 8

BAND

€ 4.50

4154038201
ref: 9

HOLDER,BATTERY

€ 0.00

0110706166
ref: 10

BOLT

€ 2.00

0916006027
ref: 11

WASHER (6.5X20X1.2)

€ 2.00

0918006038
ref: 12

SPACER(6.1X9X7.5)

€ 2.00

0932008007
ref: 13

CUSHION

€ 4.00
