FOOTREST

DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

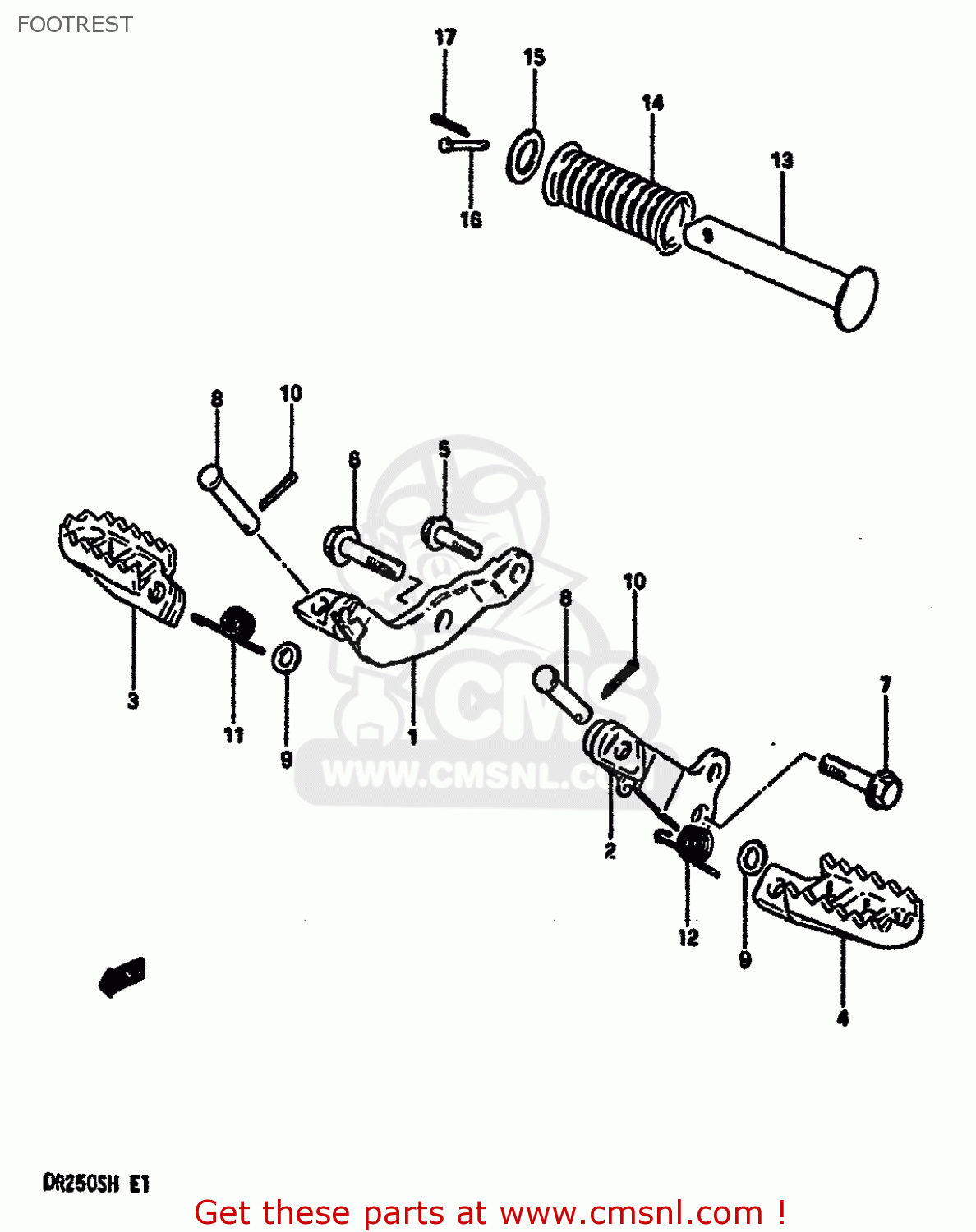

Footrest diagram DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

FOOTREST DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
FOOTREST DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
FOOTREST DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
prices are in EUR
ref
part #
description
quantity
1-1
4351038200
ref: 1-1
MODEL E
BAR,FRONT FOOTREST
€ 25.00
1-2
435103820019F
ref: 1-2
MODEL F/G FOR 163,10
BAR,FRONT FOOTREST
€ 25.00
1-3
4351038200019
ref: 1-3
MODEL F/G FOR 14C,19
BAR,FRONT FOOTREST,RIGHT
4351038200019
€ 25.00
1-4
435103820013L
ref: 1-4
MODEL H
HOLDER,FOOTREST RH (SILVER)
€ 25.00
2-1
4352038200
ref: 2-1
MODEL E
BAR,FRONT FOOTREST,LEFT
4352038200
€ 41.50
2-2
435203820019F
ref: 2-2
MODEL F/G FOR 163,10
BAR,FRONT FOOTREST,LEFT
€ 41.50
2-3
4352038200019
ref: 2-3
MODEL F/G FOR 14C,19
BAR,FRONT FOOTREST,LEFT
€ 41.50
2-4
435203820013L
ref: 2-4
MODEL H
HOLDER,FOOTREST LH (SILVER)
€ 41.50
3-1
4355137202
ref: 3-1
MODEL E
FOOTREST,RIGHT
4355137202
€ 31.00
3-2
435513720219F
ref: 3-2
MODEL F/G FOR 163,10
FOOTREST
435513720219F
€ 31.00
3-3
4355137202019
ref: 3-3
MODEL F/G FOR 14C,19
FOOTREST,FR,R
4355137202019
€ 31.00
3-4
435513720213L
ref: 3-4
MODEL H
FOOTREST
€ 31.00
4-1
4356140401
ref: 4-1
MODEL E
FOOTREST
4356140401
€ 24.50
4-2
435614040119F
ref: 4-2
MODEL F/G FOR 163,10
FOOTREST
€ 24.50
4-3
4356140401019
ref: 4-3
MODEL F/G FOR 14C,19
FOOTREST,FR,L
4356140401019
€ 24.50
4-4
435614040113L
ref: 4-4
MODEL H
FOOTREST
€ 24.50
5
0151710205
ref: 5
BOLT,LOWER
€ 3.00
6
0152712305
ref: 6
BOLT, RH
€ 3.50
7
0151712255
ref: 7
BOLT
€ 3.00
8
0920008035
ref: 8
PIN
0920008035
€ 6.50
9
0832221088
ref: 9
WASHER
0832221088
€ 2.00
10
0411120208
ref: 10
PIN 20X20
0411120208
€ 1.50
11
0944814022
ref: 11
SPRING
€ 2.00
12
0944814018
ref: 12
SPRING
0944814018
€ 4.00
13
4361003001
ref: 13
BAR,FOOTREST RUBBER
4361003001
€ 5.50
14
4361203001
ref: 14
RUBBER,PILLION FOOTREST
4361203001
€ 3.50
15
0916019006
ref: 15
WASHER (19.5X32X2)
0916019006
€ 2.00
16
0920006010
ref: 16
PIN
0920006010
€ 2.50
17
0411120208
ref: 17
PIN 20X20
0411120208
€ 1.50
