SHOCK ABSORBER

DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

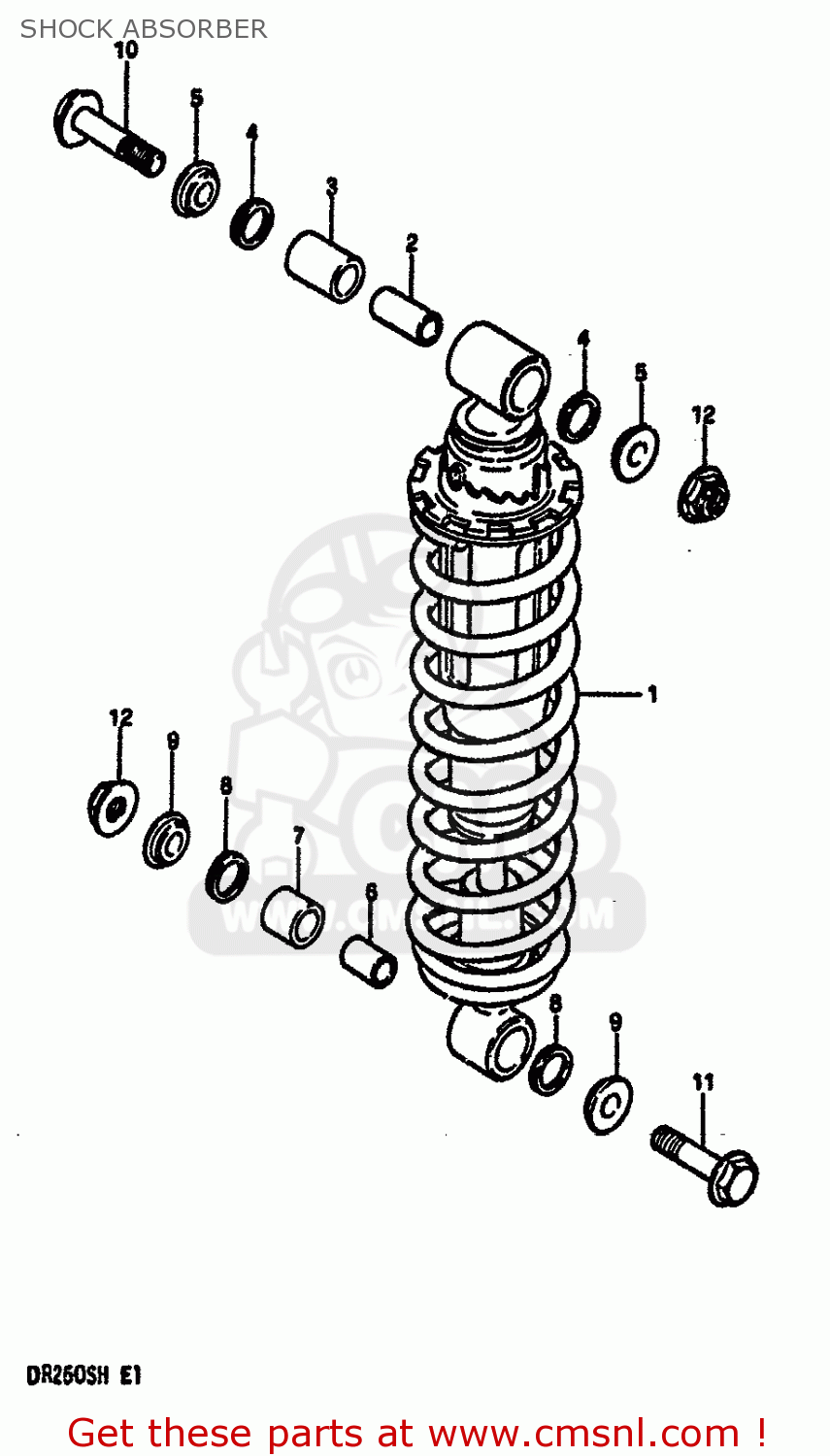

Shock absorber diagram DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

SHOCK ABSORBER DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

SHOCK ABSORBER DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

prices are in EUR

ref

part #

description

quantity

1-1

6210038211019
ref: 1-1
MODEL E

ABSORBER ASSEMBLY,REAR SHOCK

€ 694.50

1-2

6210038221019
ref: 1-2
MODEL E E4,E15,E18,E

SHOCK ABSORBER, REAR

€ 694.50

1-3

6210038260019
ref: 1-3
MODEL F/G

ABSORBER ASSEMBLY,REAR SHOCK

€ 694.50

1-4

621003826019F
ref: 1-4
MODEL F/G/H

SHOCK ABSORBER,REAR (BLUE)

€ 694.50

1-5

6210038270019
ref: 1-5
MODEL F/G E4,E15,E18

SHOCK ABSORBER,REAR (BLACK)

€ 0.00

1-6

621003827019F
ref: 1-6
MODEL F/G/H E4,E15,E

SHOCK ABSORBER,REAR (BLUE)

€ 0.00

2

6217638211
ref: 2

BUSH

€ 0.00

3

6217838210
ref: 3
MODEL E

BUSHING,REAR SHOCK,UPPER

€ 0.00

4

5118143010
ref: 4

O-RING,FORK INNER TUBE

€ 5.50

5

6217738200
ref: 5

COLLAR

€ 12.50

6

6217638201
ref: 6

BUSHING,REAR SHOCK ABSORBER

€ 19.00

7

6217838200
ref: 7
MODEL E

BUSHING,REAR SHOCK,LOWER

€ 0.00

8

5118143010
ref: 8

O-RING,FORK INNER TUBE

€ 5.50

9

6217738200
ref: 9

COLLAR

€ 12.50

10

0910310050
ref: 10

BOLT(10X60)

€ 5.50

11

0910310045
ref: 11

BOLT(10X50)

€ 3.50

12

0831931107
ref: 12

NUT

€ 3.00
