MAGNETO (E2,E4,E15,E18,E21,E22,E25,E39)

DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

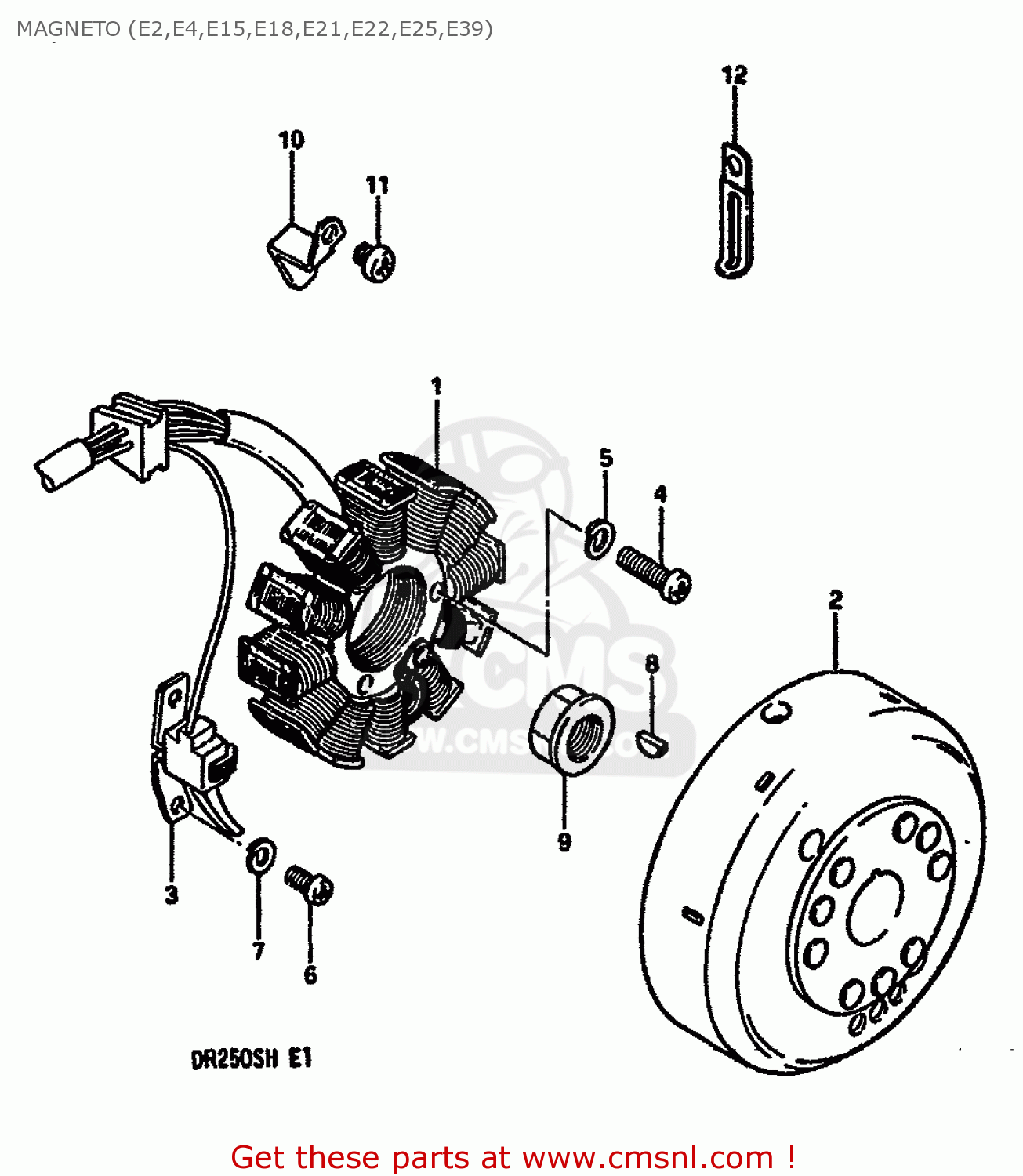

Magneto (e2,e4,e15,e18,e21,e22,e25,e39) diagram DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

prices are in EUR

ref

part #

description

quantity

3210138220
ref: 1

STATOR ASSY

€ 671.00

3215038210
ref: 2

COIL,PICK UP

€ 62.50

3210238220
ref: 3

ROTOR, FLYWHEEL

€ 237.50

0211206258
ref: 4

SCREW

€ 2.00

0832121067
ref: 5

WASHER,LOCK

€ 2.50

0211205107
ref: 6

SCREW

€ 2.00

0832121057
ref: 7

LOCK WASHER

€ 2.00

0834131049
ref: 8

KEY 4MM

€ 3.50

3179249200
ref: 9

NUT,GENERATOR ROTOR

€ 10.00

3237138200
ref: 10

CLAMP,MAGNETO LEAD WIRE

€ 0.00

0211206088
ref: 11

SCREW

€ 2.00

0940406401
ref: 12

CLAMP L:35

€ 2.50
