FUEL TANK (MODEL E)

DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

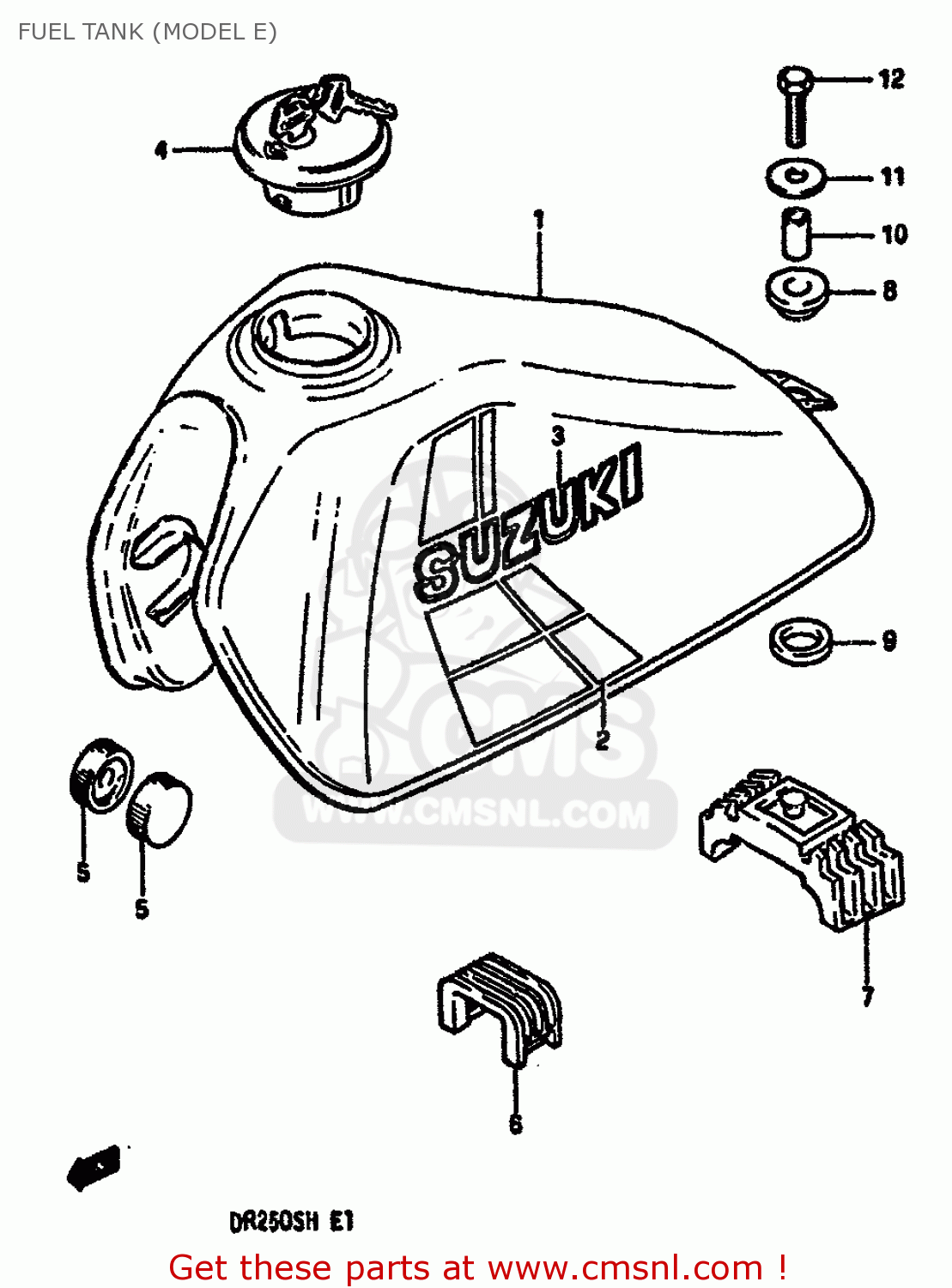

Fuel tank (model e) diagram DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

FUEL TANK (MODEL E) DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
FUEL TANK (MODEL E) DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
FUEL TANK (MODEL E) DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
prices are in EUR
ref
part #
description
quantity
1-1
4410038280019
ref: 1-1
TANK ASSY,FUEL (BLACK)
€ 250.50
1-2
441003828014C
ref: 1-2
TANK ASSY,FUEL (RED)
€ 250.50
1-3
441003828005K
ref: 1-3
TANK ASSY,FUEL (BLUE)
€ 250.50
1-4
4410038280163
ref: 1-4
TANK ASSY,FUEL (YELLOW)
€ 250.50
1-5
441003828010V
ref: 1-5
TANK ASSY,FUEL (WHITE)
€ 250.50
2-1
681103825088W
ref: 2-1
FOR 019
TAPE SET,FUEL TANK
€ 0.00
2-2
68110382507AR
ref: 2-2
FOR 14C
TAPE SET,FUEL TANK
€ 0.00
2-3
68110382507AU
ref: 2-3
FOR 05K
TAPE SET,FUEL TANK
€ 18.00
2-4
681103825067H
ref: 2-4
FOR 163,10V
TAPE SET,FUEL TANK
€ 19.00
3-1
6811129310064
ref: 3-1
FOR 019,14C,05K
EMBLEM,FUEL TANK(WHITE)
6811129310064
€ 14.00
3-2
6811129310019
ref: 3-2
FOR 163,10V
EMBLEM
€ 16.50
4
4420030516KEY
ref: 4
CAP SET,FUEL TANK
4420030516KEY
€ 112.00
5
0932910016
ref: 5
CUSHION
0932910016
€ 3.00
6
4454138200
ref: 6
CUSHION,TANK UPR FR
4454138200
€ 6.00
7
4454238200
ref: 7
CUSHION,FUEL TANK,REAR
€ 11.50
8
0932012010
ref: 8
CUSHION
0932012010
€ 3.00
9
0932012023
ref: 9
CUSHION
0932012023
€ 2.50
10
0918008067
ref: 10
SPACER(8.5X12X19)
0918008067
€ 2.50
11
0916008002
ref: 11
WASHER (8.5X29X1.6)
0916008002
€ 2.00
12
0110708307
ref: 12
BOLT
€ 2.50
