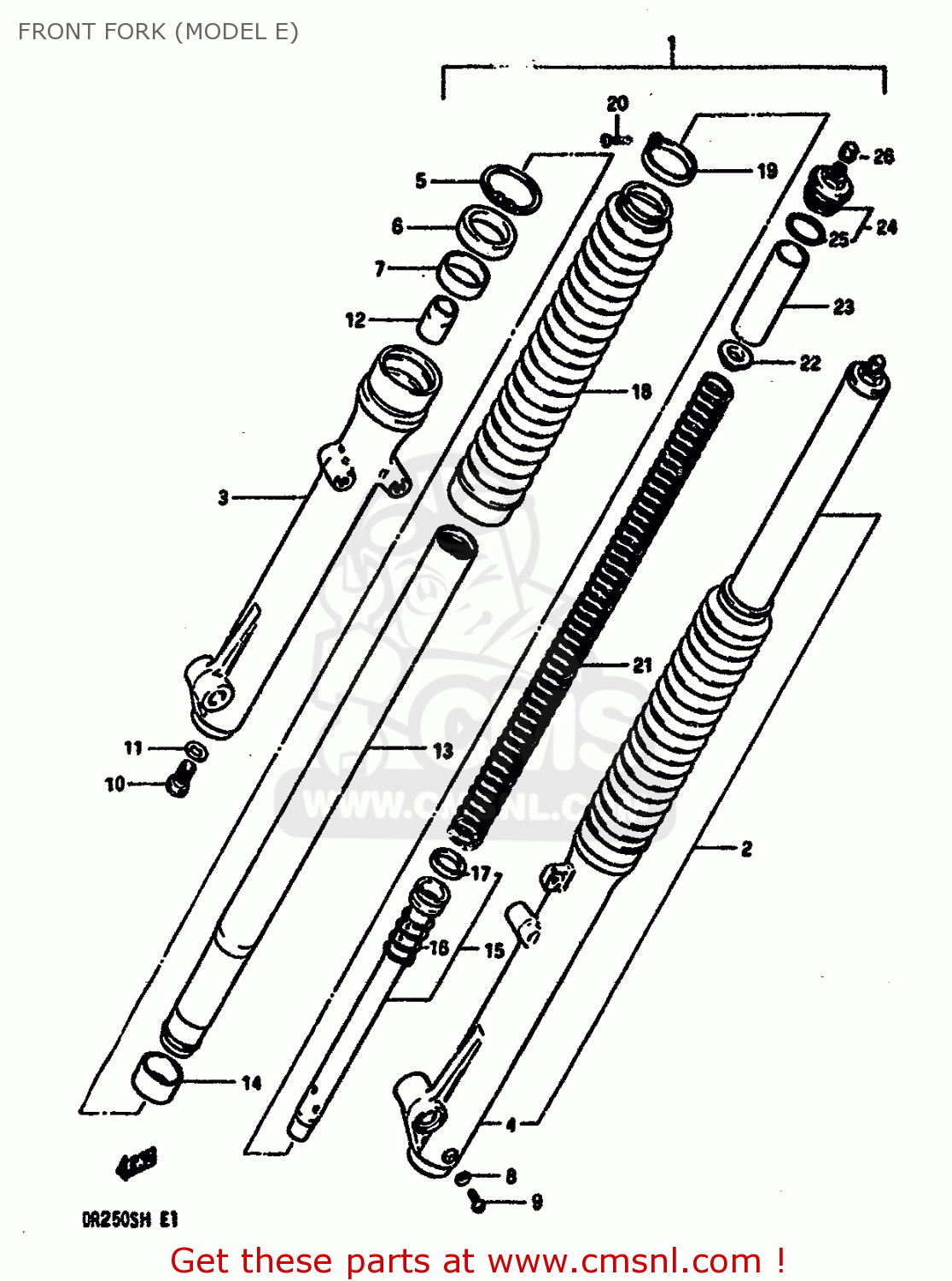

FRONT FORK (MODEL E)

ref

part #

description

quantity

1-1

5110338215019
ref: 1-1

DAMPER ASSY,RH (BLACK)

€ 4.50

1-2

511033821519F
ref: 1-2

DAMPER ASSY,RH (BLUE)

€ 4.50

2-1

5110438215019
ref: 2-1

DAMPER ASSY,LH (BLACK)

€ 0.00

2-2

511043821519F
ref: 2-2

DAMPER ASSY,LH (BLUE)

€ 0.00

3

5113038210
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 166.00

4

5114038210
ref: 4

TUBE,FORK,LEFT,OUTER

€ 166.00

5

5115630400
ref: 5

5115630400

6

5115334010
ref: 6

SEAL,OIL

€ 15.00

7

5116738210
ref: 7

SLIDE METAL

€ 7.50

8

5118303010
ref: 8

GASKET,DRAIN,PLUG (NAS)

€ 3.00

9

0211204087
ref: 9

SCREW

€ 1.50

10

5114716510
ref: 10

BOLT,FORK CYLINDER(10X25)

€ 3.50

11

5114841310
ref: 11

GASKET (NAS)

€ 2.50

12

5119541210
ref: 12

PIECE,OIL LOCK

€ 12.00

13

5111038215
ref: 13

INNER TUBE

€ 155.50

14

5112138210
ref: 14

PISTON

€ 13.50

15

5114630400
ref: 15

CYLINDER,FRONT FORK

€ 0.00

16

5117737446
ref: 16

SPRING

€ 6.50

17

5119637446
ref: 17

RING,FRONT FORK PISTON

€ 0.00

18-1

5157138215019
ref: 18-1

BOOT (BLACK)

€ 45.00

18-2

515713821519F
ref: 18-2

BOOT (BLUE)

€ 45.00

19

5157541410
ref: 19

BAND,BOOT

€ 8.00

20

0211204168
ref: 20

SCREW

€ 1.00

21

5117138210
ref: 21

SPRING

€ 30.50

22

5117238010
ref: 22

GUIDE,FRONT FORK SPRING C

€ 9.50

23

5117638215
ref: 23

COLLAR,SPRING

€ 0.00

24

5135138265
ref: 24

CAP,FR FORK INNER TUBE

€ 0.00

25

5111716310
ref: 25

O RING

€ 4.50

26

5129420408
ref: 26

CAP

€ 0.00

all assemblies
