CAM SHAFT-VALVE

DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

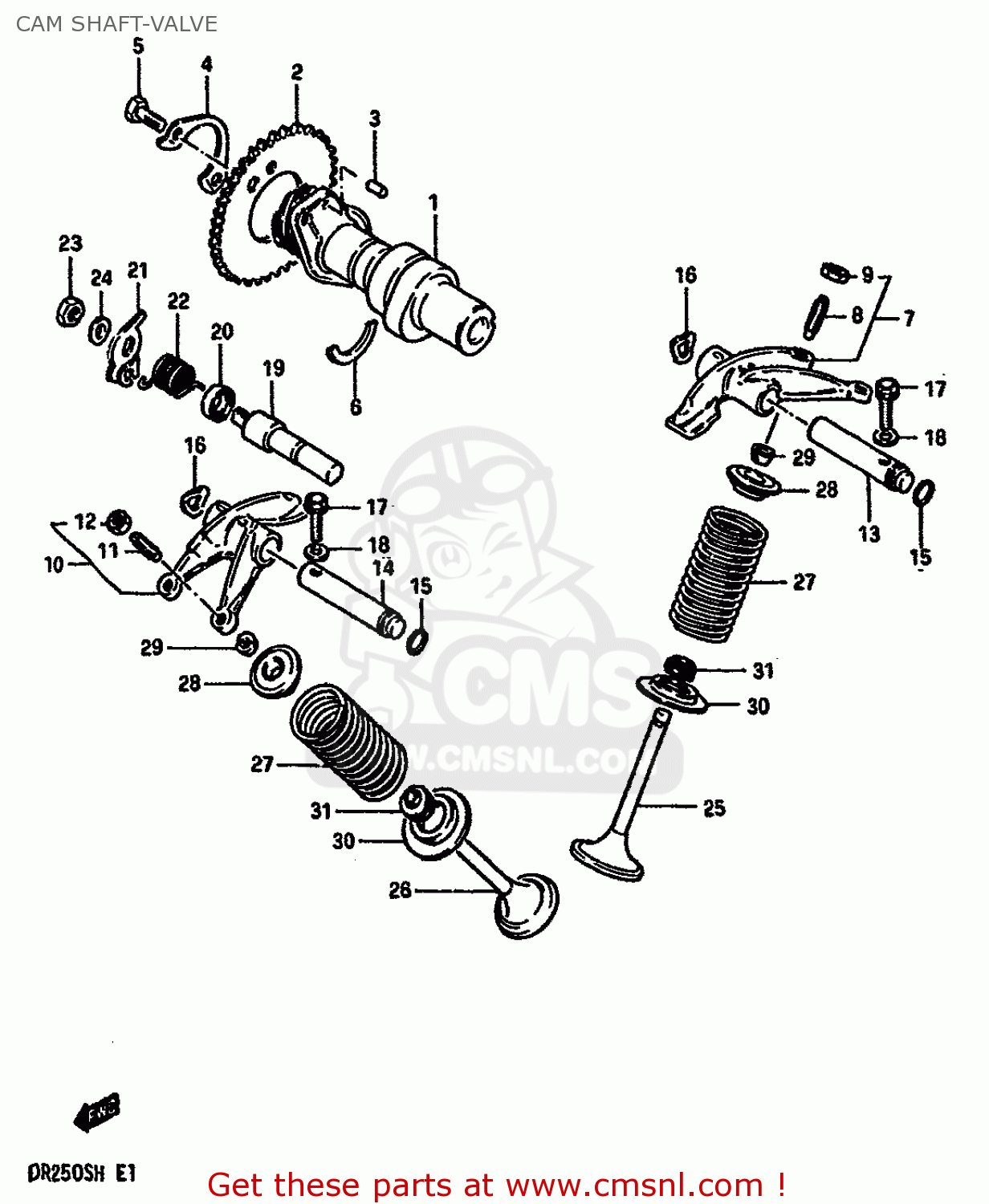

Cam shaft-valve diagram DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

CAM SHAFT-VALVE DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
CAM SHAFT-VALVE DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
CAM SHAFT-VALVE DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
prices are in EUR
ref
part #
description
quantity
1
1271138211
ref: 1
CAMSHAFT
€ 440.50
2
1274137400
ref: 2
SPROCKET,CAMSHAFT(NT:42)
1274137400
€ 34.50
3
0422105109
ref: 3
PIN
0422105109
€ 1.50
4
1274744000
ref: 4
WASHER,CAM CHAIN SPROCKET
1274744000
€ 2.00
5
0911106027
ref: 5
BOLT(6X12.5)
0911106027
€ 1.50
6
0939025003
ref: 6
C RING
0939025003
€ 2.50
7
1284038201
ref: 7
ARM,VALVE ROCKER INTAKE
1284038201
€ 117.00
8
1284249210
ref: 8
SCREW,TAPPET ADJUSTING
1284249210
€ 5.50
9
1284304A00
ref: 9
NUT,ADJUSTING
1284304A00
€ 3.00
10
1285038201
ref: 10
ARM,VALVE ROCKER EXHAUST
1285038201
€ 117.00
11
1284249210
ref: 11
SCREW,TAPPET ADJUSTING
1284249210
€ 5.50
12
1284304A00
ref: 12
NUT,ADJUSTING
1284304A00
€ 3.00
13
1286138200
ref: 13
L:91.5
SHAFT,VLV ROCKER ARM IN(L:91.5
1286138200
€ 26.50
14
1287138200
ref: 14
L:76
SHAFT,VLV ROCKER ARM EXH(L:76)
1287138200
€ 26.50
15
0928009005
ref: 15
O RING(D:1.9,ID:8.6)
0928009005
€ 4.00
16
0916412018
ref: 16
WASHER
0916412018
€ 1.50
17
0151706305
ref: 17
BOLT 6X30
€ 2.50
18
0916806023
ref: 18
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
19
1294137103
ref: 19
SHAFT,DECOMP LH
1294137103
€ 63.00
20
0928410008
ref: 20
OIL SEAL
0928410008
€ 6.50
21
1294237101
ref: 21
LEVER,DECOMP SHAFT
1294237101
€ 4.50
22
0944817014
ref: 22
SPRING
0944817014
€ 21.50
23
0831022085
ref: 23
NUT 8MM
0831022085
€ 2.00
24
0832211084
ref: 24
WASHER
0832211084
€ 1.50
25
1291138200
ref: 25
VALVE,INTAKE
1291138200
€ 81.00
26
1291238200
ref: 26
VALVE,EXHAUST
1291238200
€ 85.50
27
1292138211
ref: 27
SPRING,VALVE
1292138211
€ 9.00
28
1293149200
ref: 28
RETAINER,VALVE SPRING
1293149200
€ 5.50
29
1293249200
ref: 29
COTTER VALVE
1293249200
€ 2.50
30
1293338200
ref: 30
SEAT,VALVE SPRING
1293338200
€ 5.50
31
0928905003
ref: 31
OIL SEAL
0928905003
€ 6.50
