CRANK BALANCER

DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

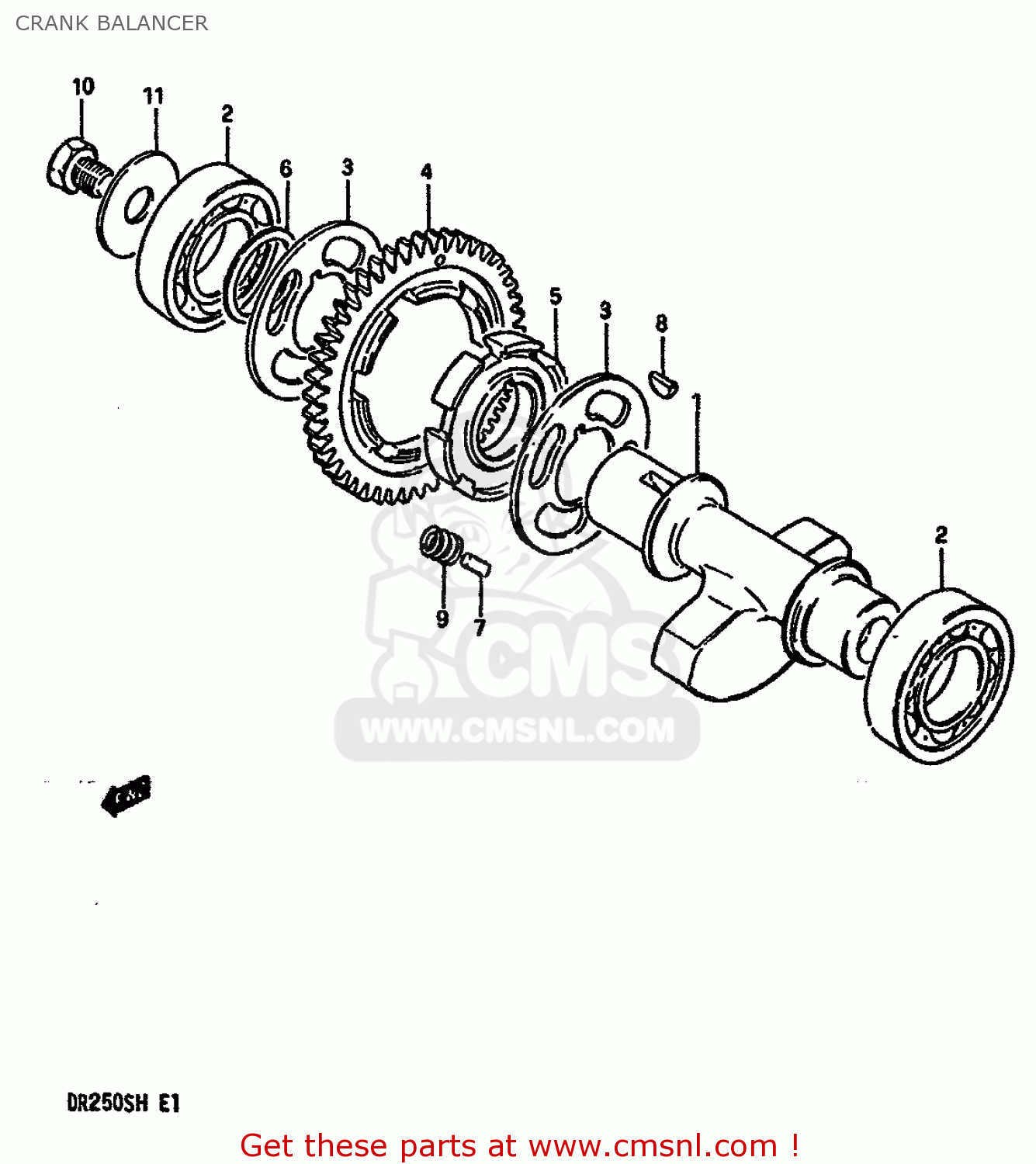

Crank balancer diagram DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

prices are in EUR

ref

part #

description

quantity

1265138201
ref: 1

BALANCER,CRANKSHAFT

€ 101.50

0926225047
ref: 2

BEARING

€ 29.00

1266338200
ref: 3

WASHER

€ 6.00

1266638200
ref: 4

GEAR,CRANK BAL DRIVEN(NT:46)

€ 128.00

1266938200
ref: 5

RACE,CRK BAL DRIVEN GR INNER

€ 37.00

0822125365
ref: 6

SHIM

€ 4.50

0920204013
ref: 7

PIN

€ 3.00

0834131049
ref: 8

KEY 4MM

€ 3.50

0944009015
ref: 9

SPRING

€ 25.50

0110712168
ref: 10

BOLT ,12X16

€ 3.50

0916012034
ref: 11

WASHER

€ 5.50
