STAND-REAR BRAKE

DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

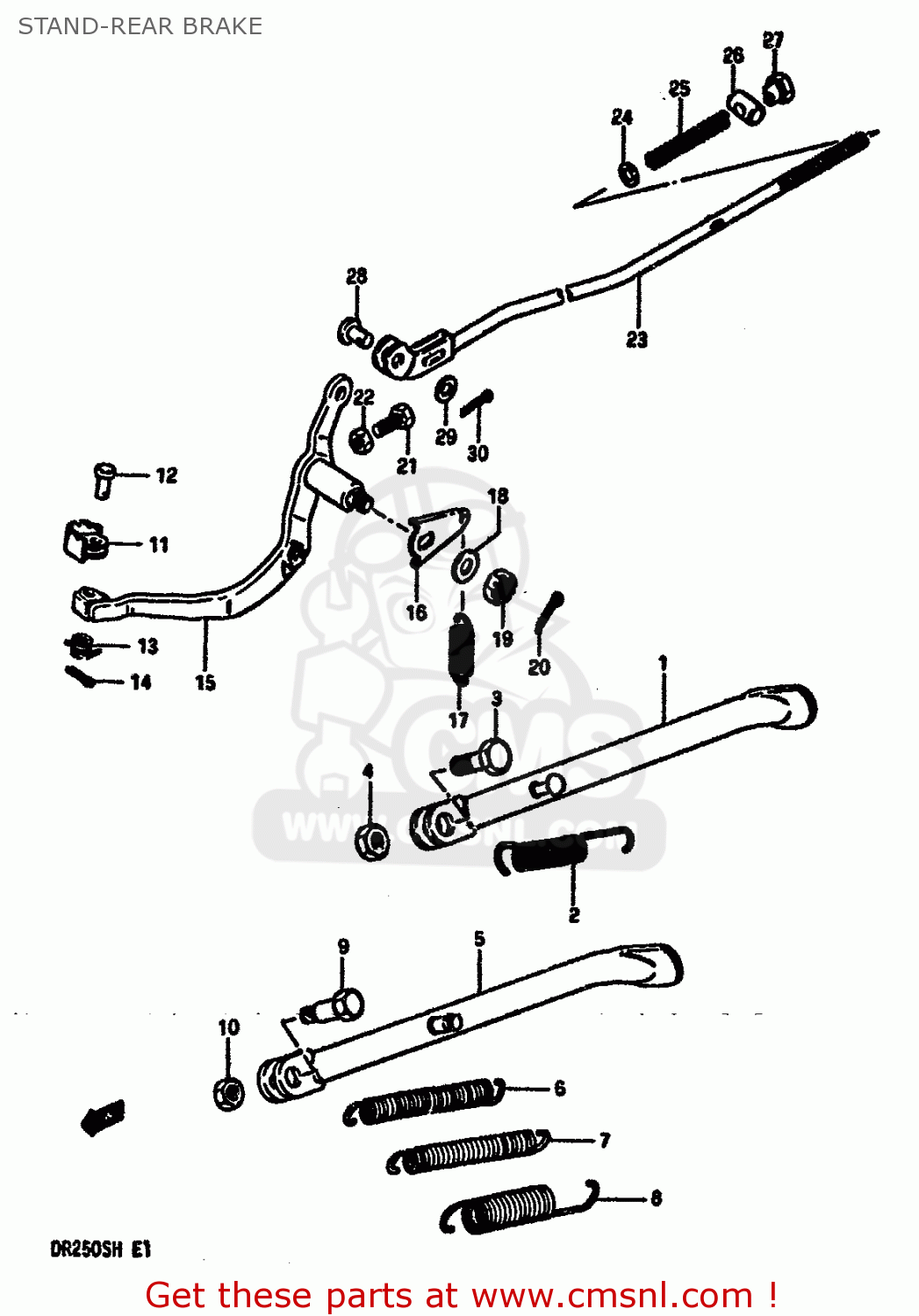

Stand-rear brake diagram DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)

STAND-REAR BRAKE DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
STAND-REAR BRAKE DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
STAND-REAR BRAKE DR250S 1985 (F) (E01 E04 E15 E18 E21 E22 E24 E25 E39 E41)
prices are in EUR
ref
part #
description
quantity
1-1
423103820019F
ref: 1-1
MODEL E/F/G FOR 019,
STAND,PROP (BLUE)
€ 26.50
1-2
4231038240019
ref: 1-2
MODEL E/F/G FOR 14C,
STAND,SIDE
€ 26.50
1-3
423103820013L
ref: 1-3
MODEL H
STAND,PROP (SILVER)
€ 26.50
2
0944317007
ref: 2
SPRING
0944317007
€ 4.50
3
0910010067
ref: 3
BOLT(10X30)
0910010067
€ 3.50
4
0831022107
ref: 4
NUT
0831022107
€ 2.50
5-1
423103821019F
ref: 5-1
MODEL E/F/G E15,E18,
STAND,PROP (BLUE)
€ 19.00
5-2
4231038210019
ref: 5-2
MODEL E/F/G E15,E18,
STAND,PROP (BLACK)
€ 19.00
5-3
423103821013L
ref: 5-3
MODEL H E15,E22,E39
STAND,PROP (SILVER)
€ 19.00
6
0944315007
ref: 6
E15,E18,E39
SPRING
€ 6.00
7
0944314014
ref: 7
E22
SPRING
0944314014
€ 5.50
8
0944322001
ref: 8
E22
SPRING, OUTER
0944322001
€ 4.50
9
0911110019
ref: 9
E15,E18,E22,E39
BOLT L:30
0911110019
€ 4.50
10
0831022107
ref: 10
E15,E18,E22,E39
NUT
0831022107
€ 2.50
11
4311014130
ref: 11
PEDAL,BRAKE
4311014130
€ 6.00
12
0920006038
ref: 12
PIN
0920006038
€ 2.00
13
0944411004
ref: 13
SPRING
0944411004
€ 3.00
14
0411120158
ref: 14
PIN
0411120158
€ 1.50
15
4312038210
ref: 15
ARM,BRAKE PEDAL ROD
€ 40.50
16
4312838200
ref: 16
ARM,BRAKE RETURN SPRING
4312838200
€ 3.50
17
0944314020
ref: 17
SPRING
€ 3.00
18
0821108202
ref: 18
WASHER
0821108202
€ 1.50
19
0831441088
ref: 19
NUT 8MM
0831441088
€ 2.50
20
0411120208
ref: 20
PIN 20X20
0411120208
€ 1.50
21
0910006009
ref: 21
BOLT(6X23)
0910006009
€ 1.50
22
0831811068
ref: 22
NUT
€ 1.50
23-1
4330038200
ref: 23-1
ROD ASSEMBLY,REAR BRAKE
€ 113.50
23-2
4330038230
ref: 23-2
E2,E4,E6,E15,E18,E21
ROD ASSY REAR BRAKE
€ 9.50
23-3
4330038210
ref: 23-3
E22
ROD ASSY REAR BRAKE
€ 0.00
24
0832221067
ref: 24
WASHER
0832221067
€ 2.00
25
0944009004
ref: 25
SPRING
0944009004
€ 2.00
26
0920911002
ref: 26
PIN(11X18)
0920911002
€ 2.00
27
0915006009
ref: 27
NUT (6MM)
0915006009
€ 3.50
28
0920006039
ref: 28
PIN
0920006039
€ 2.50
29
0832221067
ref: 29
WASHER
0832221067
€ 2.00
30
0411120208
ref: 30
PIN 20X20
0411120208
€ 1.50
