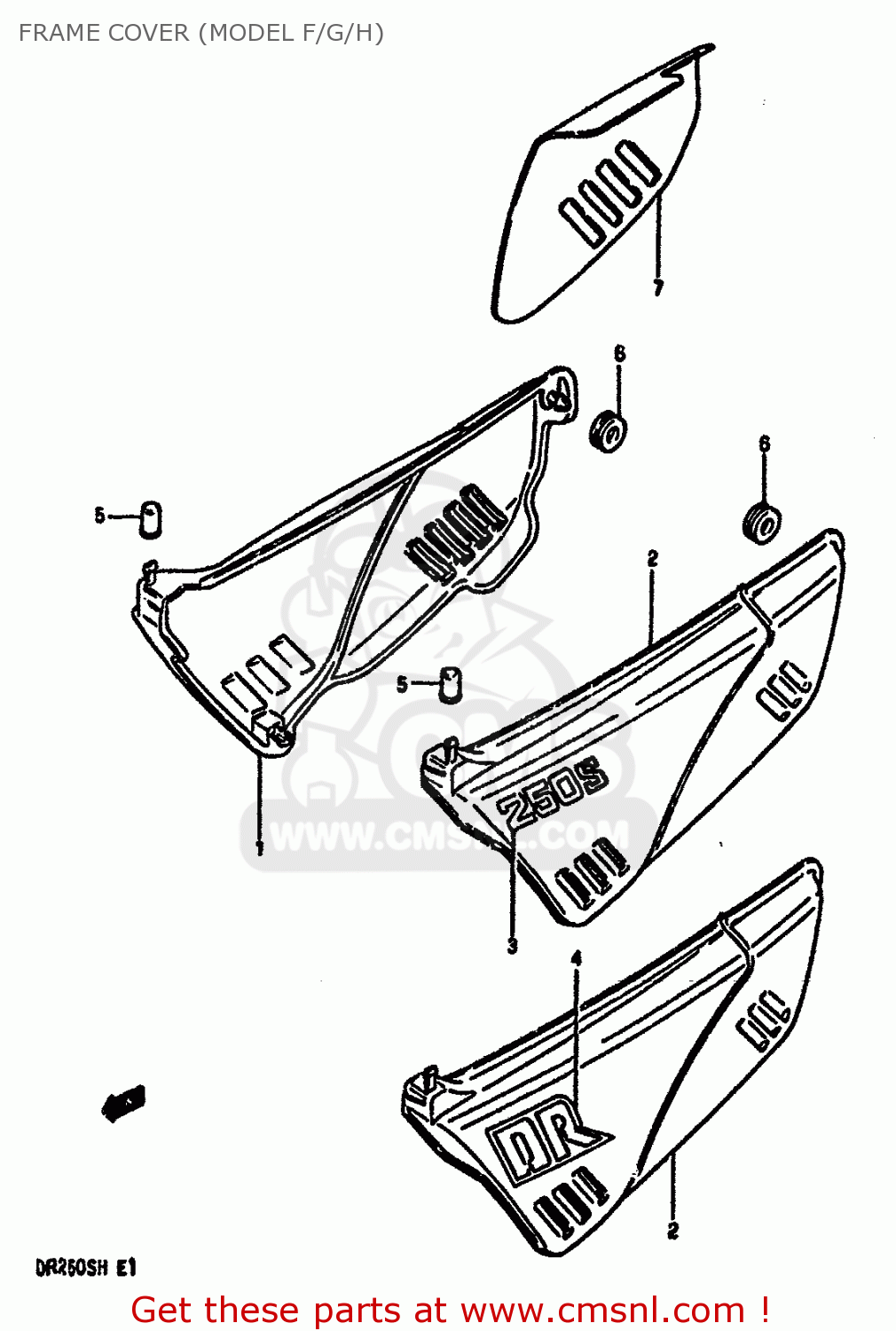

FRAME COVER (MODEL F/G/H)

ref

part #

description

quantity

1-1

471113821221C
ref: 1-1

COVER,FRAME RH (BLACK)

€ 67.00

1-2

471113821214C
ref: 1-2
MODEL F/G

COVER,FRAME RH (RED)

€ 67.00

1-3

471113821214L
ref: 1-3
MODEL H

COVER,FRAME RH (WHITE)

€ 67.00

1-4

471113821219F
ref: 1-4
MODEL F/G

COVER,FRAME RH (BLUE)

€ 67.00

1-5

4711138212163
ref: 1-5
MODEL F/G

COVER,FRAME RH

€ 67.00

1-6

471113821210V
ref: 1-6
MODEL F/G

COVER,FRAME RH (WHITE)

€ 67.00

1-7

471113821234G
ref: 1-7
MODEL H

COVER,FRAME RH (BLUE)

€ 0.00

2-1

472113823121C
ref: 2-1

COVER,FRAME LH (BLACK)

€ 53.50

2-2

472113822121C
ref: 2-2
E4,E15,E18,E21,E22,E

COVER,FRAME LH (BLACK)

€ 57.50

2-3

472113823114C
ref: 2-3
MODEL F/G

COVER,FRAME LH (RED)

€ 53.50

2-4

472113823114L
ref: 2-4
MODEL H

COVER,FRAME LH (WHITE)

€ 53.50

2-5

472113822114C
ref: 2-5
MODEL F/G E4,E15,E18

COVER,FRAME LH (RED

€ 57.50

2-6

472113822114L
ref: 2-6
MODEL H E4,E15,E21,E

COVER,FRAME LH (WHITE)

€ 57.50

2-7

472113823119F
ref: 2-7
MODEL F/G

COVER,FRAME LH (BLUE)

€ 53.50

2-8

472113822119F
ref: 2-8
MODEL F/G E4,E15,E18

COVER,FRAME LH (BLUE)

€ 57.50

2-9

4721138231163
ref: 2-9
MODEL F/G

COVER, FRAME LH (YELLOW)

€ 53.50

2-10

4721138221163
ref: 2-10
MODEL F/G E4,E15,E18

COVER, FRAME LH (YELLOW)

€ 57.50

2-11

472113823110V
ref: 2-11
MODEL F/G

COVER, FRAME, LH

€ 53.50

2-12

472113823134S
ref: 2-12
MODEL H

COVER,FRAME LH (BLUE)

€ 53.50

2-13

472113822110V
ref: 2-13
MODEL F/G E4,E15,E18

COVER, FRAME, LH

€ 57.50

2-14

472113822134S
ref: 2-14
MODEL H E4,E15,E21,E

COVER,FRAME LH (BLUE)

€ 57.50

3-1

681313829073H
ref: 3-1
MODEL E,FOR 14C,19F,

EMBLEM

€ 0.00

3-2

681313829064D
ref: 3-2
MODEL E,FOR 163,10V

EMBLEM

€ 7.50

4-1

6813144A2060K
ref: 4-1
MODEL G,FOR 21C

EMBLEM

€ 0.00

4-2

6813144A207AG
ref: 4-2
MODEL G,FOR 14C

EMBLEM

€ 0.00

4-3

6813144A207TC
ref: 4-3
MODEL G,FOR 19F

EMBLEM

€ 0.00

4-4

6813144A2099V
ref: 4-4
MODEL G,FOR 163

EMBLEM

€ 6.00

4-5

6813144A208CD
ref: 4-5
MODEL G,FOR 10V

EMBLEM

€ 0.00

5

0932003005
ref: 5

CUSHION

€ 2.00

6

0932008018
ref: 6

CUSHION

€ 4.00

7

4712238201
ref: 7

HEAT SHIELD,FRAME COVER

€ 34.00
